TSC TTP-2410M User Manual
5
of 1
of 1 rating
79 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
13

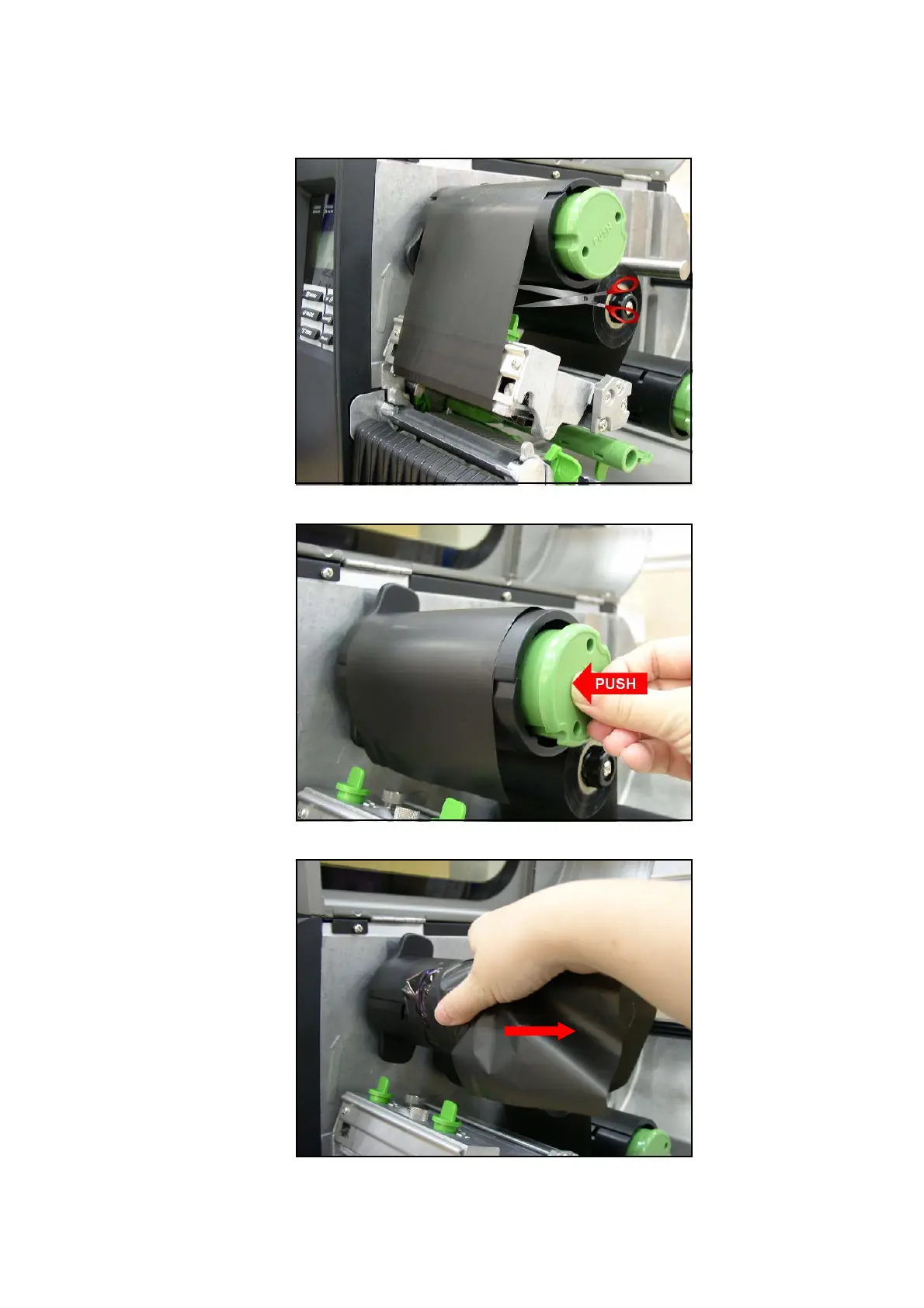

2.5.2 Remove Used Ribbon
1. Break the ribbon between ribbon guide
plate and the ribbon rewind spindle.
2. Push the ribbon release button to releas
e the ribbon on the ribbon rewind spindle.
3. Then, slide of
f the ribbon from ribbon rewind spindle.
