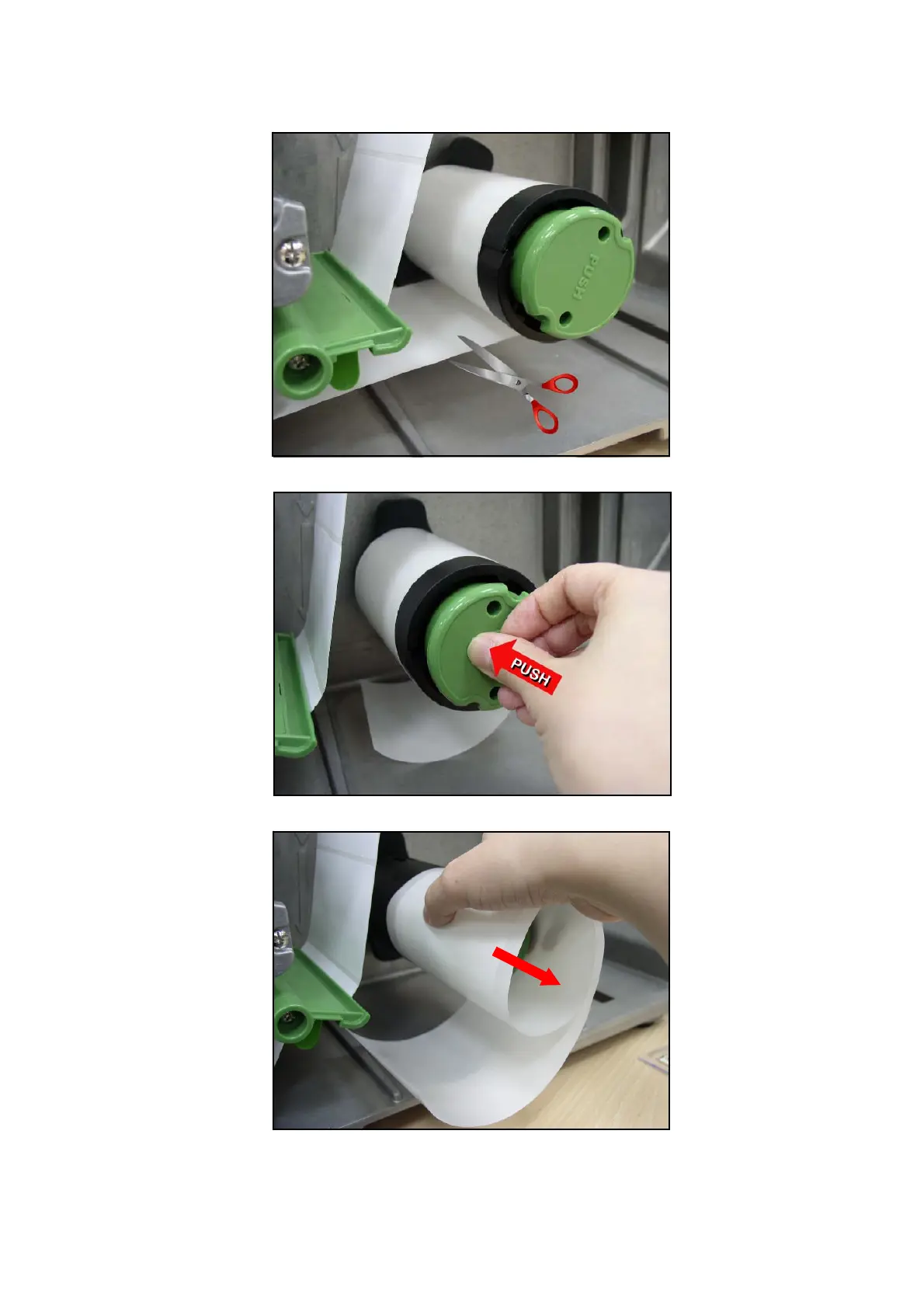

2.6.4 Remove Liner from In
ternal Rewind (Option)
1. Break the liner between peel-off ro
ller and the internal rewind spindle.
2. Push the liner release button to releas
e the liner on the inte
rnal rewind spindle.
3. Then, slide of
f the liner fr
om internal rewind spindle.
23
25
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
Product Introduction
4
Compliances
4
2 Operations Overview
6
Unpacking and Inspection
6
Printer Overview
7
Front View
7
Interior View
8
Rear View
9
Operator Controls
11
Front Panel Display
11
LED Indicators
11
Front Panel Keys
12
Setting up the Printer
12
Installation of Ribbon
13
Loading Ribbon
13
Remove Used Ribbon
16
Installation of Media
17
Loading Roll Labels
17
Loading Fan-Fold Labels
20
Loading Media in Peel-Off Mode (Option)
22
Remove Liner from Internal Rewind (Option)
24
Loading Media in Rewind Liner with Label Mode (Option)
25
Remove Labels from Internal Rewind (Option)
27
Adjustment Knob
28
Print Head Pressure Adjustment Knob
28
Print Head Burn Line Adjustment Knob
28
Using PS/2 Keyboard (Optional for TTP-246M Plus/Ttp-344M Plus Models)
30
3 Menu Function
31
Setup Menu Overview
32
Printer Setup (TSPL2)
33
Printer Setup (ZPL2)
40
Sensor
47
Serial Comm
55
Ethernet
58
File Manager
61
File List
61
Avail. Memory
61
Del. All Files
62
Diagnostics
63
Print Config
63
Dump Mode
64
Rotate Cutter
65
Language
65
Service
66
Initialization
66
Mileage Info
67
4 Diagnostic Tool
68
Start the Diagnostic Tool
68
Printer Function (Calibrate Sensor, Ethernet Setup, RTC Setup
69
5 Troubleshooting
70
Common Problems
70
Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
74
6 Maintenance
76
Revise History
78
