2.6.3 Loading Media in Peel-off Mode (Option)
1. Lift open printer right side cover.
2. Push the print head release lever to open the print head mechanism.
3. Move the label roll guard horizontally to the end of label spindle then flip down the
label roll guard.
4. Place the roll of media on the label supply spindle. Flip up the label roll guard. Move
the label roll guard horizontally to fit the width of label roll.
5. Pull label roll leading edge forward through the media guide bar, damper media
sensor and place the label leading edge onto the platen roller.
6. Adjust the label guide to fit the width of the label.
7. Using the front display panel, set the media sensor type and calibrate the selected
sensor. (Please refer to section 3.1.2)
8. Then, pull approximately 650mm of label through the front of the printer.

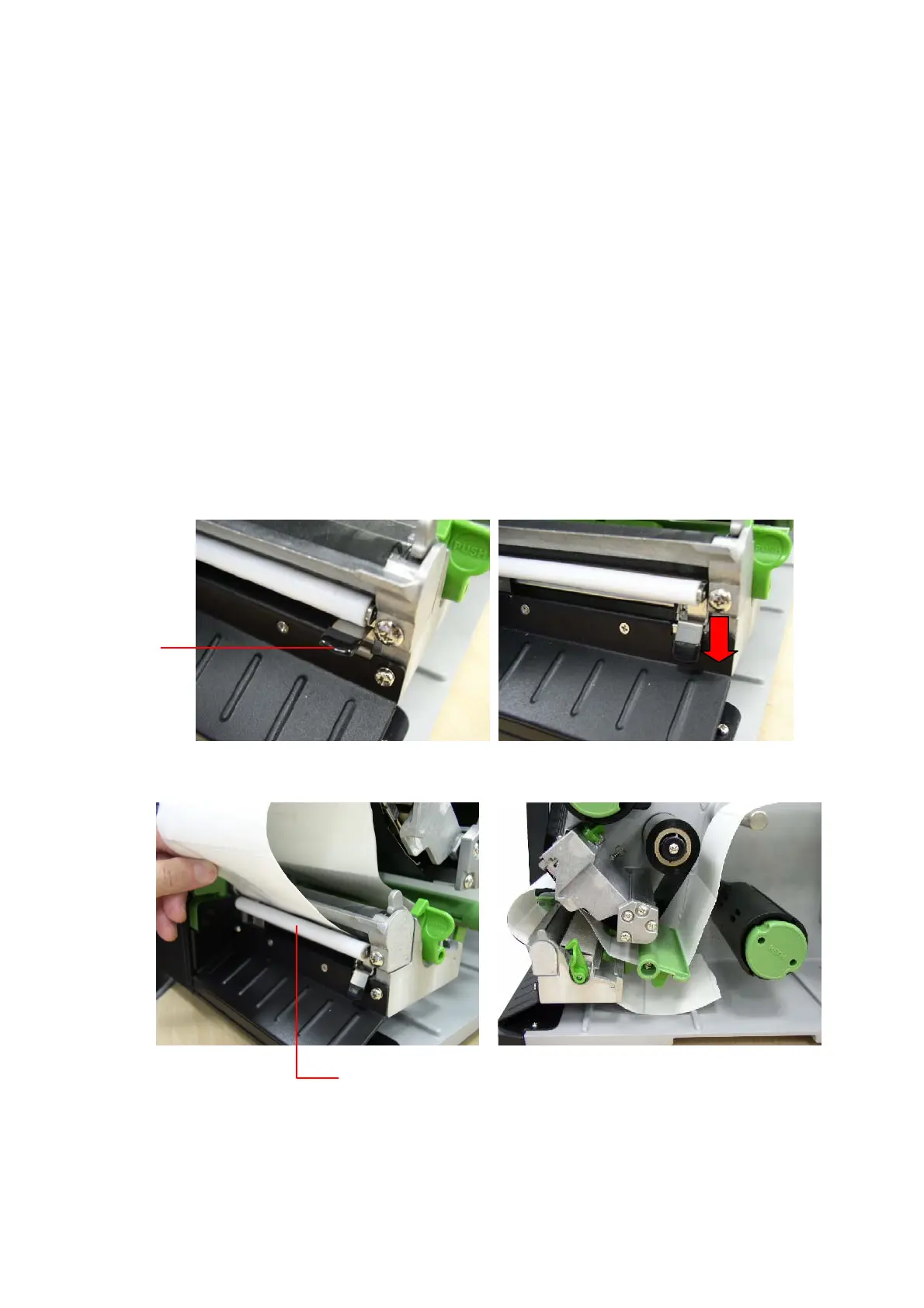

9. Push down the peel-off roller release lever.
10. Feed the label between peel-off roller and platen roller.
11. Wrap the label onto the internal rewind spindle and wind the spindle
counter-clockwise about 3~5 circles until the label is properly stretched.
Peel-off roller
Peel-off roller
release lever
