17
2.6.2 Loading Fan-fold Labels
Fan-fold media feeds through either the bottom or rear external label entrance chute.
1. Lift open printer right side cover.
2. Push the print head release lever to open the print head mechanism.
3. Insert the fan-fold media through the bottom or rear external label entrance chute.
4. Pull fan-fold label leading edge forward through the media guide bar, damper media
sensor and place the label leading edge onto the platen roller.
5. Adjust the label guide by sliding to fit the paper width.
6. Close the print head mechanism making sure the latches are engaged properly.
7. Set the media sensor type and calibrate the selected sensor. (Please refer to section
3.1.2)
Note: Please calibrate the gap/black mark sensor when changing media.

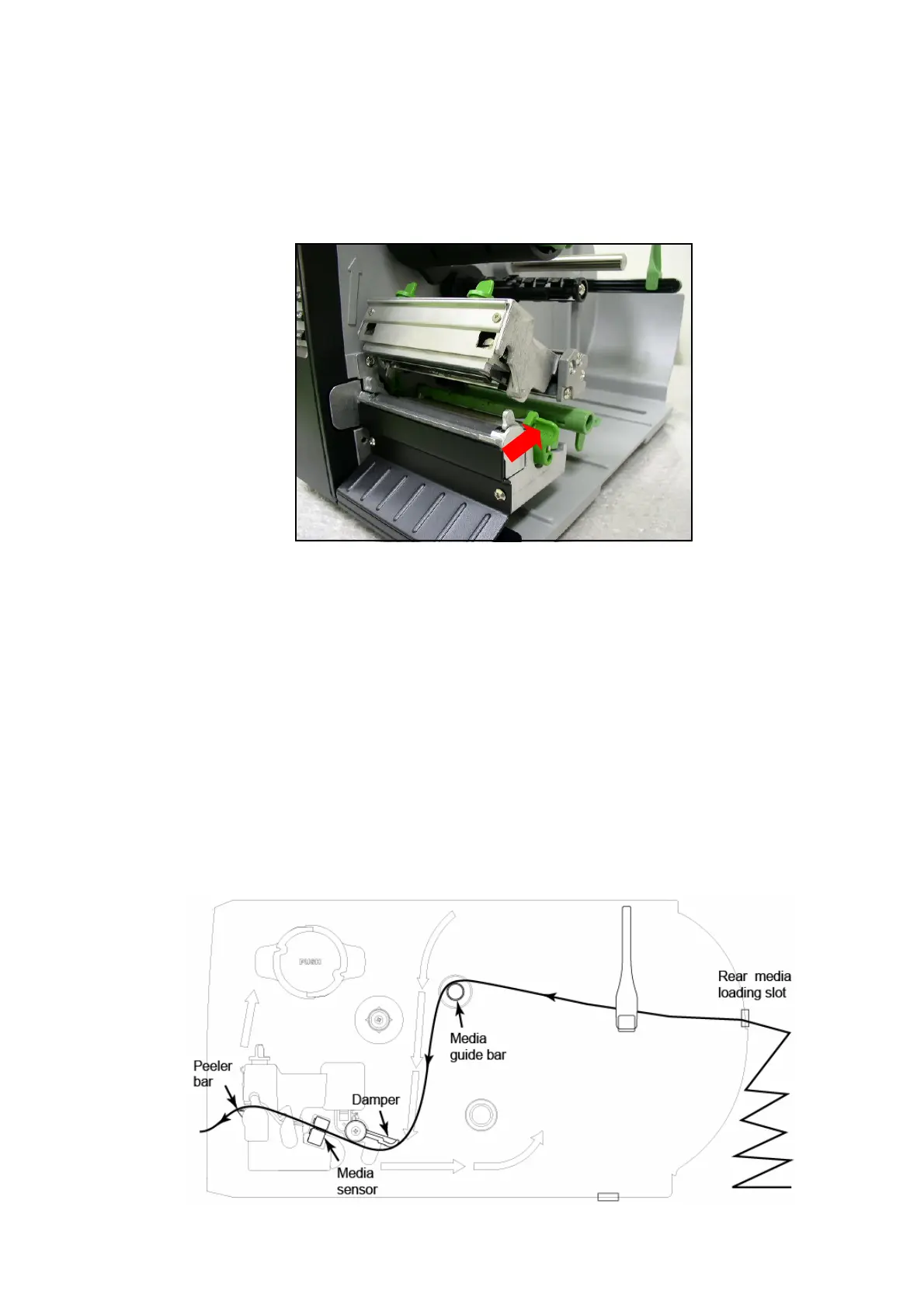

z Loading path for fan-fold labels
