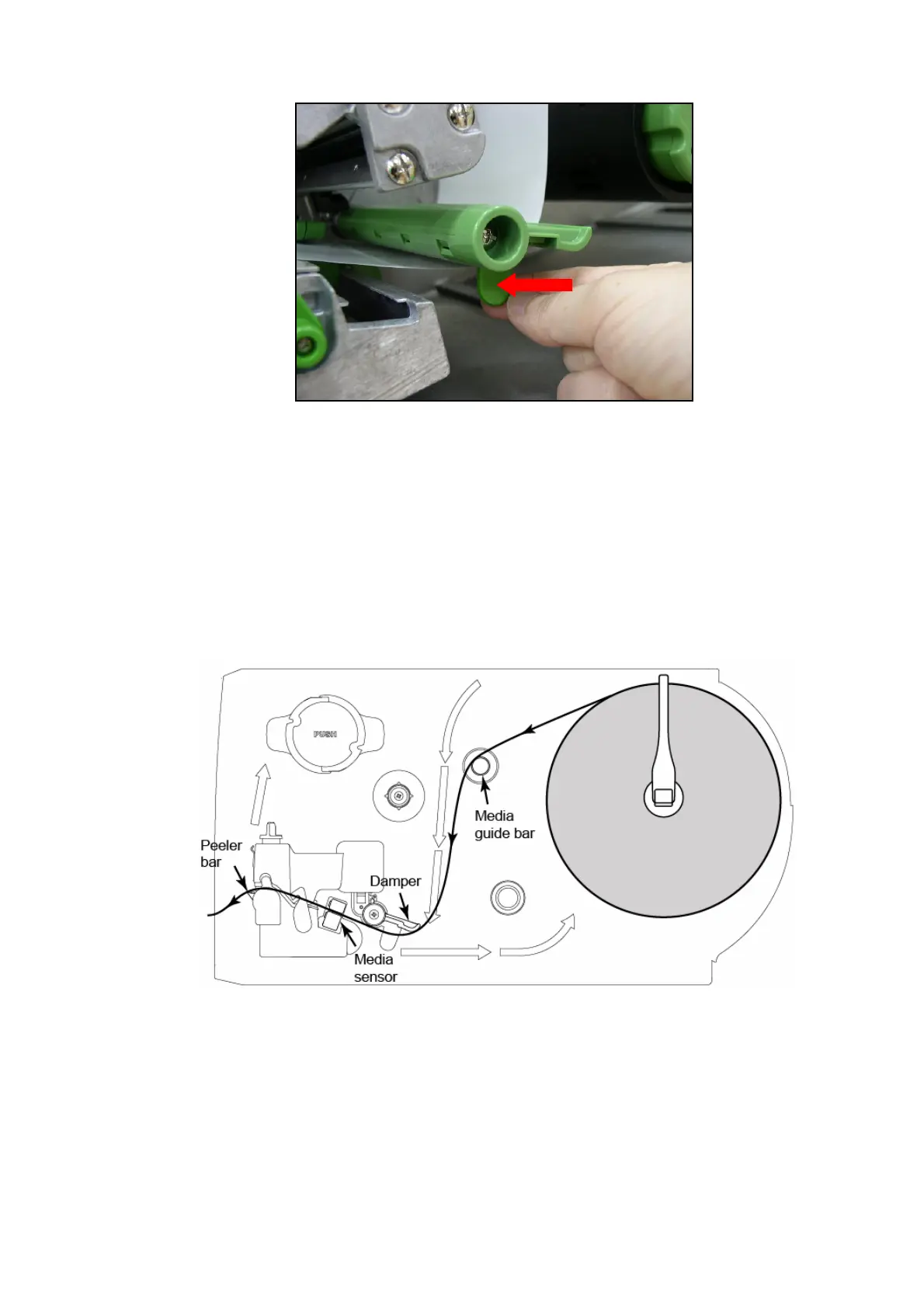

7. Close the print head mechanism making sure the latches are engaged properly
.
8. Using the front display panel, set the
medi
a sensor type and
calibrate the selected
sensor
. (Please refer to section 3.1.2)
Note:
Please calibrate the gap/black ma
rk sensor when changing media.
z
Loading p
ath for roll labels
18
20
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
Product Introduction
4
Compliances
4
2 Operations Overview
6
Unpacking and Inspection
6
Printer Overview
7
Front View
7
Interior View
8
Rear View
9
Operator Controls
11
Front Panel Display
11
LED Indicators
11
Front Panel Keys
12
Setting up the Printer
12
Installation of Ribbon
13
Loading Ribbon
13
Remove Used Ribbon
16
Installation of Media
17
Loading Roll Labels
17
Loading Fan-Fold Labels
20
Loading Media in Peel-Off Mode (Option)
22
Remove Liner from Internal Rewind (Option)
24
Loading Media in Rewind Liner with Label Mode (Option)
25
Remove Labels from Internal Rewind (Option)
27
Adjustment Knob
28
Print Head Pressure Adjustment Knob
28
Print Head Burn Line Adjustment Knob
28
Using PS/2 Keyboard (Optional for TTP-246M Plus/Ttp-344M Plus Models)
30
3 Menu Function
31
Setup Menu Overview
32
Printer Setup (TSPL2)
33
Printer Setup (ZPL2)
40
Sensor
47
Serial Comm
55
Ethernet
58
File Manager
61
File List
61
Avail. Memory
61
Del. All Files
62
Diagnostics
63
Print Config
63
Dump Mode
64
Rotate Cutter
65
Language
65
Service
66
Initialization
66
Mileage Info
67
4 Diagnostic Tool
68
Start the Diagnostic Tool
68
Printer Function (Calibrate Sensor, Ethernet Setup, RTC Setup
69
5 Troubleshooting
70
Common Problems
70
Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
74
6 Maintenance
76
Revise History
78
Other manuals for TSC TTP-2410M
Service Manual
2 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TSC TTP-2410M and is the answer not in the manual?
Ask a question
TSC TTP-2410M Specifications
General
Brand
TSC
Model
TTP-2410M
Category
Barcode Reader
Language
English
Related product manuals
TSC TTP-2410MT Series
87 pages
TSC TTP 246M
33 pages
TSC TTP-245 Plus
50 pages
TSC TTP-244 Plus
29 pages
TSC TTP-244M Pro
35 pages
TSC TTP-246M Pro
2 pages
TSC TTP 243 Plus
56 pages
TSC TTP-243 Series
29 pages
TSC TTP-243 Pro Series
39 pages
TSC Prontronix TTP-244CE
36 pages
TSC TTP-268M
85 pages
TSC TTP-2610MT Series
68 pages
