TSC TTP-2410M User Manual

5

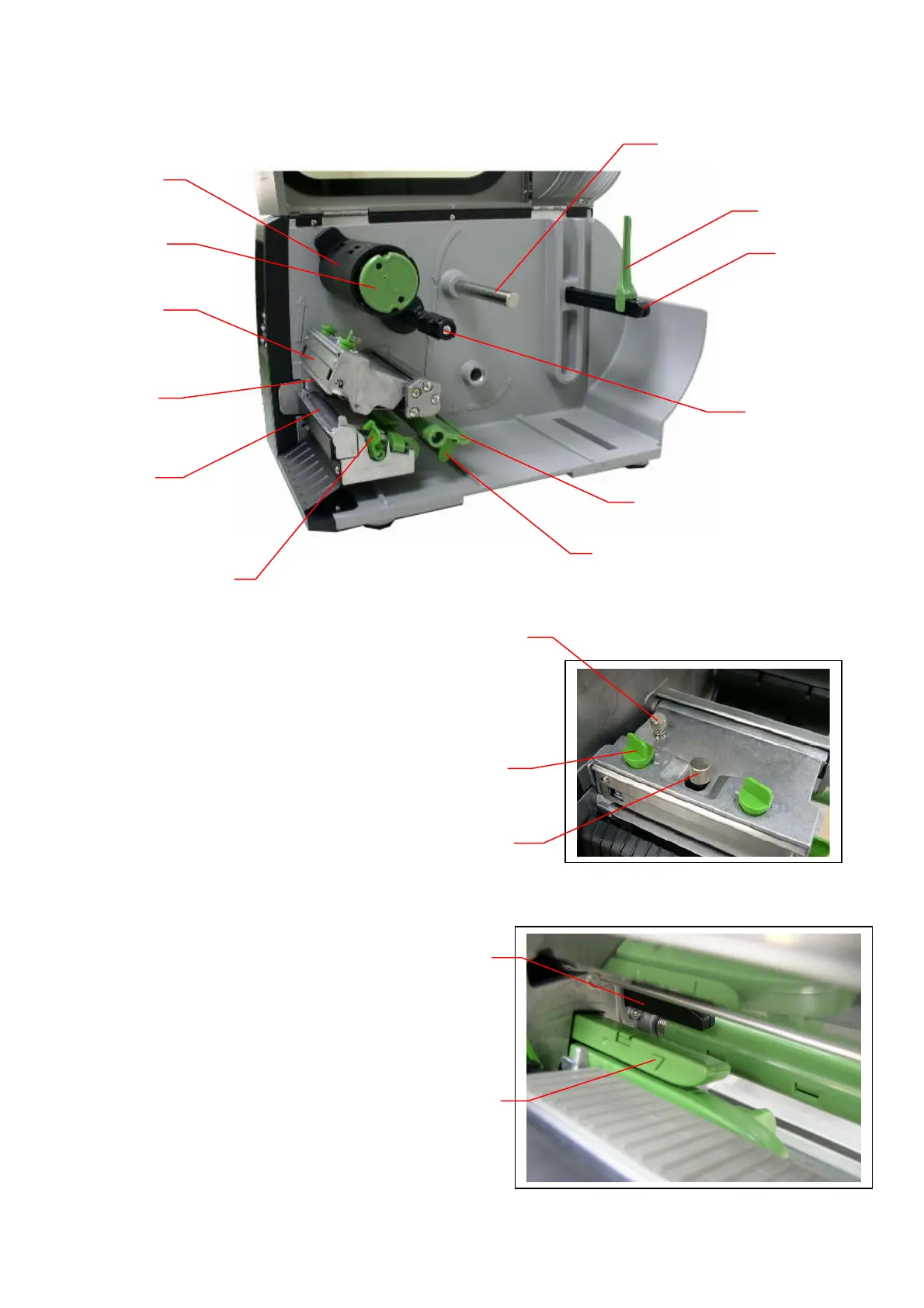

2.2.2 Interior view
1. Ribbon rewind spindle
2. Ribbon release button
3. Ribbon guide plate
4. Print head
5. Platen roller
6. Print head release lever
7. Media guide bar
8. Label roll guard
9. Label supply spindle
10. Ribbon supply spindle
11. Damper
12. Label guide
13. Z axis mechanism adjustment knob
14. Print head pressure adjustment knob
15. Print head secure screw
16. Ribbon sensor
17. Media sensor
5
8
7
10
9
6
11
4
12
3
1
2
13
14
15
17
16
