22
2.6.5 Loading Media in Rewind Liner with Label Mode (Option)
This mode can rewind the media including liner and label on the rewind spindle.
1. Lift open printer right side cover.

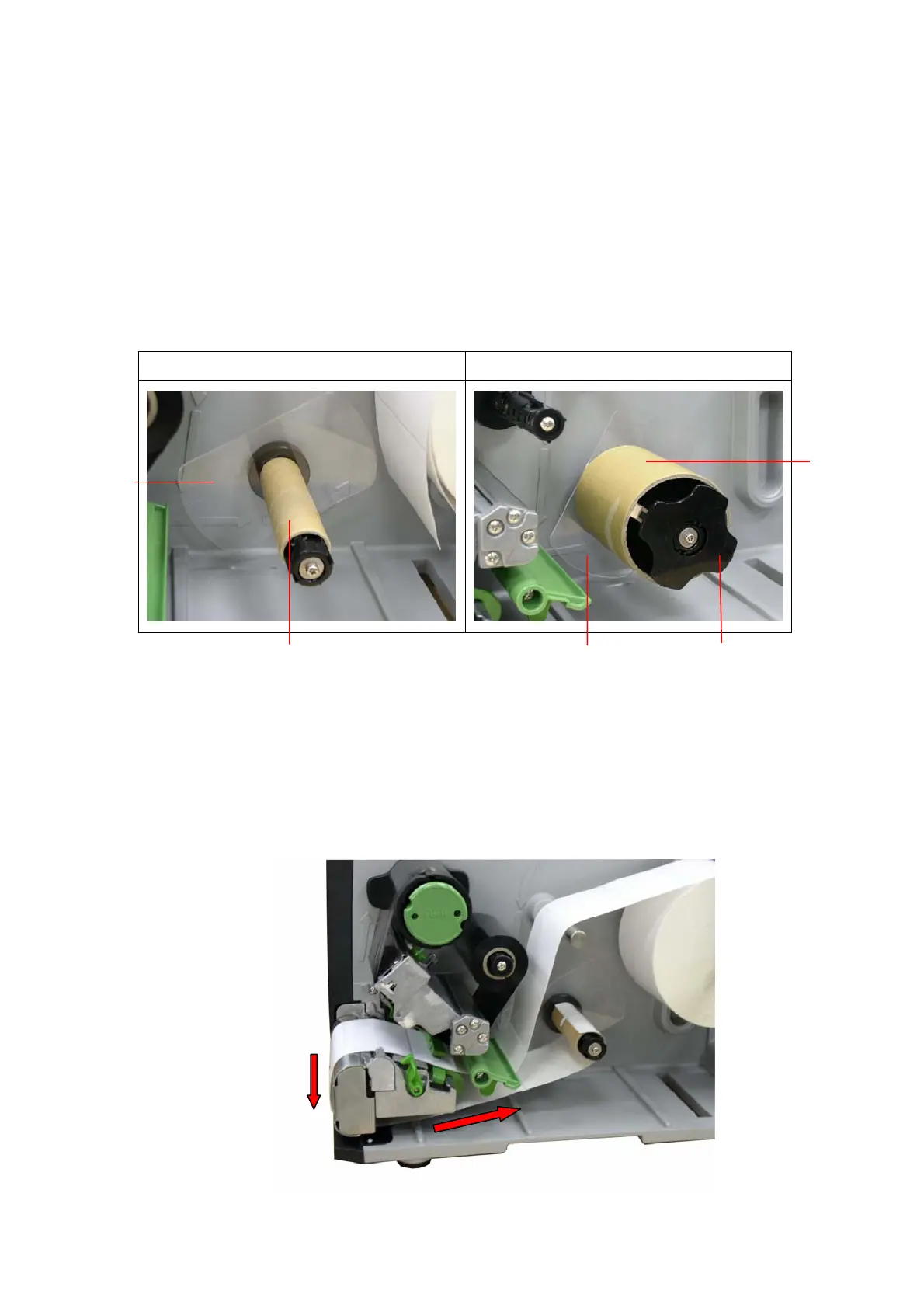

2. Insert the supply holder guide and paper core into the internal rewind for 1” core
label roll.
Insert the supply holder guide, 3” label core adapter and paper core into the internal
rewind for 3” core label roll.
1” core label roll 3” core label roll
3. Insert media into the printer label spindle. Pull label roll leading edge forward
through the media guide bar, damper media sensor and place the label leading
edge onto the platen roller. (Please refer to section 2.6.1)
4. Then, pull approximately 650mm of label through the label redirect front panel.
5. Wrap the label onto the internal rewind spindle and stick the label onto the paper
core.
Paper core
Supply holder
guide
Supply holder guide
Paper
core
3” label core adapter
To Next Page
