14
2.6 Installation of Media
2.6.1 Loading Roll Labels

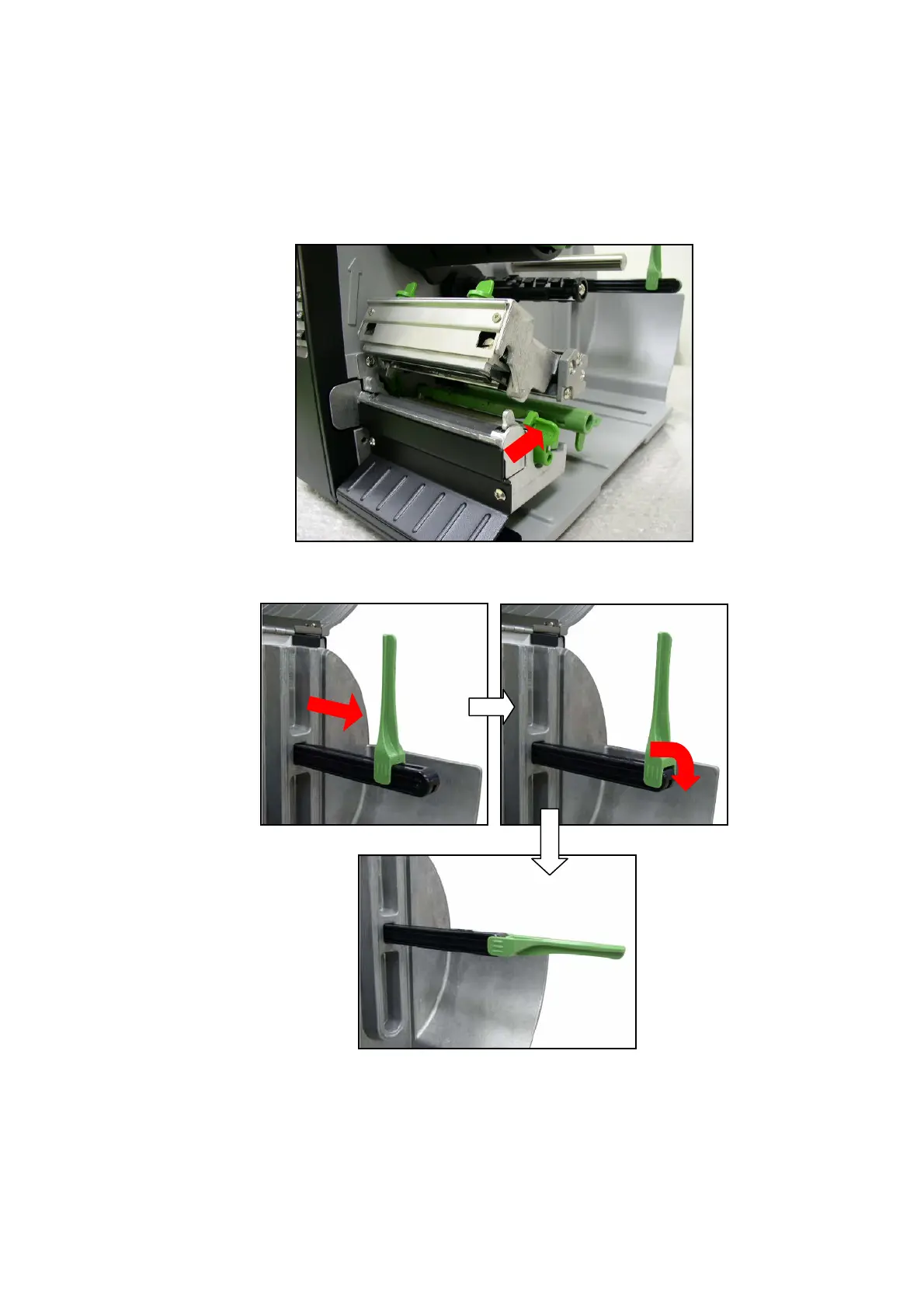

1. Lift open printer right side cover.
2. Push the print head release lever to open the print head mechanism.
3. Move the label roll guard horizontally to the end of label spindle then flip down the
label roll guard.
4. Place the roll of media on the label supply spindle. Flip up the label roll guard. Move
the label roll guard horizontally to gently fit the width of label roll.
