TSC TTP-243 Series Service Manual

30
TTP-243 Bar Code Printer
Service Manua
l
6. Release the cable tie and remove the peel-off sensor connector.

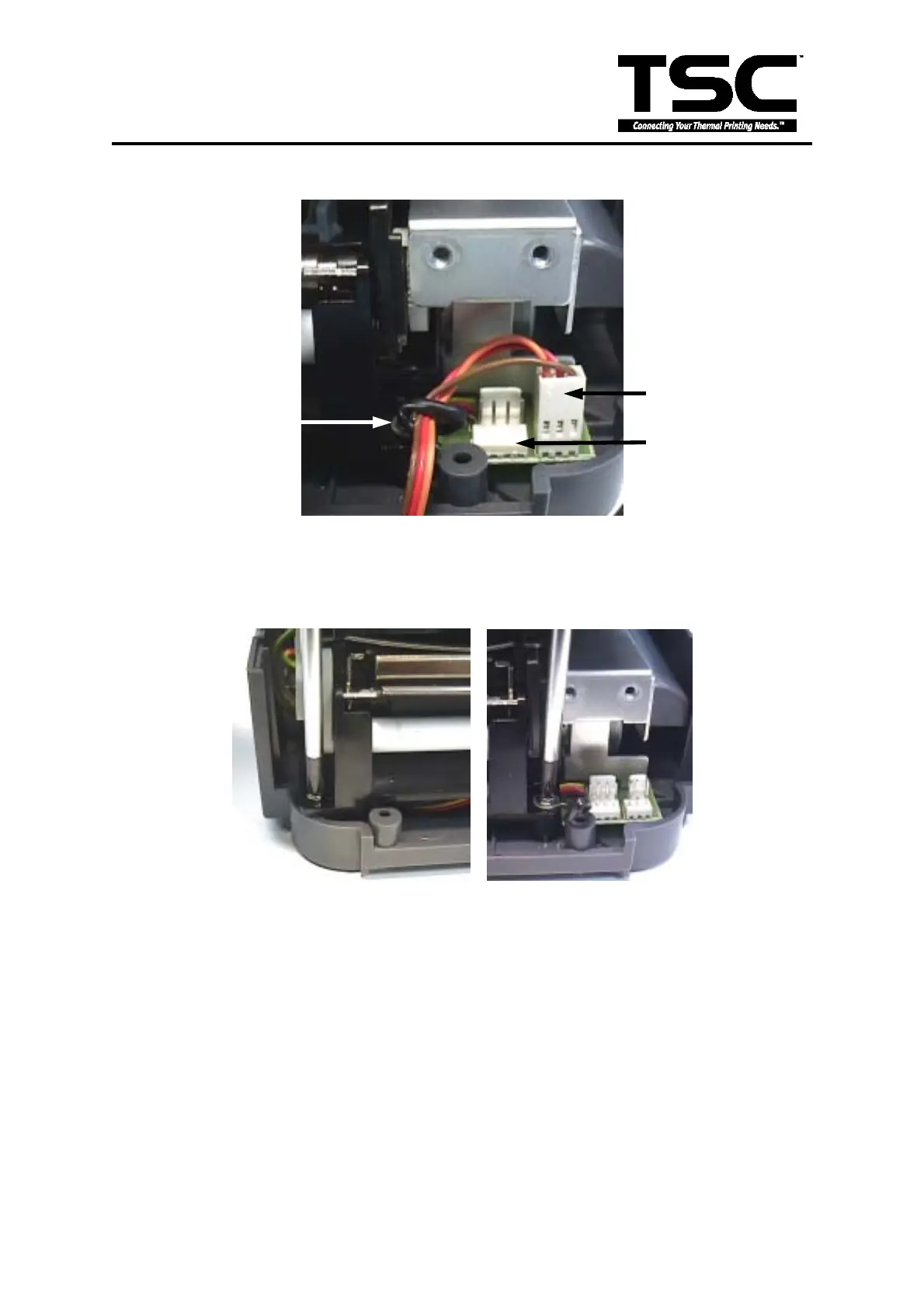

Fig. 3.16 Cable tie and peel-off sensor connector
7. Remove the screws on the lower left and lower right corners of main mechanism.
Fig. 3.17 Remove the screws in the lower left, lower
right corners of the main mechanism.
Cable Tie
Peel-Off Sensor
Connector
Cutter Connector
