TSC TTP-243 Series Service Manual

29
TTP-243 Bar Code Printer
Service Manua
l
3.13 Mainboard Replacement
1. Turn off the printer power.
2. Remove the power cord and RS-232 and/or parallel port cable.
3. Open the top cover of the printer.
4. Remove the printer front panel.

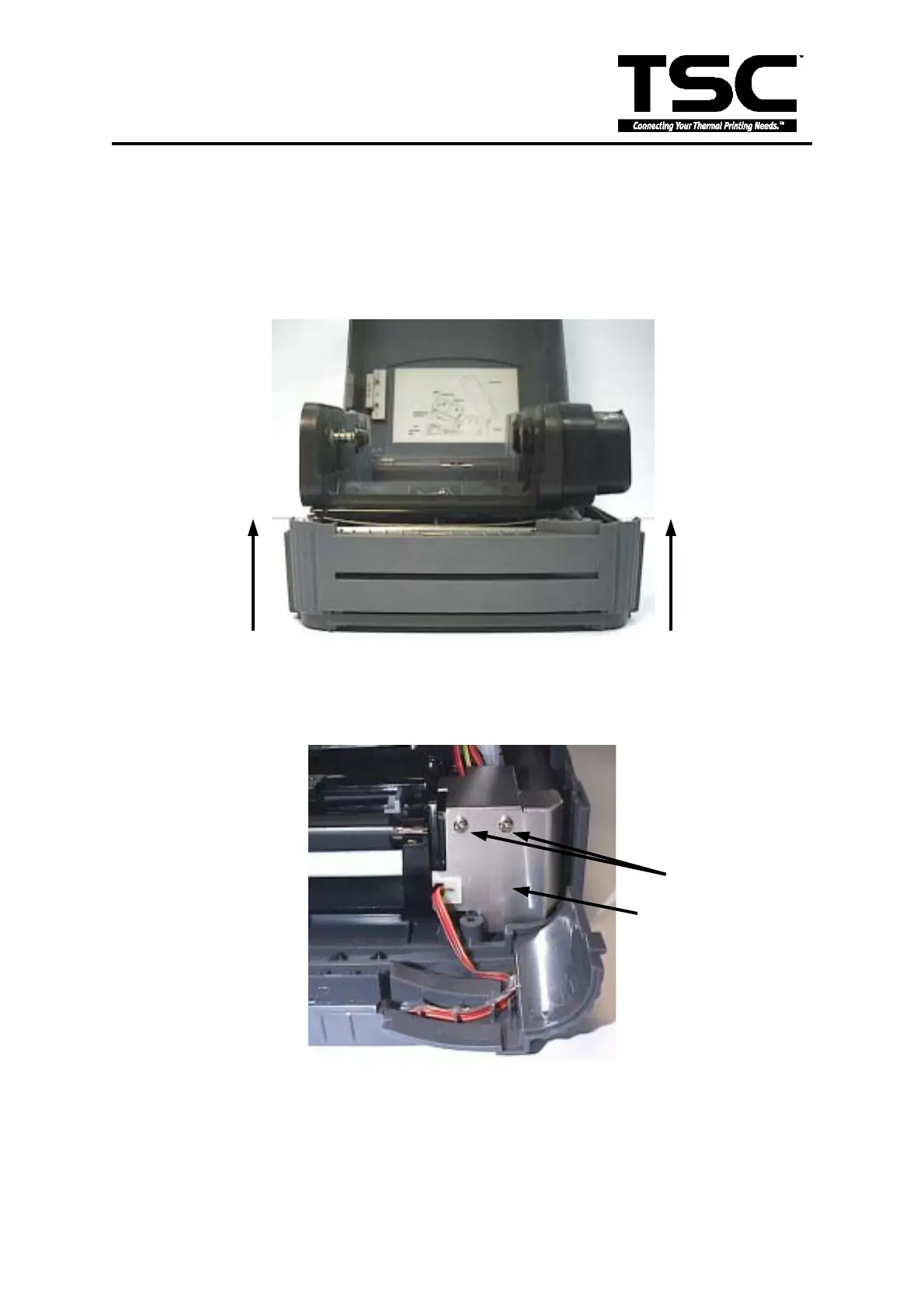

Fig. 3.14 Remove the front cover
in the direction of the arrows
5. Remove the two screws and the metal cover.
Fig. 3.15 Remove the screws
and metal cover
Screws
Metal Cover
