41
TTP-243 Bar Code Printer
Service Manua
l
6. Reassemble the removed parts in the reverse order of removal.

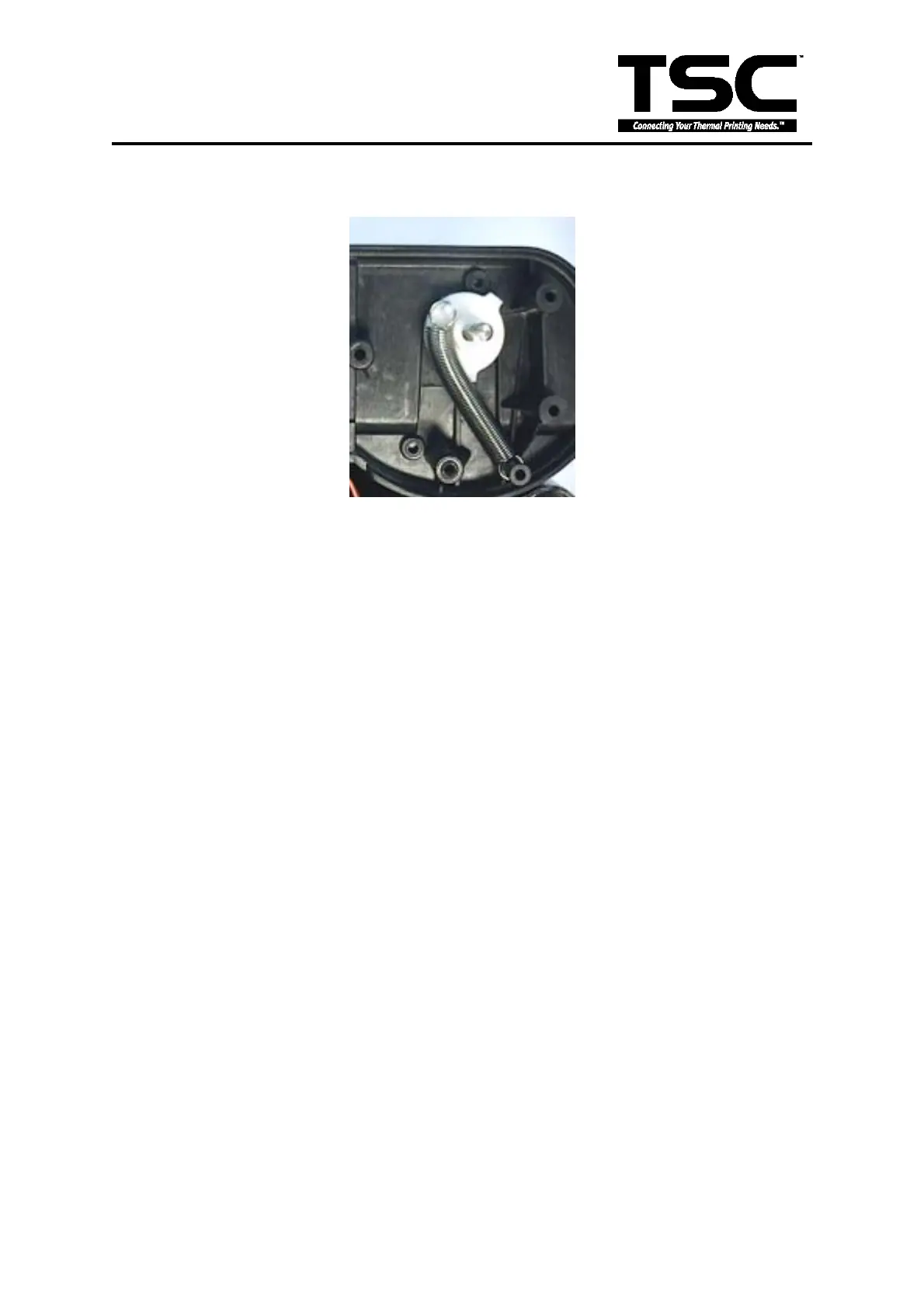

Fig. 4.8 Front View of the
Ribbon Supply Spindle
