TSC TTP-243 Series Service Manual

48
TTP-243 Bar Code Printer
Service Manua
l

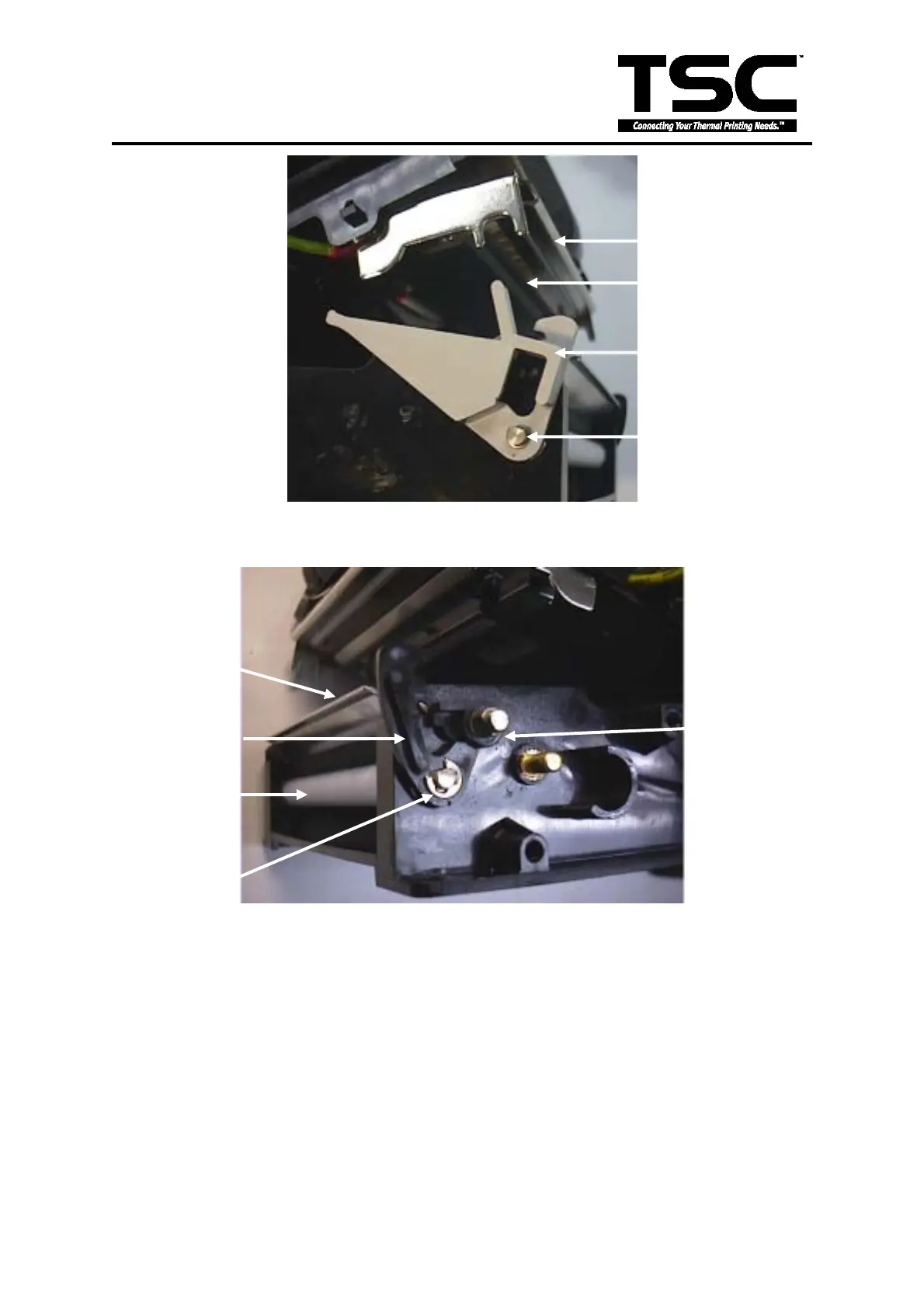

Fig. 4.16 Printer carriage release lever and E ring
Fig. 4.17 Printer carriage release lever arm and E ring
19. Remove the teflon tube and stripper rod. (Fig. 4.18)
20. Remove the E ring, the right side and left side platen bushes. (Fig. 4.19)
21. Remove the stripper bar. (Fig. 4.17)
Printer Carriage
Release Lever
E Ring
Thermal Head
Bracket
E Ring
Teflon Tube
Printer Carriage
Release Leve
r
Arm
Stripper Bar
Platen Bush
(Right Side)
