TSC TTP-244 Plus Service Manual

11
TTP-244 Plus Bar Code
Printer Service Manual
3. ELECTRONICS

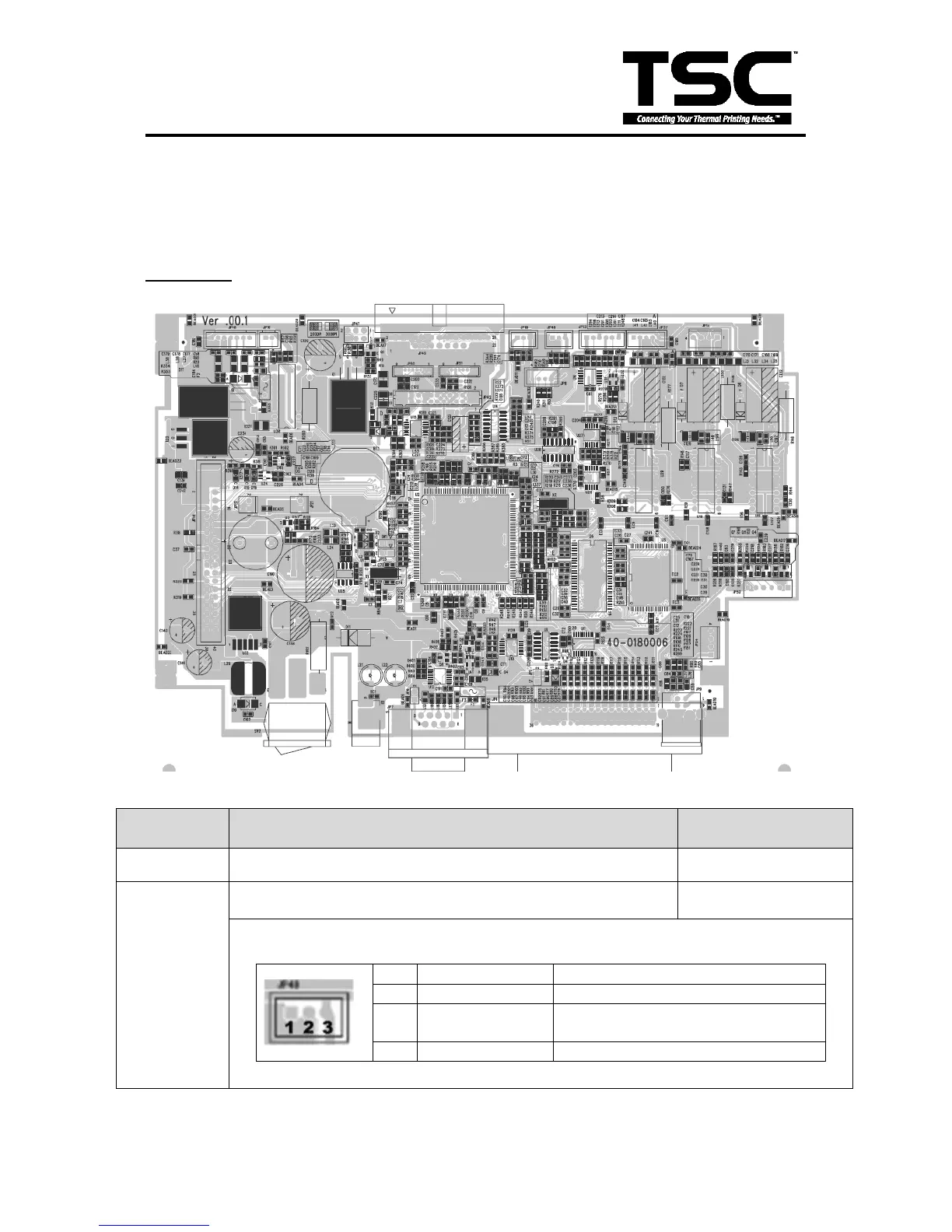

3.1 Summary of Board Connectors
Main board
Connector
Description
Remark
1
Ribbon sensor connector
JP18
2
Black mark sensor connector
JP46
Pin
Description
Voltage
1
Power
5V
2
Black mark
sensor receiver
No paper or black mark : 3.1~3.2V
Detect paper: 0~0.3V
3
GND
0V
1
2
3
9
6
7
12
8
4
10
13
5
14
11

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
