TTP-244 Plus Bar Code
Printer Service Manual

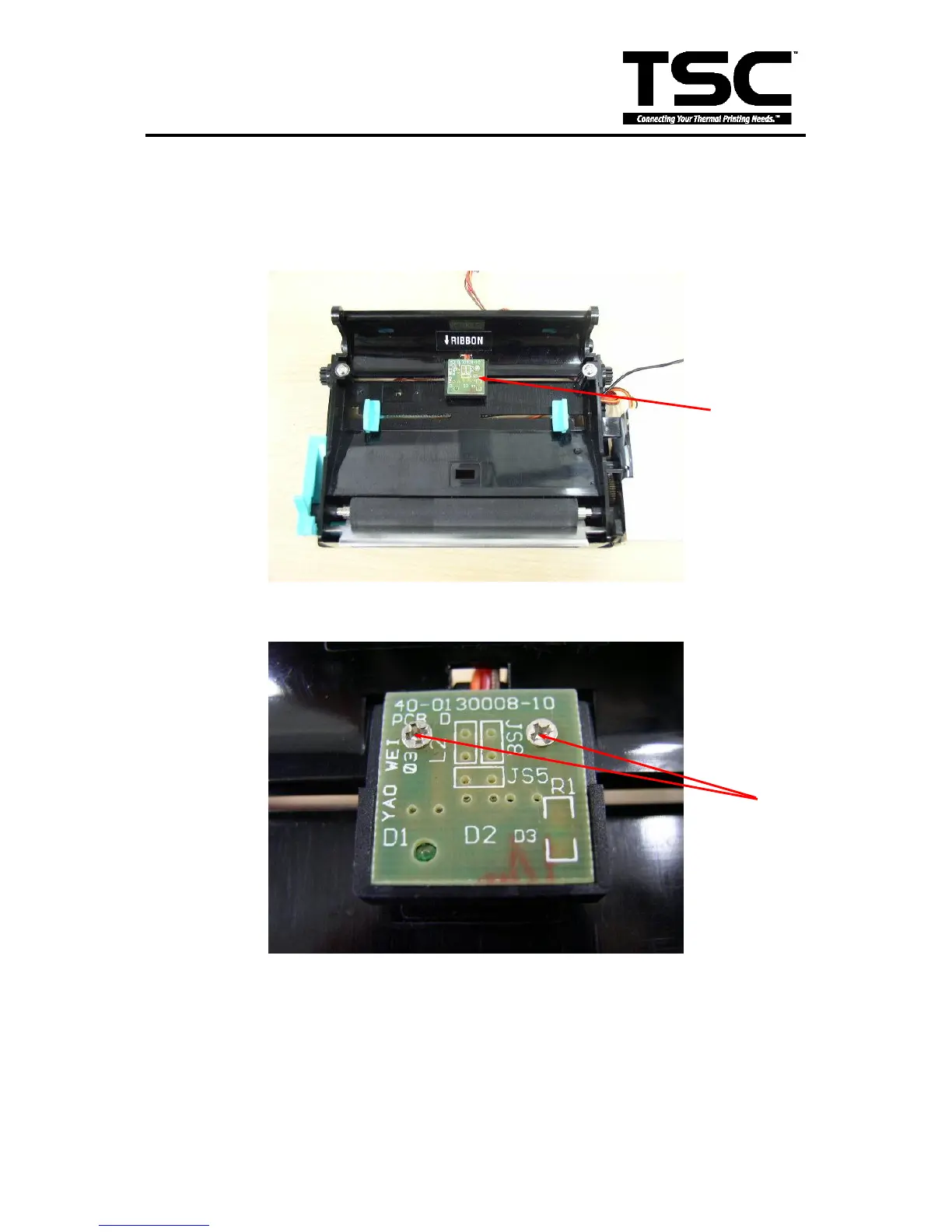

4.9 Ribbon Sensor (Transmitter) / Gap Sensor (Transmitter) Replacement
1. Please follow the steps in Section 4.8 to separate the upper mechanism from the lower
mechanism.
2. The ribbon sensor (transmitter) is located in the center of the lower mechanism.
3. Remove the two flat tap screws
4. Remove the cable tie and sensor PCB.
5. Replace with a new PCB. Reassemble the removed parts in the reverse order of removal.
Ribbon sensor
(transmitter) PCB
Screws

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
