TSC TTP-244 Plus Service Manual

28
TTP-244 Plus Bar Code
Printer Service Manual

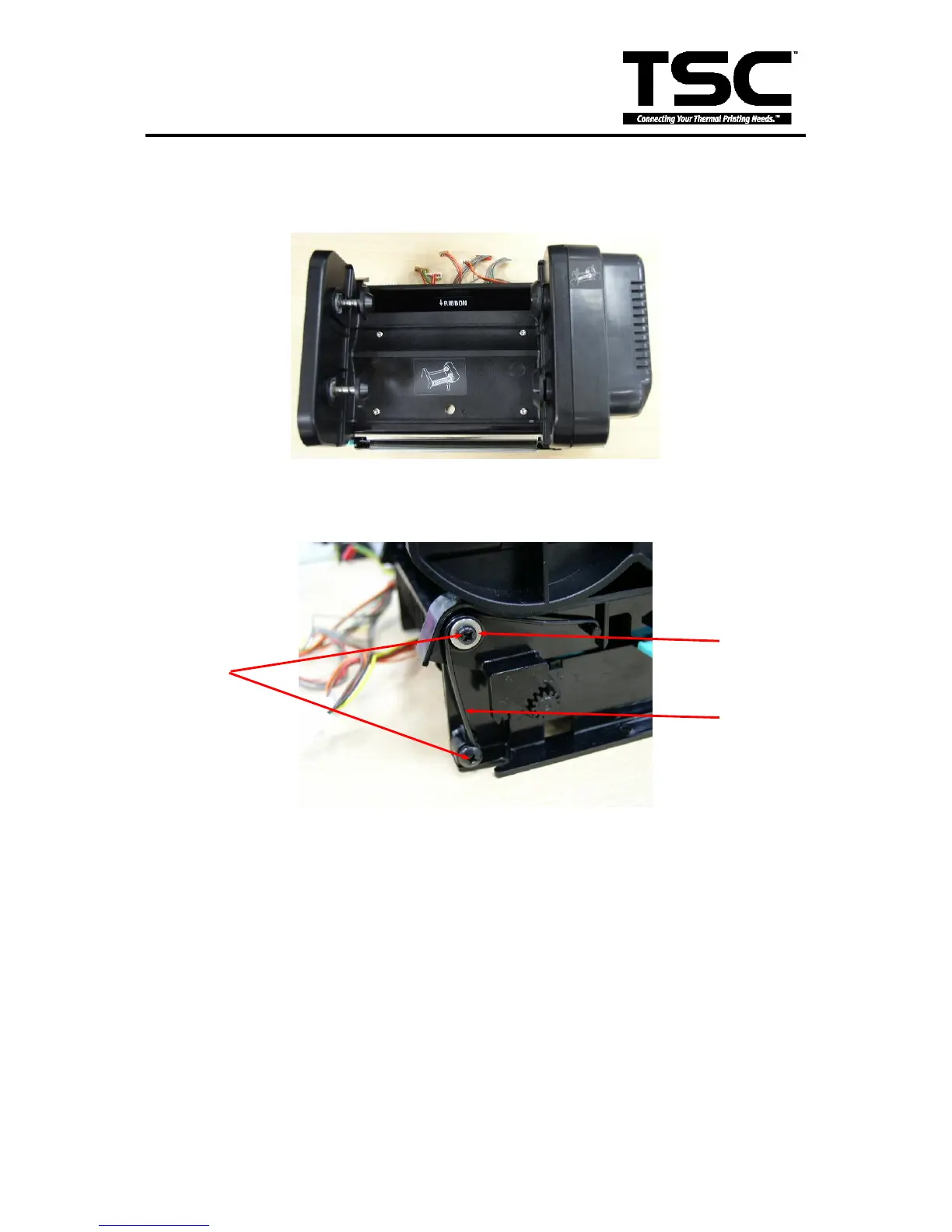

4.8 Ribbon Sensor (Receiver) Replacement
1. Follow the instructions in Section 4.2 to take out the mechanism.
2. Open the print carriage.
3. Remove the screws, springs and spring bushing on both sides of the mechanism.
Note: The left side spring and the right side spring are different in shape. The right
side spring has a straight end, when the left side spring has an end that is
curved 90 degrees.
4. The main mechanism is divided into upper mechanism and lower mechanism.
5. And ribbon sensor (receiver) is located in the upper mechanism. Remove the screws on the
ribbon sensor cover.
Screws
Spring bushing
Spring

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
