31
TTP-244 Plus Bar Code
Printer Service Manual

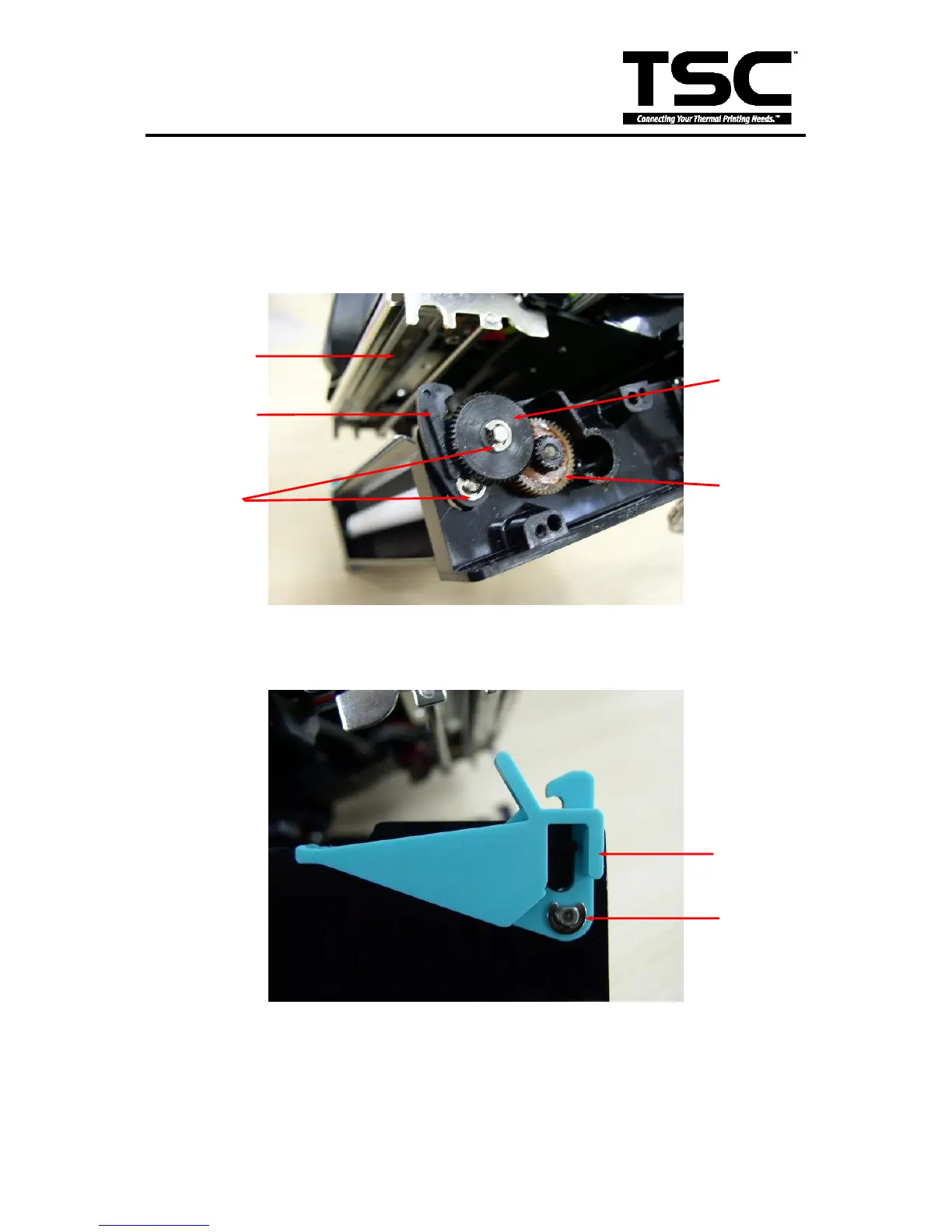

4.10 Platen Replacement
1. Follow the instructions in Section 4.6 to remove the stepping motor fixture and stepping motor.
2. Remove the E-ring and two gears.
3. Remove the E ring and the printer carriage release lever arm.
4. Remove the E-ring and the printer carriage release lever on the left side of the mechanism.
Printer Carriage
Release Lever
E-ring
Thermal Head
Gear #1
E-ring
Gear #2
Printer Carriage
Release lever arm
