TTP-244 Plus Bar Code
Printer Service Manual

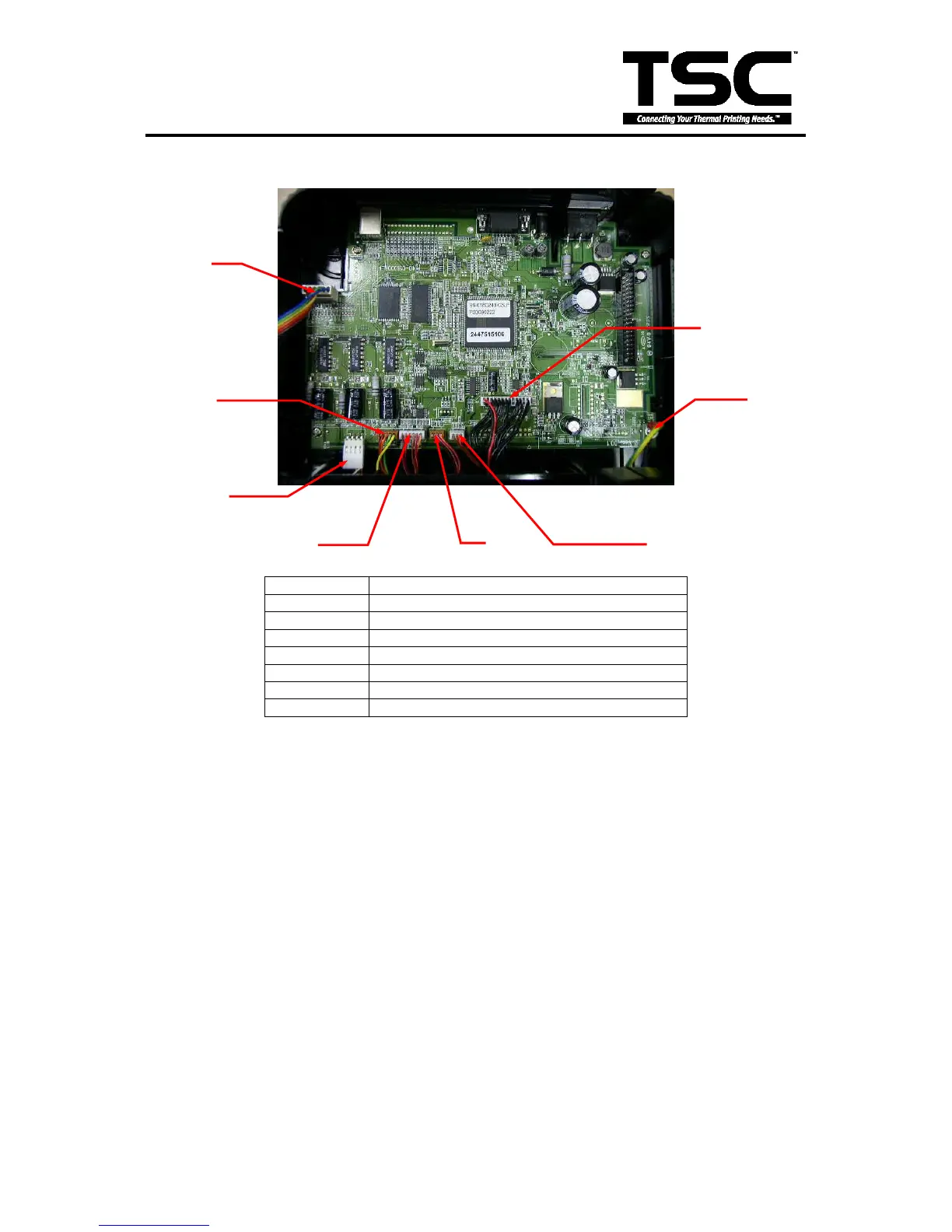

7. Remove all connectors on the main board.
Remark
Description
JP52
Push button connector
JP37
Ribbon encoder sensor & DC motor connector
JP14
Stepping motor connector
JP53
Gap sensor connector
JP46
BLine sensor connector
JP18
Ribbon sensor connector
JP42
Print head connector
8. Remove the screw of ground wire on the main board.
9. Remove the rest three screws on the mainboard.
10. Replace the mainboard.
11. Reassemble the internal label roll mount in the reverse procedures of the removal.
Ground Wire
JP52
JP14
JP53
JP37
JP46
JP18
JP42

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
