TSC TTP-244 Plus

22
TTP-244 Plus Bar Code
Printer Service Manual
8. Resplace the print head.
9. Reassemble the removed parts in the reverse order of removal.
Note:
1. Tidy up the cable so that it does not protrude or interfere with the ribbon.
2. Do not touch the elements of the print head.
3. Do not disassemble the print head.

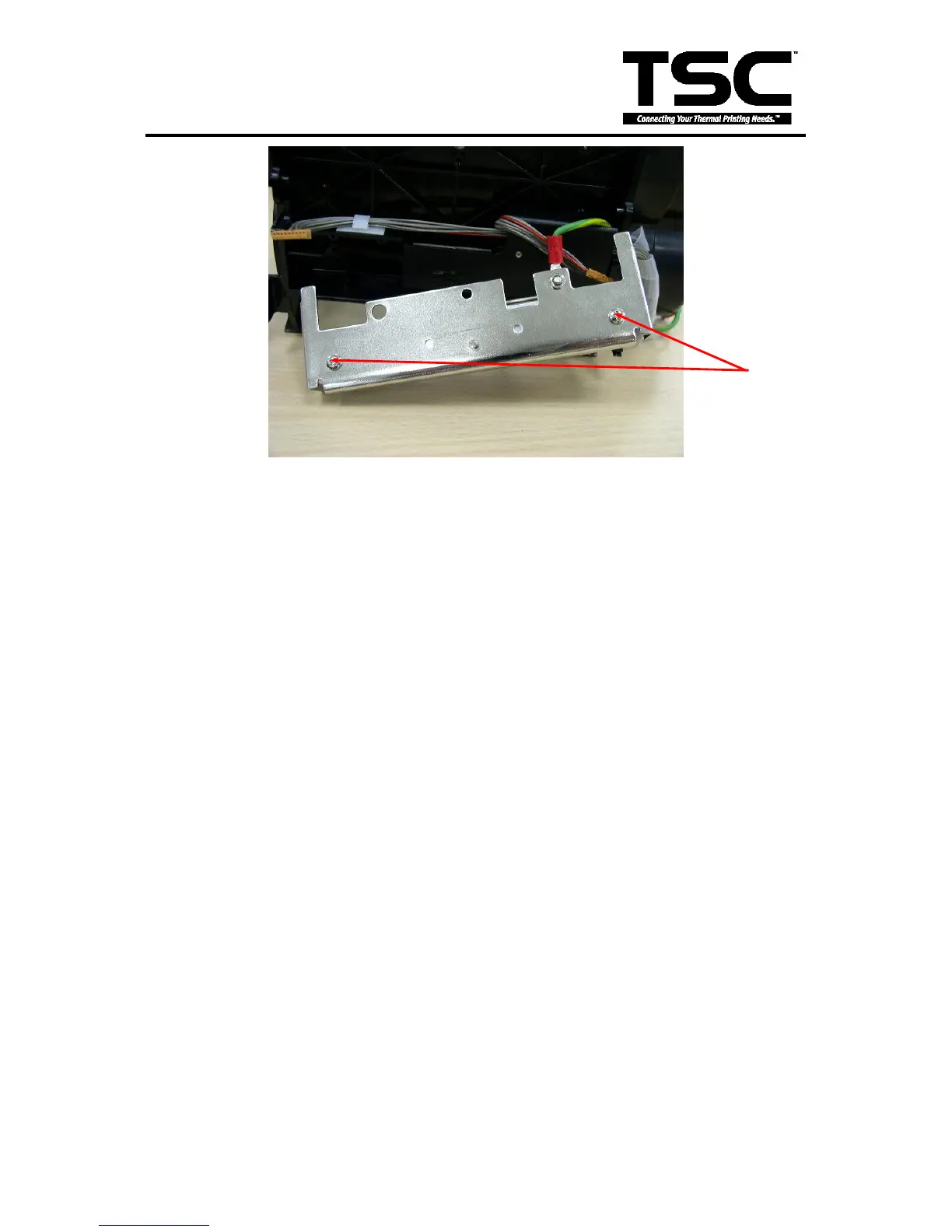

Screws
