TSC TTP-345 Programming Manual

TSC AUTO ID Technology Co., Ltd. 44 Copyright 2013 All Rights Reserved.
 BOX
Description
This command draws rectangles on the label.
Syntax
BOX x,y,x_end,y_end,line thickness[,radius]
Parameter
Description
x
Specify x-coordinate of upper left corner (in dots)
y
Specify y-coordinate of upper left corner (in dots)
x_end
Specify x-coordinate of lower right corner (in dots)
y_end
Specify y-coordinate of lower right corner (in dots)
line thickness
Line thickness (in dots)
radius
Optional. Specify the round corner. Default is 0.
*Since V5.28 EZ
Note:
 200 DPI: 1 mm = 8 dots
300 DPI: 1 mm = 12 dots
 Recommended max. thickness of box is 12 mm at 4” width. Thickness of box larger than 12
mm may damage the power supply and affect the print quality. Max. print ratio is different
for each printer model. Desktop and industrial printer print ratio is limited to 20% and 30%
respectively.
Example
Sample code
SIZE 4,1.1
CLS
BOX 60,60,610,210,4
BOX 80,80,590,190,4
BOX 100,100,570,170,4,20
BOX 120,120,550,150,4,20
PRINT 1

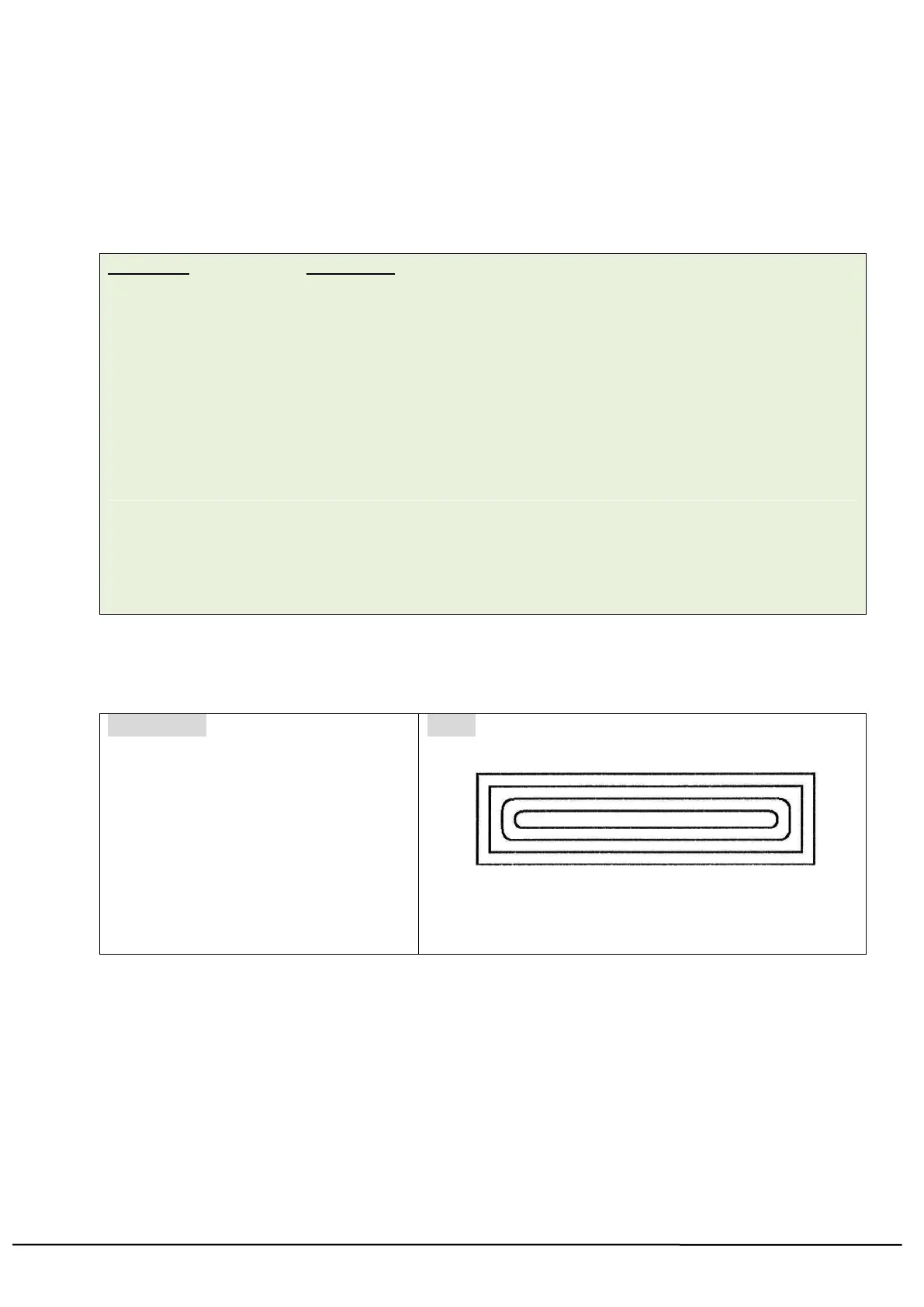

Result
See Also
BAR

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
