OVEN SCHEMATIC AND WIRE HARNESSES
63
Item Description Item Part Number
Relay (K1 - Filament) 101273
Relay (K2 - Anode) 101273
Relay (K3 - Monitor) 101273
Relay (K6 - Voltage) 101272
Relay (K7 - All Cooling Fans) 101273
For more detail, see pages A-14 and A-15
in the Appendix.
Oven Schematic and Wire Harnesses
This section provides an overall wiring schematic for the oven. It also provides detailed drawings of each wire harness with labeled connectors.
The following drawings are provided:
- Relay Schematic (below)
- Oven Schematic (page 64)
- Heater (page 65)
- Cooling Fans (page 65)
- High Voltage Microwave Circuit 1 and 2 (page 66)
- Low Voltage (page 66)
- Line Voltage (pages 67-68)

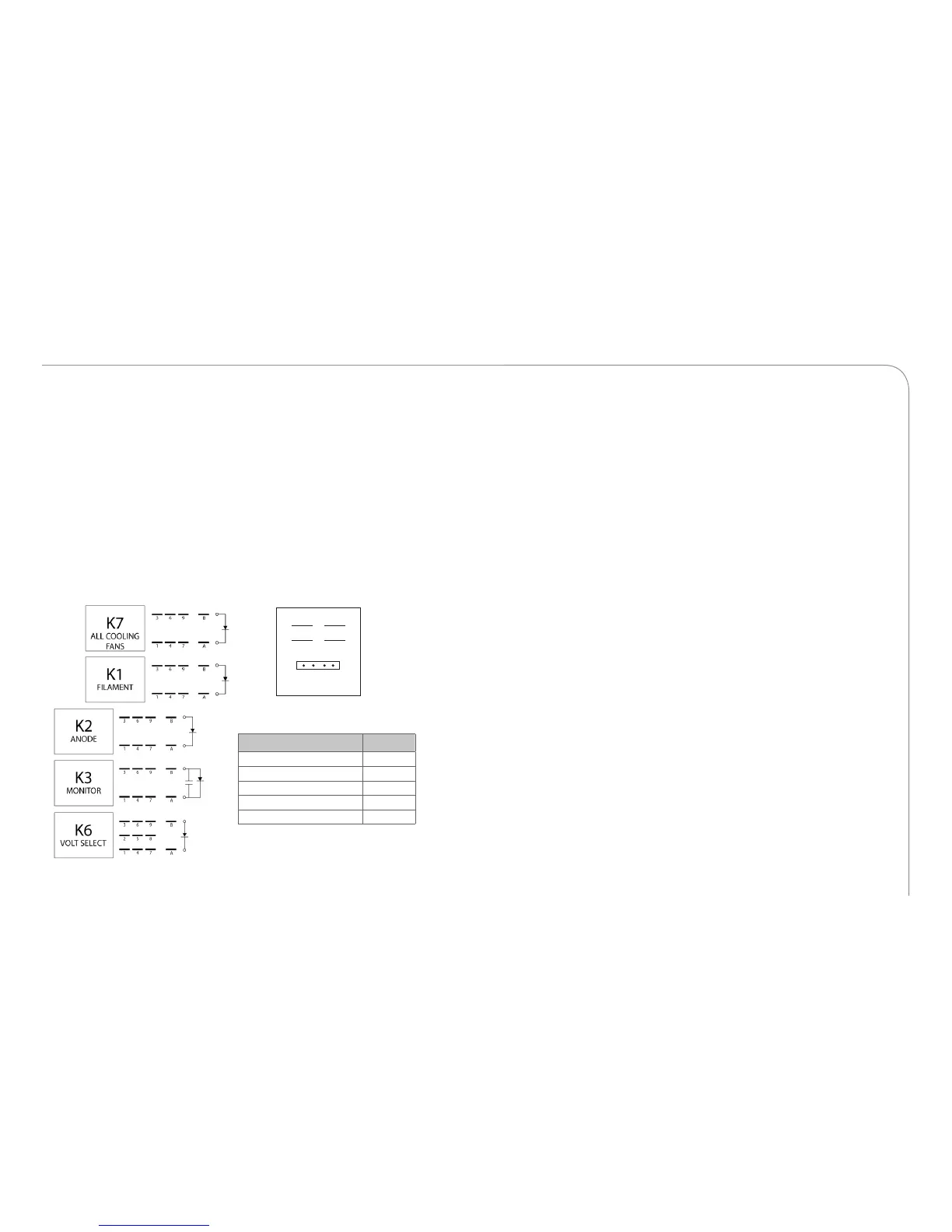

Relay Schematic
1
A
A2 B1
A1 B2
+ +
- -
B
2 3 4
K4 K5
To Next Page
