TurboChef HIGH H BATCH 2 Service Manual

THE CONTROL SYSTEM
39
Ref # Part Description Part Number Hardware Description Hardware #
5 Clamp, Thermostat NGC-1152 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688
6
Control Board, Standard Kit
(USA and Intl)
Control Board, Dual Temp Kit
(USA and Intl)
HHB-3213-X
HHB-3222-X
Screw, 6-32 x 3/8, PPH M/S, Sems, Lock Wshr
Standoff, #6-32 X 1/2
102911 (qty 4)
101952 (qty 4)
7 EMI Filter 100539 Nut, Keps Hex, #6-32, Ext Tooth, Cres 102961 (qty 2)
8 Power Supply, 24VDC 101211 Screw, 6-32 x 3/8, PPH M/S, Sems, Lock Wshr 102911 (qty 3)
9 Relay, Two Pole 101273 Screw, 6-32 x 3/8, PPH M/S, Sems, Lock Wshr 102911 (qty 2)
10
Relay, Solid State, Dual
40-Amp, Kit
NGC-3005 Screw, 6-32 x 3/8, PPH M/S, Sems, Lock Wshr 102911 (qty 2)
11
Software, Control, EPROM,
HHB (Domestic Oven)
Software, Control, EPROM,
HHB (Dual Temp)
HHB-8243-1
HHB-8243-2
N/A N/A
12 Sound Device, Alternate NGC-3083 N/A N/A
13
Thermocouple (Cook Cavity),
Ungrounded, Assembly
HHB-8170 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 2)
14
Thermocouple, Electrical
Compartment
700-1199 N/A N/A
15
Thermostat (Cooling Fan), Snap
Disk, N.O. Close on Rise 120
º
F
102086 Screw, #6-32 x 1/2, PPH, Drill Point, Zinc 101687 (qty 2)
N/A Harness, HV, Fuses-Limit HHB-8308 N/A N/A
N/A Harness, HV, Fuses-SSR-Hx HHB-8310 N/A N/A
N/A Harness, Low V, Main HHB-8311 N/A N/A
N/A Harness, HV, Main HHB-8314 N/A N/A
N/A Harness, HV, Limit-Hx HHB-8315 N/A N/A

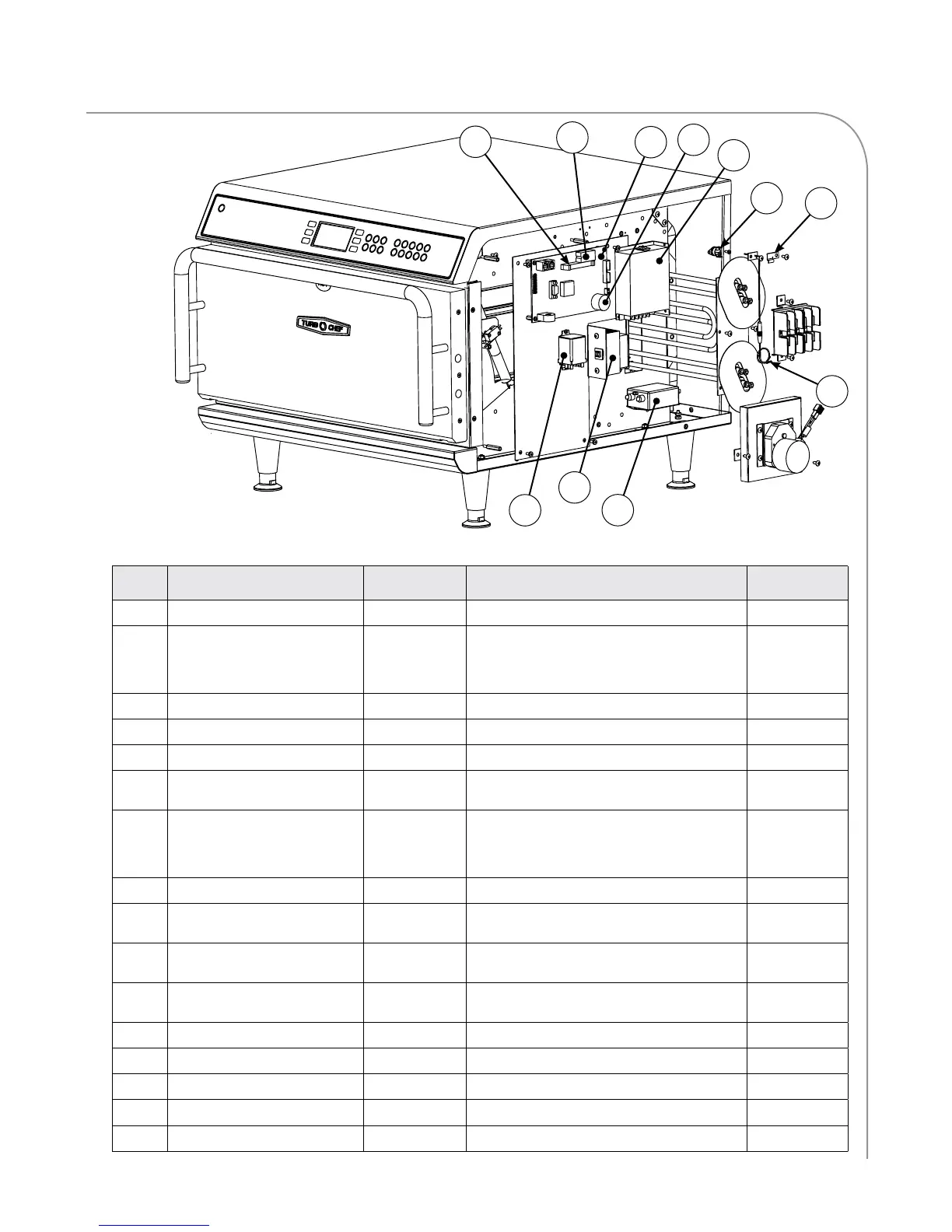

Figure 32: Control System Components - Right Side
6
7
8
9
13
11
15
10
5
14
12
