TurboChef HIGH H BATCH 2 Service Manual

44 THE CONVECTION SYSTEM

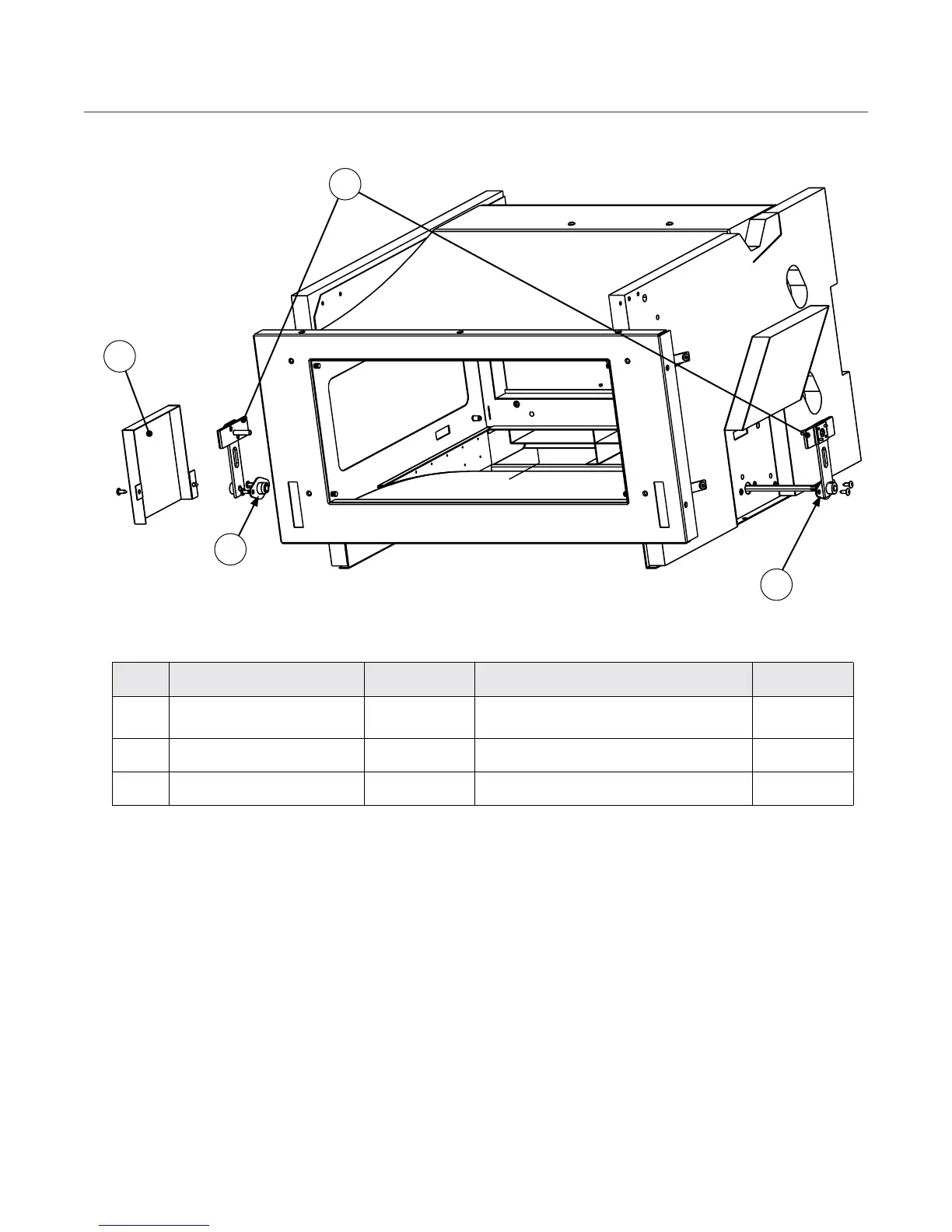

Figure 38: Convection System Components - Swing Arms and Link Bar
17
Ref # Part Description Part Number Hardware Description Hardware #
16
Bushing, Swing Arm, 5/16
Flange Mount (qty 2)
100152 N/A N/A
17 Cover, Swing Arm, No Mount HHB-8297 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 2)
18 Swing Arms, Kit HHB-3227 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 4)
16
16
18
