TurboChef HIGH H BATCH 2 Service Manual

THE CONVECTION SYSTEM
43
Ref # Part Description Part Number Hardware Description Hardware #
1
Jetplate, Bottom, Standard
Jetplate, Bottom, High Coverage
Jetplate, Bottom, Pizza
Jetplate, Bottom, Super Coverage
HHB-8013-1
HHB-8155-1
HHB-8156-1
HHB-8212-1
Screw, Thumb, 8-32 x 3/8, SS
Washer, Split Lock, #10
101748
102350
2
Jetplate, Top, Standard
Jetplate, Top, High Coverage
Jetplate, Top, Pizza
Jetplate, Top, Super Coverage
HHB-8013-2
HHB-8155-2
HHB-8156-2
HHB-8212-2
N/A N/A
3 Rail Stud (x4), Kit HHB-3210 N/A N/A
4
Support Rails, Left and Right,
Bottom Kit
HHB-3214 N/A N/A
5 Support Rail, Top (qty 2) HHB-8117 N/A N/A
6
Oven Rack, Standard
Oven Rack, Double-Sided
HHB-8104
HHB-8118
N/A N/A
7 Blower Motor HHB-8106 Nut, 1/4-20, Serrated Hex Flange, Zinc 100906 (qty 6)
8 Blower Motor Cover NGC-1081 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 8)
9 Blower Motor Speed Controller CON-7013 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 4)
10 Bell Crank, Motor Mount HHB-8296 N/A N/A
11 Cap, Silicone, Ultra-Bake (qty 4) 100795 N/A N/A
12 Cover, Swing Arm, with Mount HHB-8293 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 2)
13 Heater Kit HHB-3216
Screw, #8 x 3/8 Phil. Mod. Truss B 410 SS
Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS
101682 (qty 2)
101688 (qty 4)
14 Rack Motor, Kit HHB-3231* Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 4)
15 Shield, Heater Insulation (qty 2) i5-9216 N/A N/A
* HHB-3231 kit includes item 13.

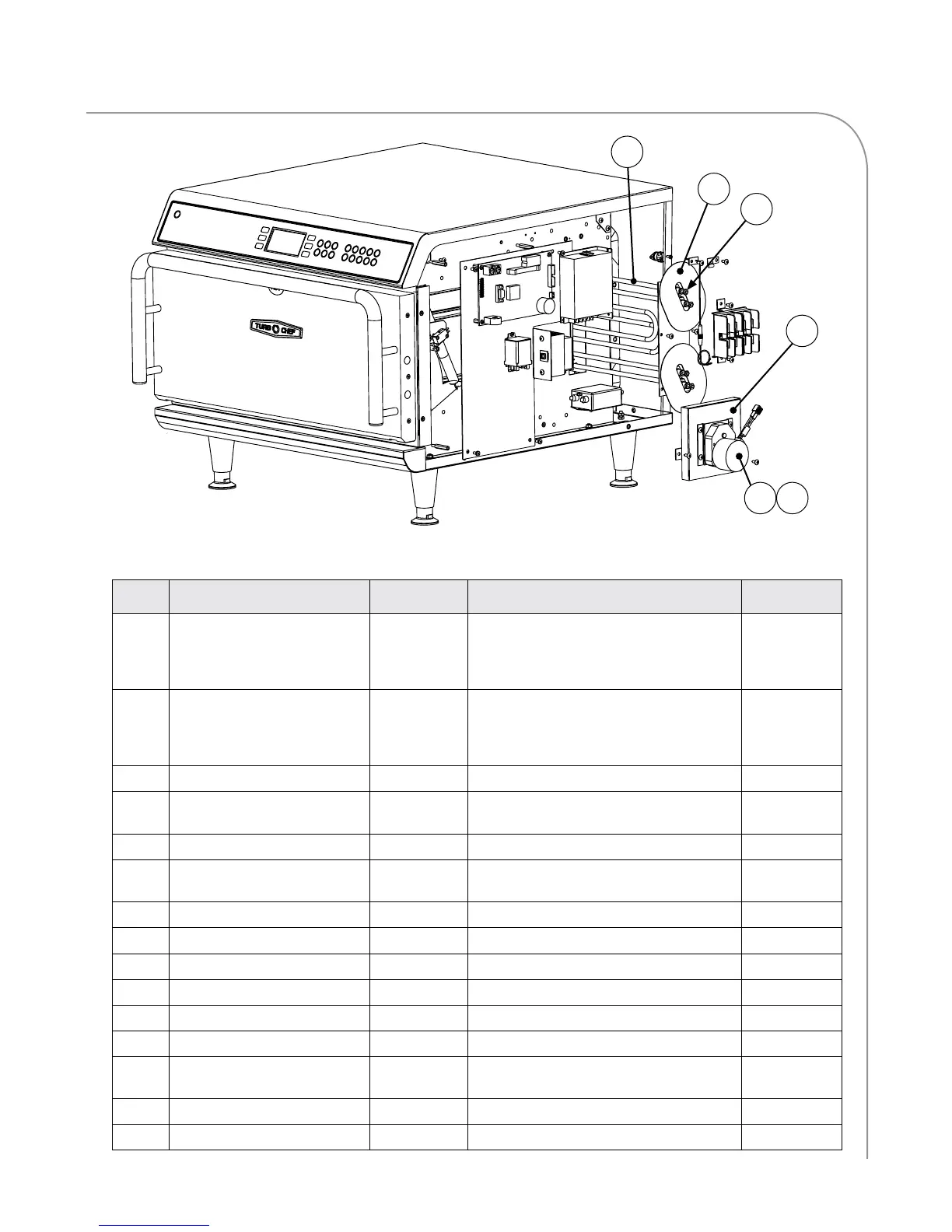

Figure 37: Convection System Components - Right Side
12
14
10
15
11
13
