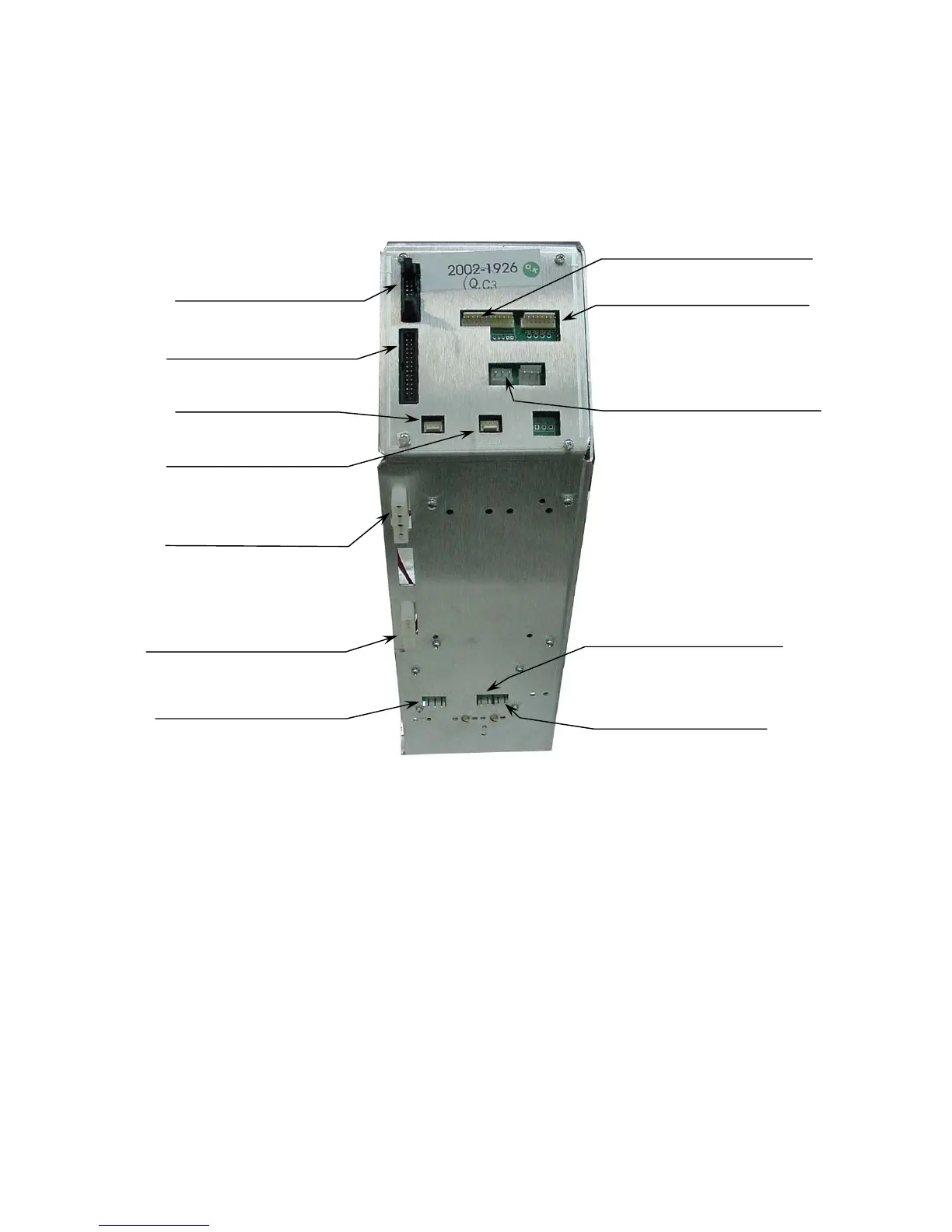

EXTERNAL CONNECTION OF THE 2540EHS AUTOCLAVES
ELECTRONICS BOX
Valves & Solenoids drivers
Digital Input & Electrodes
Chamber temperature sensor
Vacuum Pump AC Control
Water Pump AC Control
PC Communication Port
Test Points Connector
Jacket Pressure sensor
Chamber Pressure sensor
Pressure switch & Low Float of
Vacuum Pump Reservoir
Heater Elements AC Control
Power Inlet 220VAC/60Hz
