Tuttnauer 2540 EHS - Suggested Site Drain Drawing

7

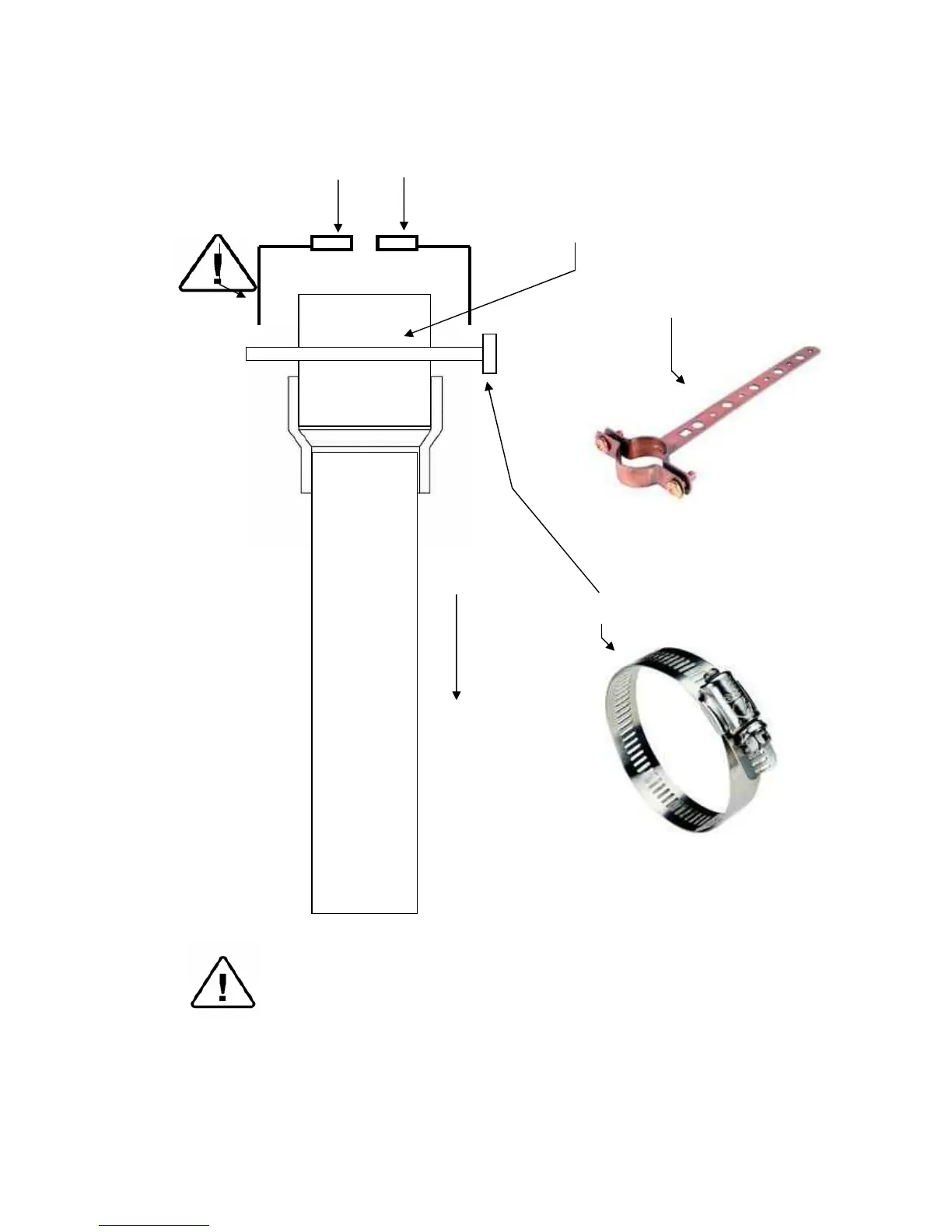

3.3 Suggested Site Drain Drawing
Caution!
Wastewater should be brought into the public sewage network in
accordance with the local rules or requirement i.e. only non-
hazardous liquids shall be disposed of in public sewage!
Network and connection should comply with the devices
consumption, local installation and safety rules and regulations.
Discharge hoses from EHS
Hanger with
90º ben
d
Coated Hanger
4” x 4” PVC air brea
k
1 ½” PVC
To trap
4” Metal worm gear clamp
Milford Type Copper
