Tuttnauer 2540 EHS - Door Tightening Bolt - Assembly

123

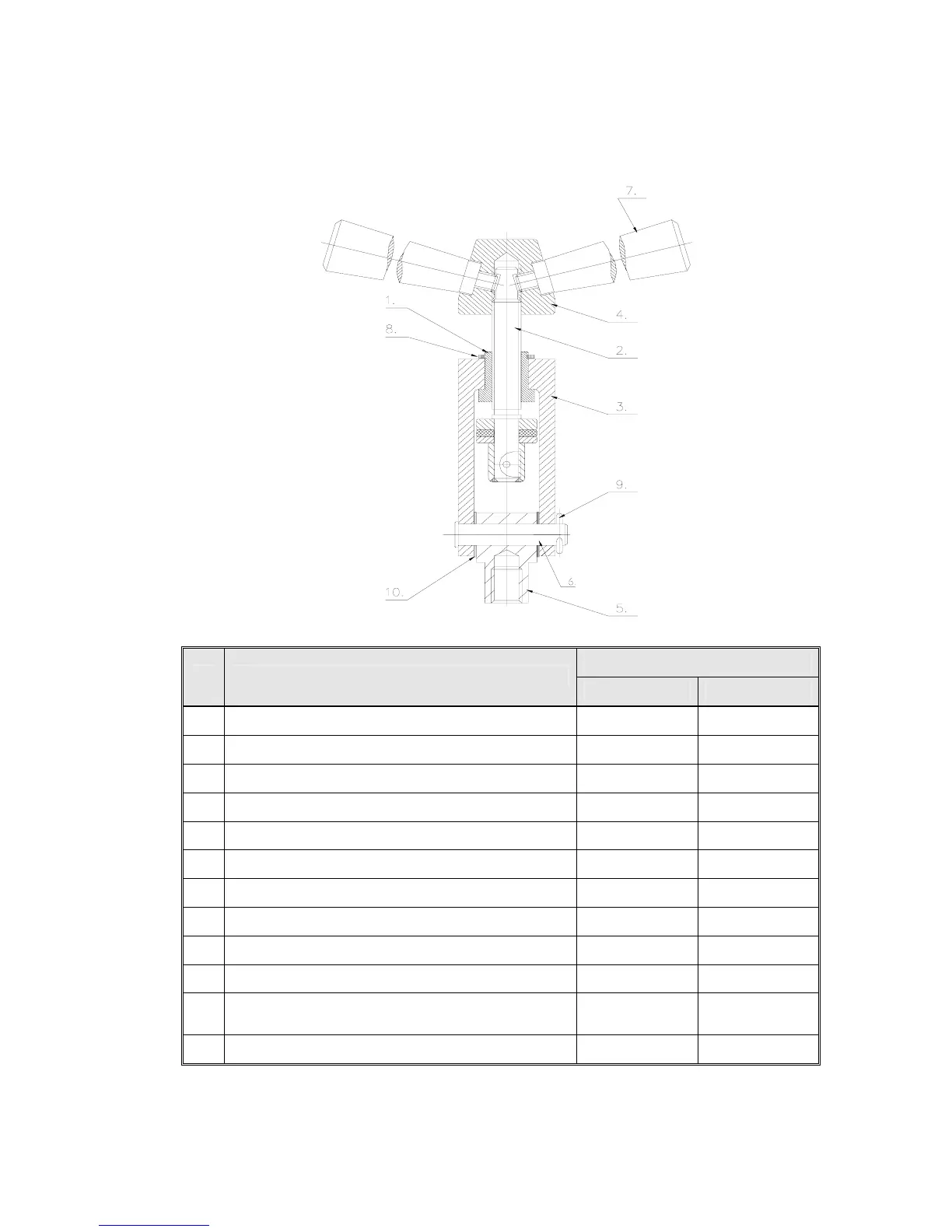

DOOR TIGHTENING BOLT – ASSEMBLY
Cat. No.
No. Description
2540 3870
1 Bushing LOK240-0003 LOK387-0003
2 Door tightening bolt assembly LOK240-0036 LOK387-0007
3 Locking screw housing LOK240-0005 LOK387-0006
4 Locking base LOK240-0012 LOK387-0012
5 Locking housing axe LOK240-0014 LOK387-0014
6 Door locking device pin LOK240-0019 LOK387-0016
7 Bakelite handle HAN071-0003 HAN071-0006
8 Closing bridge “c” clip NUT193-0339 NUT193-0300
9 Cotter pin LOK692-0039 LOK692-0039
10 Okolon disc LOK240-0017 LOK387-0017
Bushing (1) + Locking screw housing (3) +
Closing bridge “c” clip (8)
LOK240-0020 LOK387-0029
Door tightening bolt – assembly LOK240-0001 LOK387-0030
