3-1. DISASSEMBLY
Separate the spacer transmission and the rear transmission from each other and then remove the hydraulic
cylinder case.referring to paragraph 7.(1) of SECTION 4. SEPARATION OF MAJOR COMPONENTS in
Chapter 2.

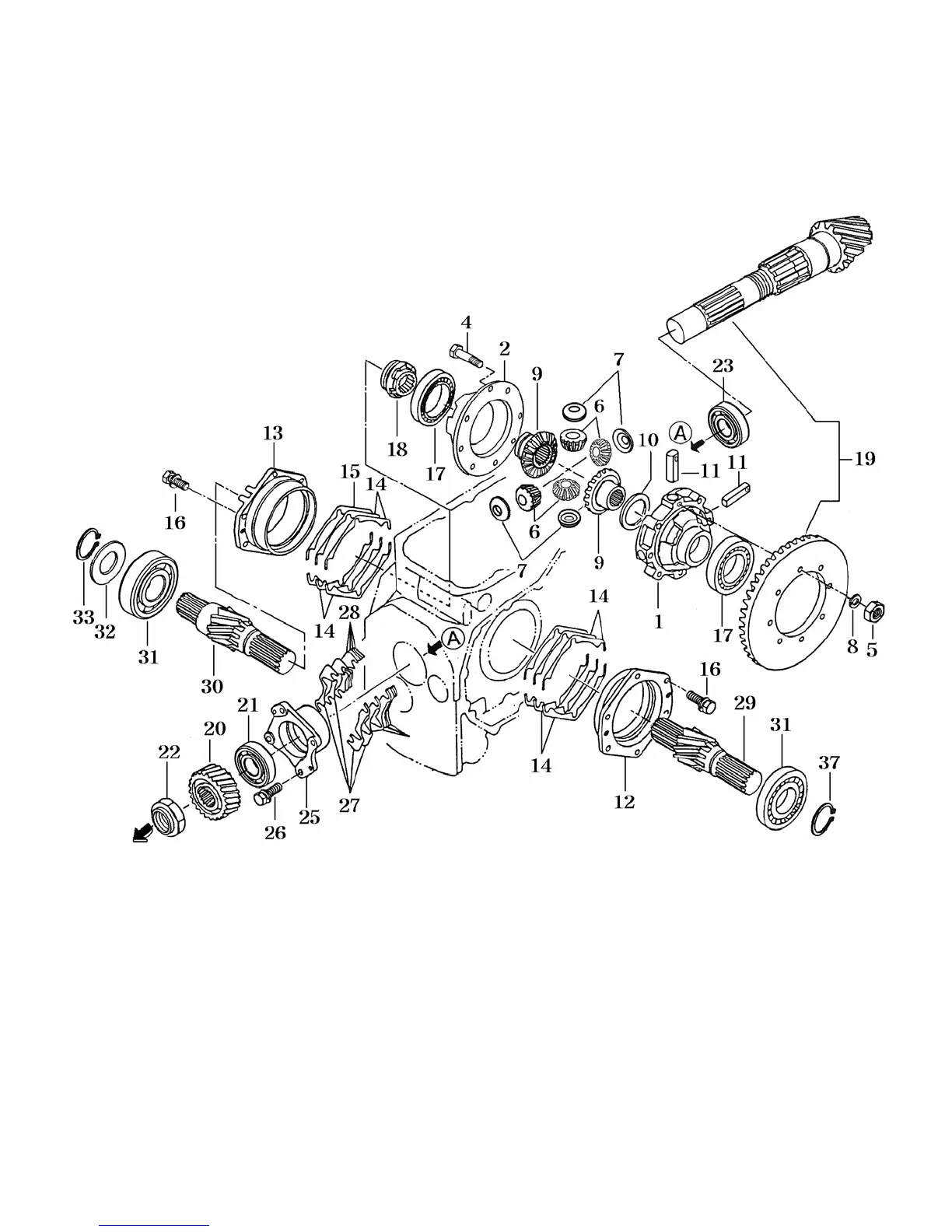

(1) Ring gear,Drive pinion,and related parts.
5-29
1.Diff case (L) 2.Diff case(R) 4.Bolt 5.Nut 6.Diff pinion(12) 7.Collar 8.Lock plate
9.Bevel gear(20) 10.Thrust collar(45X58X1) 11.Shaft diff pinion 12. Metal Diff case(L)
13.Metal Diff case(R) 14.Shim(A) 15.Shim(B) 16.Bolt(S) 17.Ball bearing
18.Diff lock clutch 19.Bevel (9-52) 20.Gear spur/25 21.TRB 22.Nut 23.TRB
25. Metal pinion 26.Bolts 27.Shim(0.1) 28.Shim(0.2) 29.Wheel pinion(10/LH)
30. Wheel pinion(10/RH) 31.Ball bearing(HL1) 32.Collar(39.8X52X04)
33.Snap ring(Shaft) 34.Snap ring(Hole)
Fig.5-54
