1.SEPARATION OF THE ENGINE AND THE FRONT AXLE BRACKET
Parts which can be inspected during This
operation
-Air cleaner
-Radiator
-Power steering system
-Engine front part.
(1) Removal
1) Hold or support the engine with a crane or
stands.
2) Hold or support the front bracket or the axle
bracket in a manner that the part other than
the engine can be removed if required.
3) Remove the side covers (RH and LH) and
engine hood.
4) Disconnect the positive and negative battery
cables.

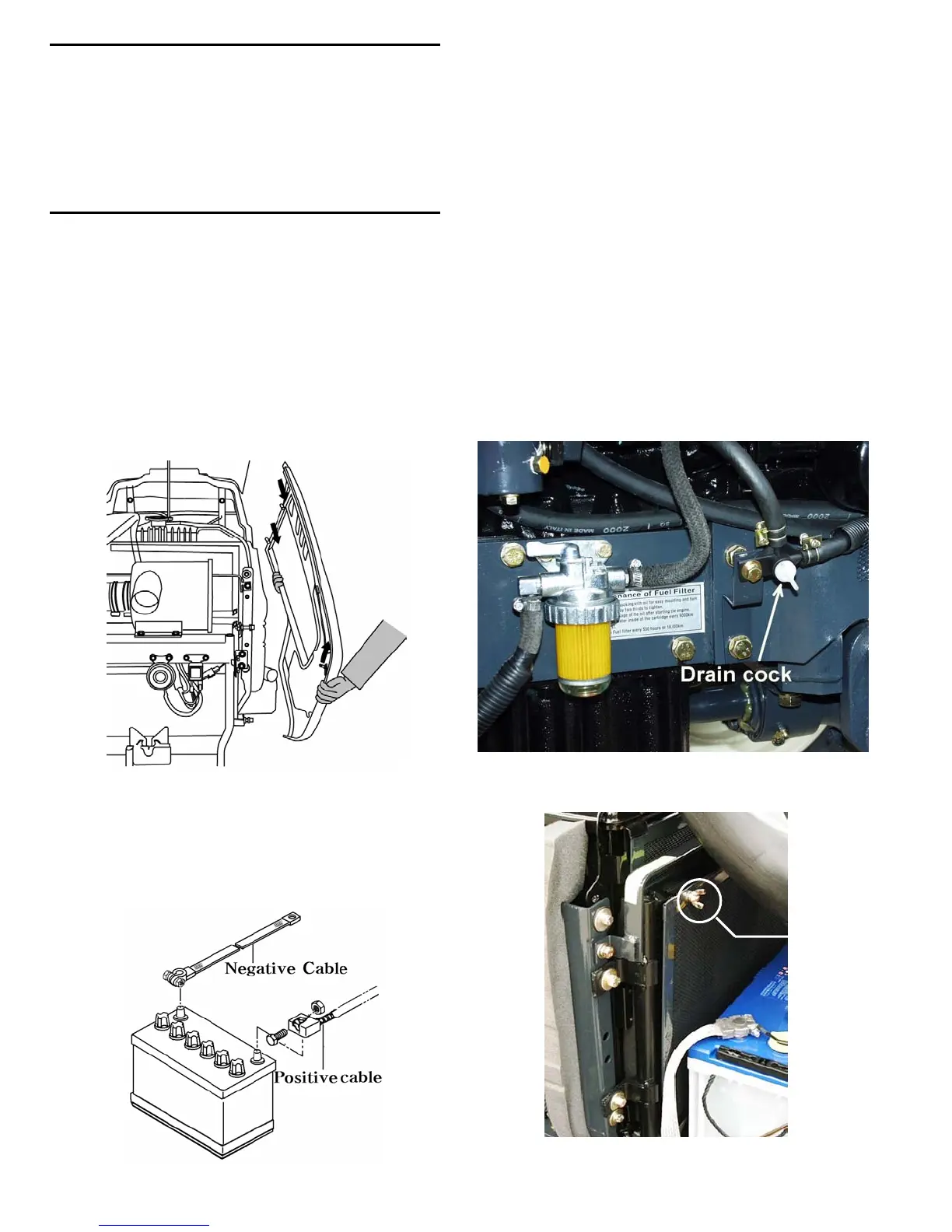

FIG.2-7
FIG.2-8 Battery
5) Open the front grille.
6) Detach the head light wiring.
7) Remove the other wiring
8) Remove the inlet pipe from the air cleaner.
9) Remove the air cleaner.
Note:
Here the air cleaner can be moved as an
assembly.
10) Remove the upper hose,lower hose.and
drain hose from the radiator.
Note:
The radiator should be drained of the coolant
ahead of time.
11) Remove the fuel filter.
Fig.2-9 Fuel filter
12) Remove the radiator from the axle bracket
2-6
Fig.2-10 Radiator
Wing Nut
To Next Page
