SECTION 5. REMOTE HYDRAULIC CONTROL
1.GENERAL DESCRIPTION
- A hydraulic operated implement can be driven and controlled with this optional remote hydraulic
control valve set.
- The valve is connected between the gear pump and the main control valve and is given a priority to
draw hydraulic power.
-The valve is installed on the right-hand side of the hydraulic cylinder case and the connecting ports
are provided under the right hand step .
2.FUNCTIONS

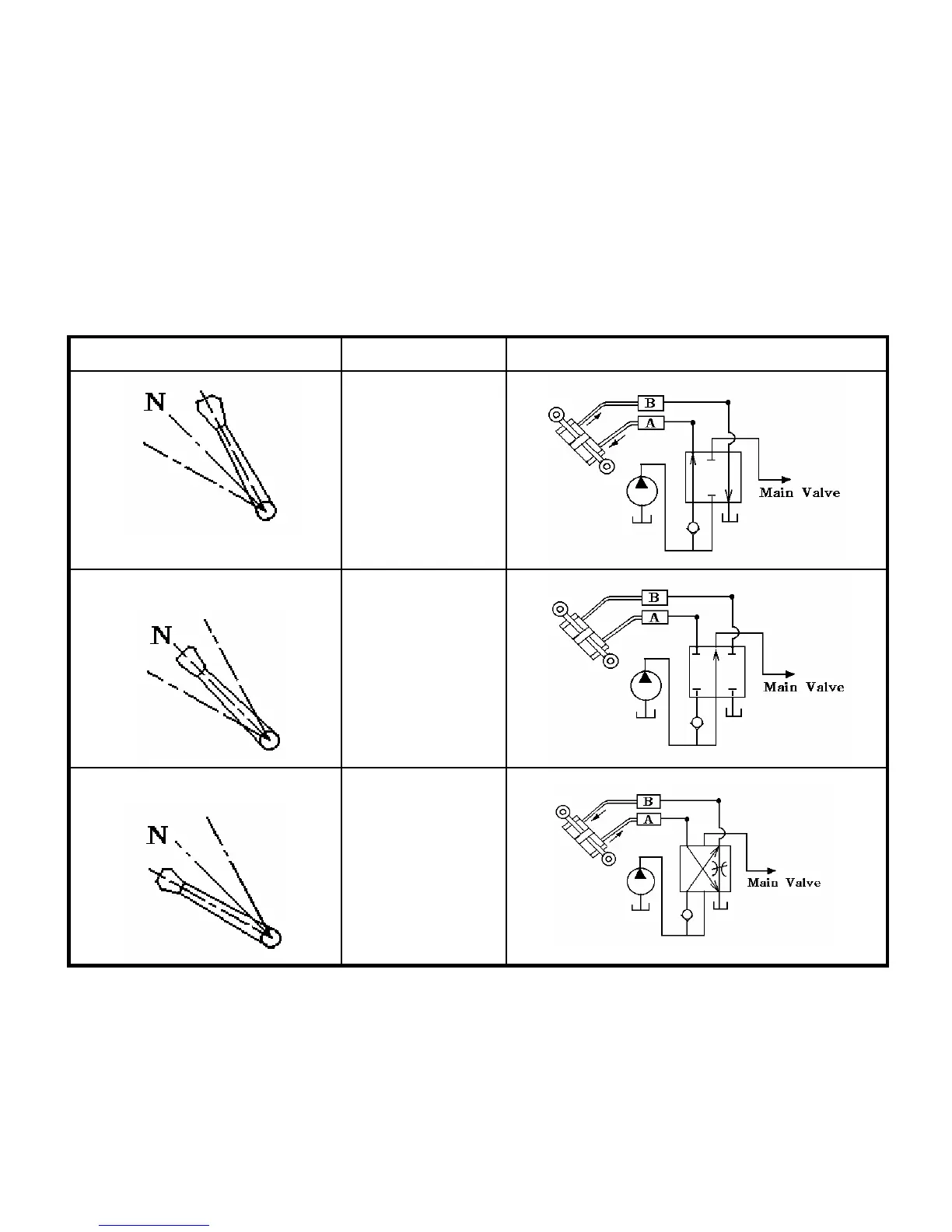

Fig. 9-68 Remote hydraulic pump
Lowering
B to ALowering
Neutral
Closed at A and B
Neutral
Raising
A to BRaising
Circuit diagramLever position
