3. FINAL CASE
6-9

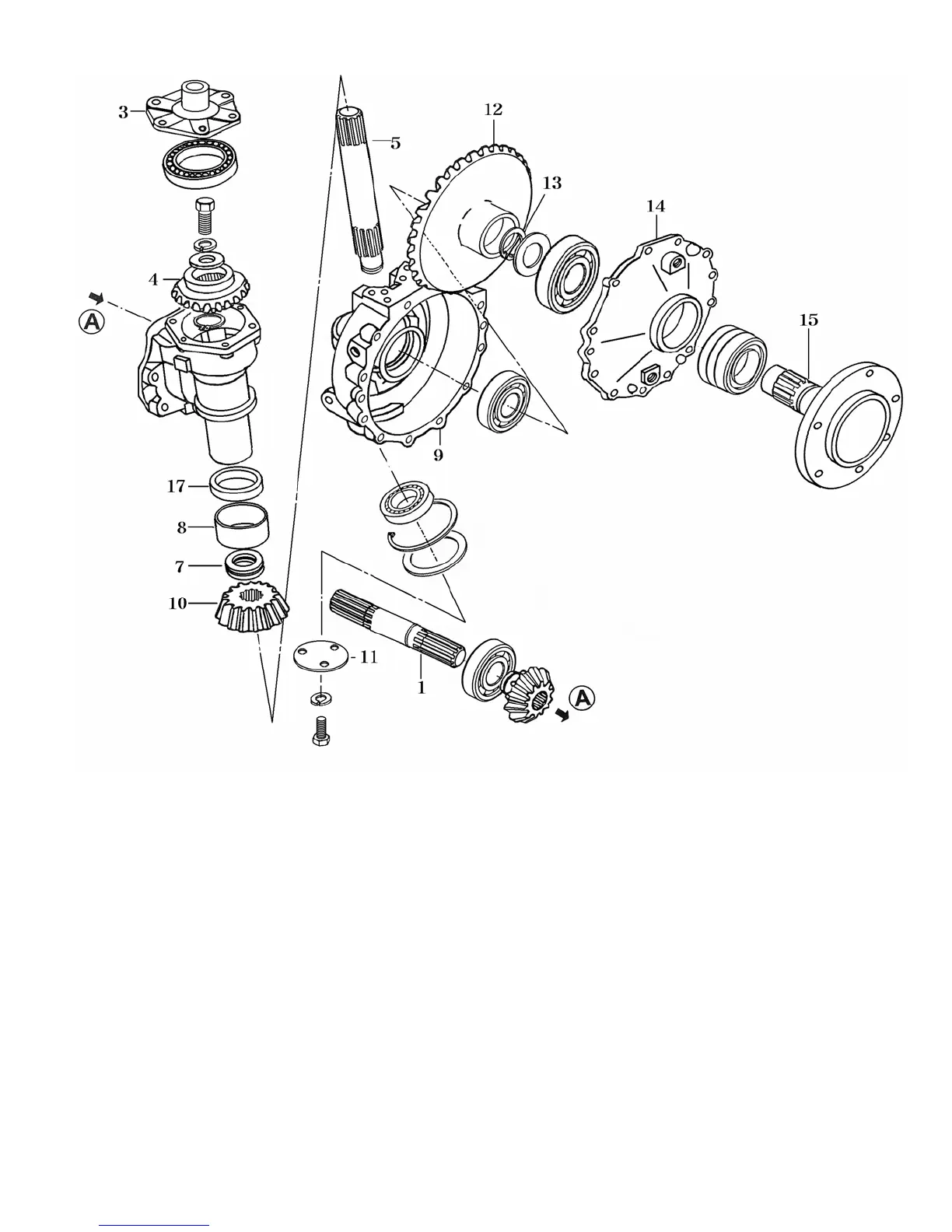

Fig.6-18
1.Final drive shaft 2.bevel gear 3.Bearing cove 4.bevel gear 5.Counter shaft
6.Final case A 7.Flat seat thrust bearing 8.Roll bush 9.Final case B 10.Bevel gear
11.Seal(Blank plug) 12. Bevel gear 13. Stop ring 14.Wheel shaft cover
15.Wheel shaft 16. Axle housing 17.Unitized seal
