TYM T390 Service Manual

SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY

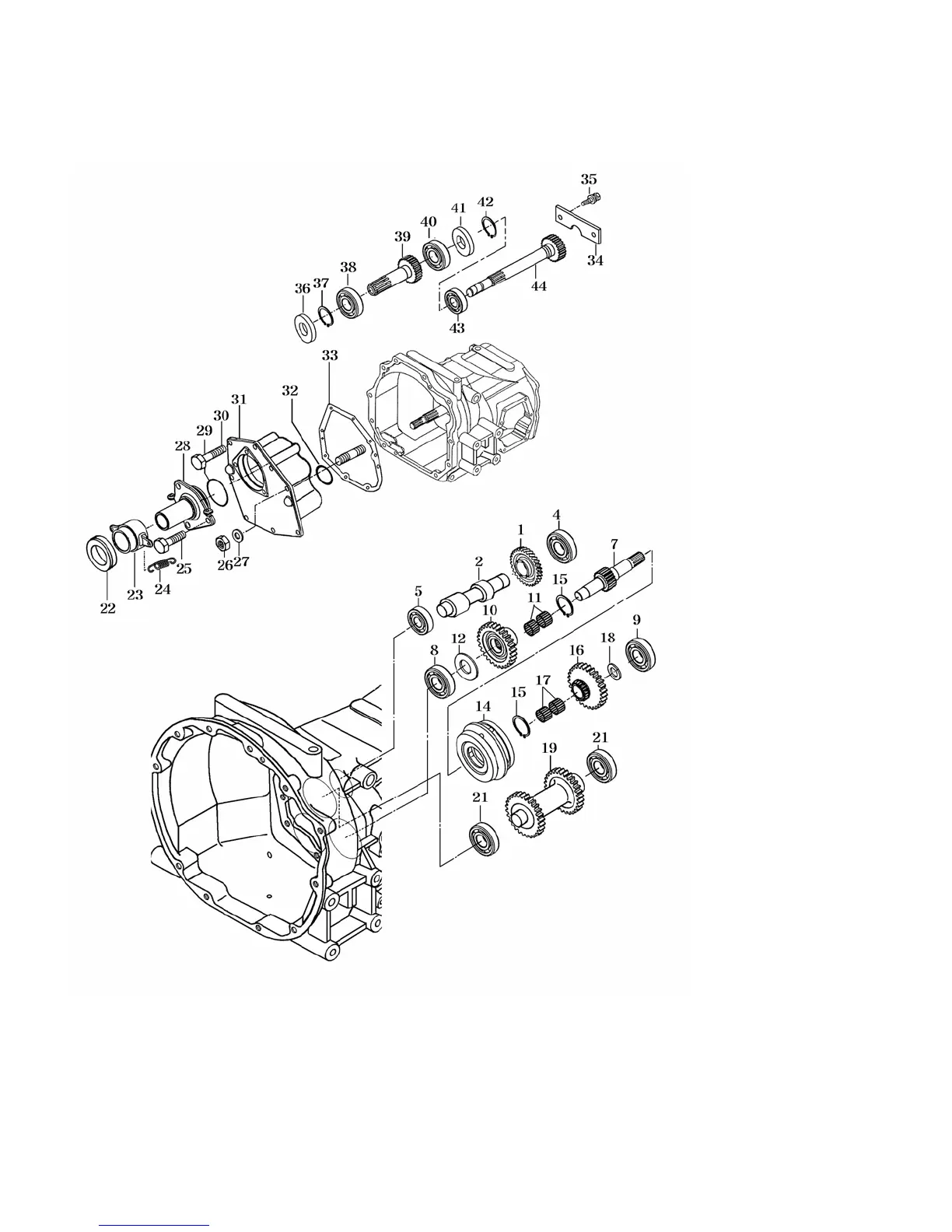

1. INPUT SHAFT AND REVERSE CHANGE GEARS (FRONT TRANSMISSION)
5-8
Fig.5-20
1.Gear helical(30)
2.Shaft
4. Ball bearing
5.Ball bearing
7.Reverse shaft
8.Ball bearing
9.Ball bearing
10.Gear helical(26)
11.Needle bearing
12.Washer(25X46X03)
14. Synchronizer
15.Snap ring
17.Needle bearing
18.Washer(30X46X03)
19.Gear(helical/33-29)
21.Ball bearing
22.Clutch release
bearing
23.Sleeve
24.Tension spring(31)
25. Bolt
26.Nut
27.Washer spring
28.Metal sleeve
29.O-ring(G76)
30.Bolt
31.Metal(input)
32.snap ring
33.Packing
34.Plate
35.Bolt(S)
36.Oil seal
37.Snap ring
38.RBB
39.Gear helical(21)
40.Bearing 41.Oil seal 42.Snap ring 43.Ball bearing(HL1) 44. Gear helical
