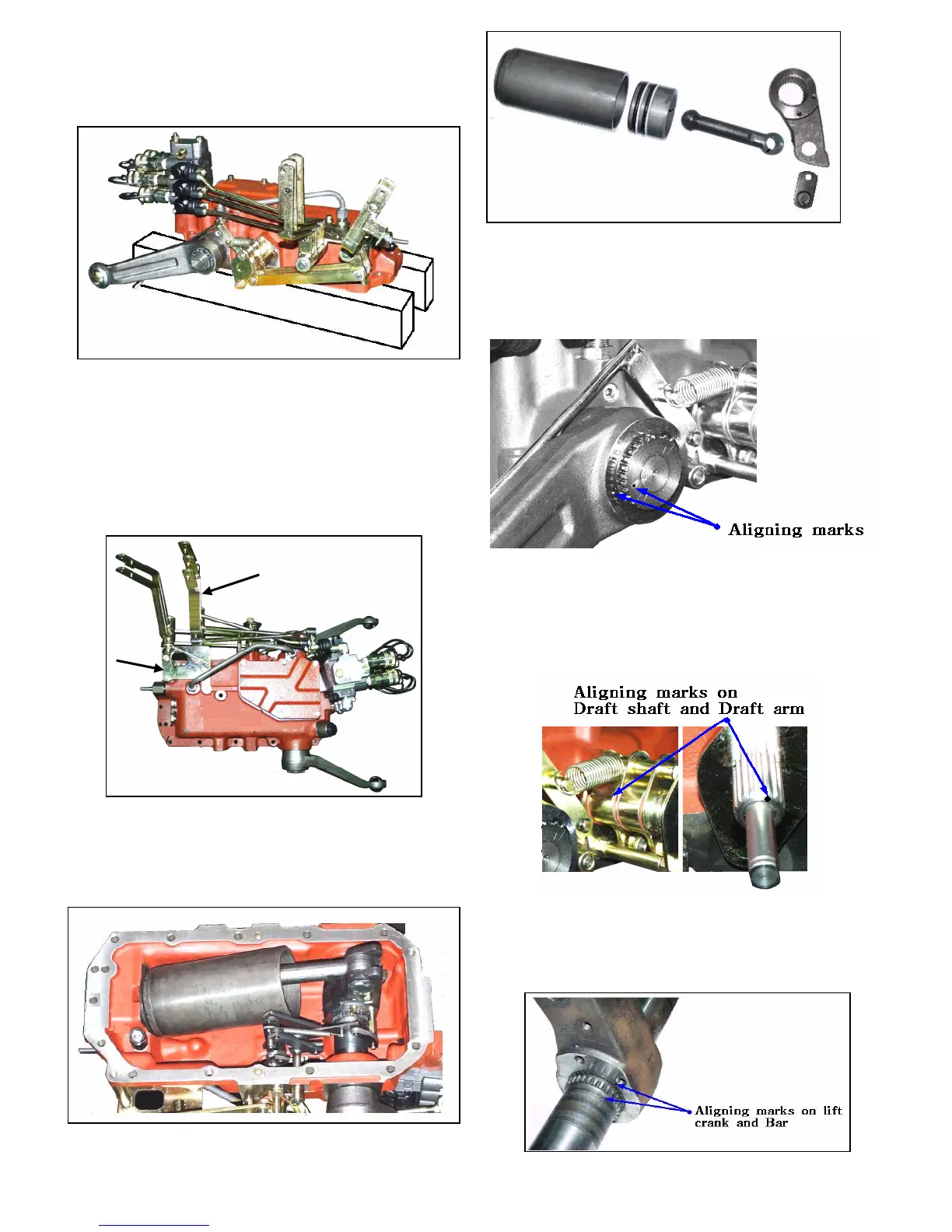

2.DISASSEMBLY
1)Remove the cylinder case assembly,referring
to relevant paragraph in Chapter 2.
Note:
Put the cylinder case on a wooden plank to
prevent the surface from damage.
2) Remove the link pin and extract the related
Lift link .
Fig.9-2
Lift Link
Link pin
Fig.9-2
3) Remove the cylinder head and extract the
cylinder.Then remove the piston from the
cylinder.
9-4
Fig.9-3
4) Applying aligning marks on the Lift shaft(26)
and right hand lift arm(19),Then remove the arm
Fig.9-4
5) Applying aligning marks on the Draft shaft
And Draft arm ,Then remove the shaft
6) Applying aligning marks on the Lift crank
And Bar ,Then remove Bar
Fig.9-5
Fig.9-6
Fig.9-7
