4-3
SECTION 3. DISASSEMBLY, INSPECTION, AND REASSEMBLY
1.MAIN CLUTCH
1-1.Disassembly
Separate the engine from the front transmission
referring to the paragraph "SEPARATION OF
MAJOR COMPONENT in chapter 2.“
2) Remove the clutch assembly from the flywheel.
3) Remove the cotter pins from the lever nuts.
Fig 4-4 cotter pin.
1.Cover (clutch/260)
2. Pressure plate
3.Release lever
4.Spring
5.Spring Cap
6.Return Spring
7.Bolt(Lever)
8.Lever
9.Split pin
10.Disc(Clutch/260)
11.Bolt(S)
12.Metal(Input)
13.Bolt(seal)
14.Nut
15.Washer plain
16.Snap ring
17.Gasket
18.Metal(sleeve)
19.Bolt(seal)
20.O-ring
21.Sleeve
22.Clutch release bearing
23.Spring tension(31)

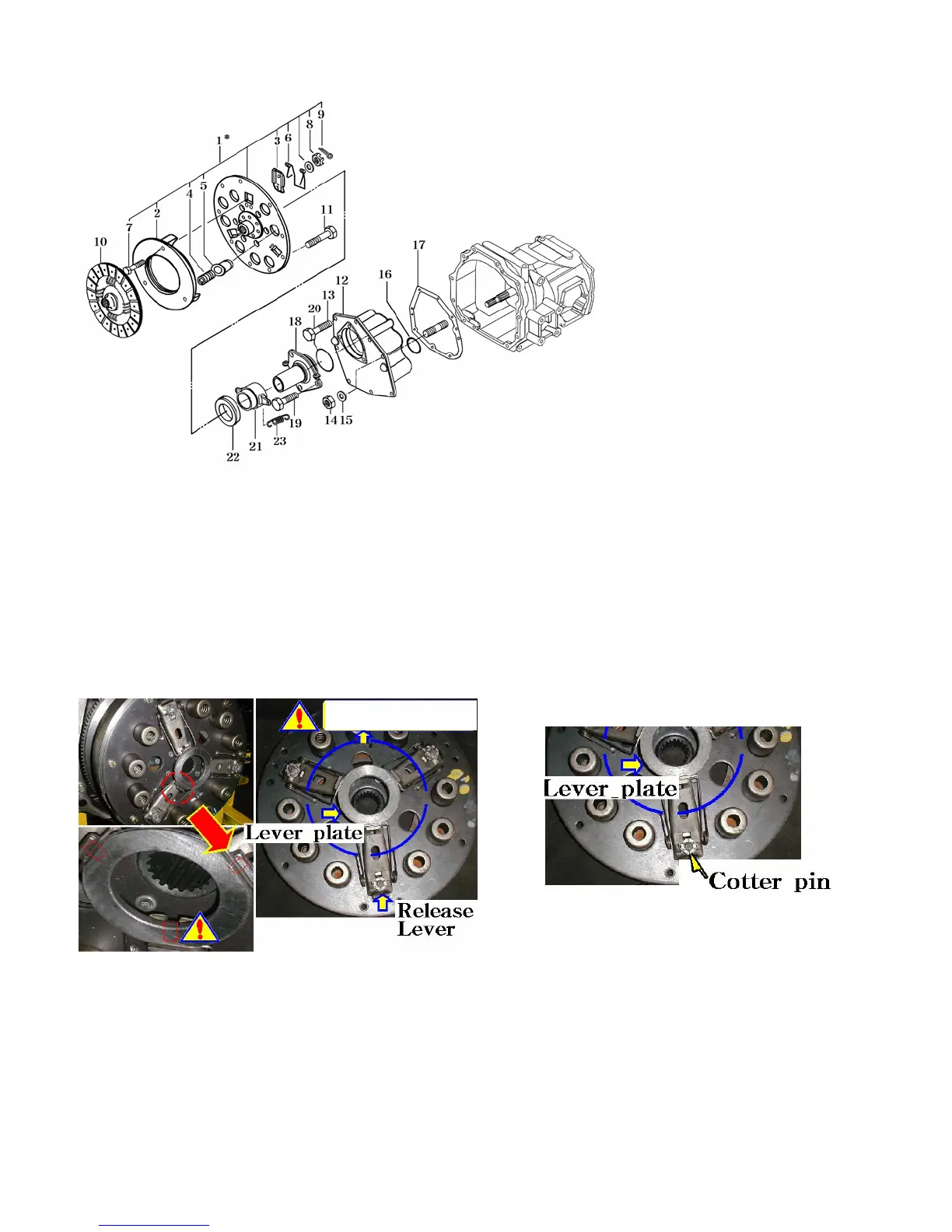

FIG. 4-3 Clutch assembly
Note:
When removing the bolts,loosen them gradually
in diagonal sequence.
Take care not to let oil get on the clutch facing.
