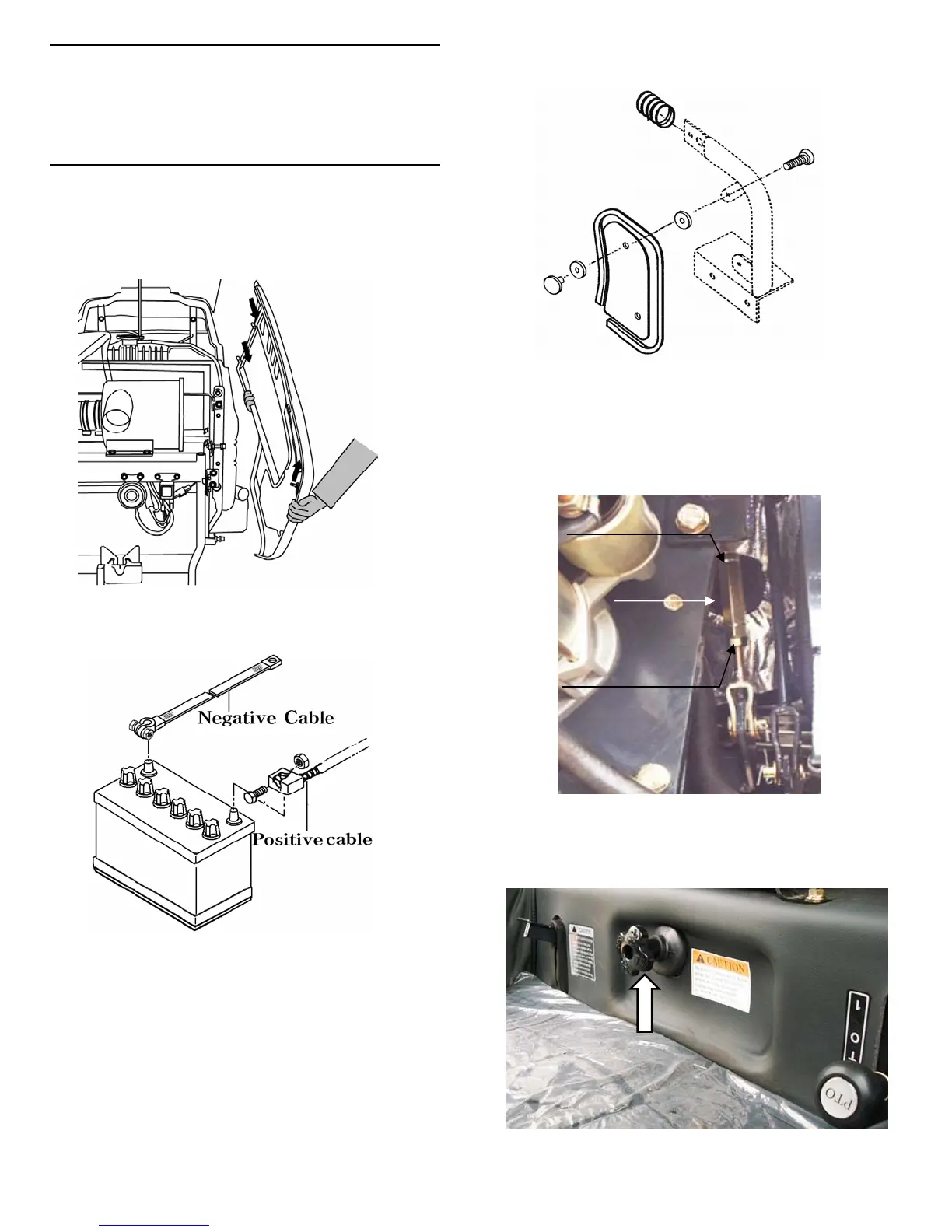

4.SEPARATION OF THE FRONT TRANSMISSION AND SPACER TRANSMISSION
Parts which can be inspected during This operation
-PTO clutch
-Linear shift gears and related parts
-Main change gears
1) Removal
A:Removal of the whole floor.
1) Remove the side covers(LH and RH).
3) Detach all the wiring relevant to the removal of
the floor.
4) Disconnect the throttle lever cable from the fuel
injection pump and accelerator pedal cable from
the pedal.
2-10
2) Disconnect the negative battery cable.
FIG.2-21
FIG.2-22
5) Remove the frames(LH and RH)
6) Disconnect the clutch rod and brake rods under
the floor.
FIG.2-23
Lock nut(left screw)
Turnbuckle
Lock nut(right screw)
FIG.2-24
7) Remove the slow-return check valve knob.
FIG.2-25 Slow return check valve
