9) Remove the stop ring and the wheel shaft can
be extracted.
10) Remove the seal from the bottom of the final
case B and detach the snap ring(hole) .Then the
counter shaft and RBB can be removed.
Note:
The removed seal (black plug) should be
discarded and replaced when reassembled.

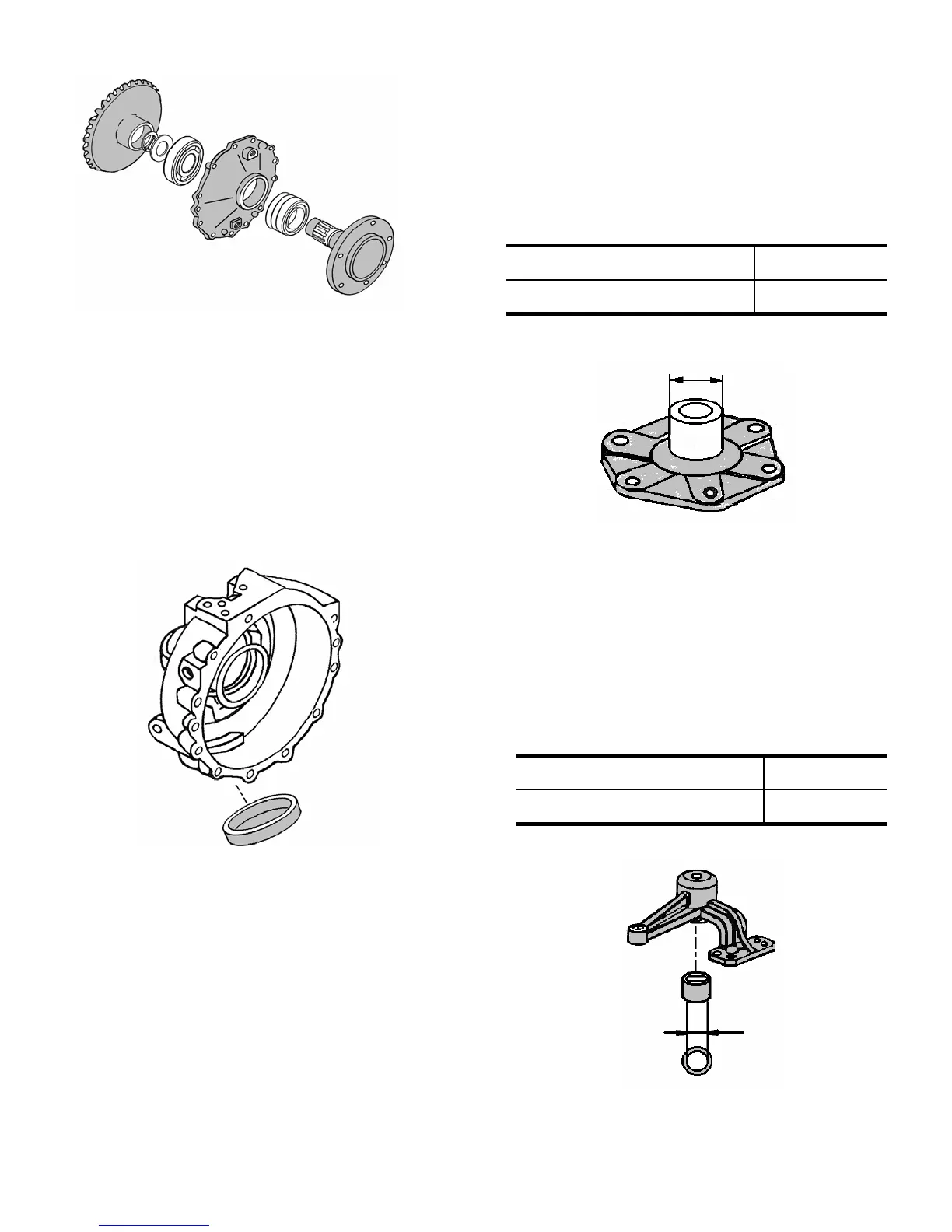

Fig.6-24
3.2 INSPECTION
1) Bearing cover shaft diameter
Measure the diameter the part which makes
contact with the roll bush in the drag arm,with a
micro-meter or vernier-calipers.When the
measured value less than the usable limit,replace
the bearing cover.
Ø54.9 (2.161)Usable limit
Ø55 (2.165)Standard value as assembled
Fig.6-26
Fig.6-25
8) Extract the wheel shaft bearing together with the
bevel gear,using a bearing puller.
Fig.6-23
2) Drag arm bush bore diameter
-Measure the bore diameter of the roll bush in
the drag arm with a cylinder gauge or vernier
calipers.If the measured value exceeds the
usable limit,replace the bush (Fig. 6-26)
Ø35.2(1.385
)
Usable limit
Ø35 (1.378)Standard value as assembled
