6-10
3.1 Disassembly
1)Before disassembly,lift up the front axle and
remove the wheel on the side of the final case
that is to be disassembled.
2) Drain oil from the final case by removing the
drain plug.
3) Remove the tie rod or the tie rod end.
4) Remove the assembly of the final drive cases
(A and B) from the front axle.
5) Remove the drag arm from the final cases
( A and B)

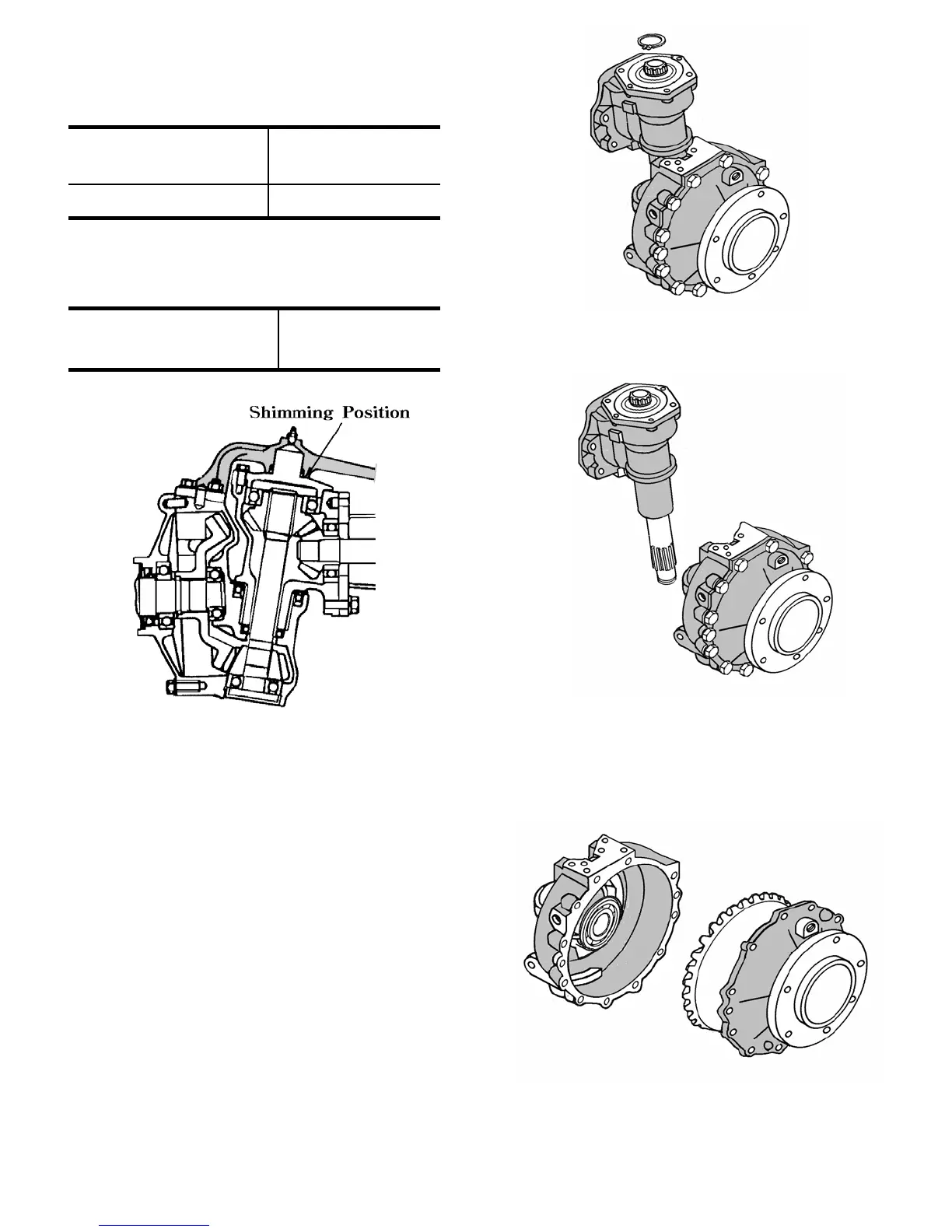

6) Remove the bearing cover and then detach snap
ring C from the counter shaft.Then the final case
B can be separated downwards.
*Inspection prior to disassembly
-Try to move the final case B up and down to make
sure that there is no play.
0.5(0.020)Usable limit: mm(in)
0~0.2mm
(0~0.008)
Standard value as
assembled mm( in)
-When the play exceeds the usable limit,correct it
by a shimming adjustment.
0.5(0.020)
1.0(0.039)
Adjustable shims in
thickness mm(in)
Fig.6-19
Fig.6-21
Fig.6-20
7) Remove the wheel shaft cover clamping bolts
and take out the assembly of the wheel shaft,
wheel shaft cover,and bevel gear.
Fig.6-22
