(2) Install the main change shifter link and each
change metal.
(3) install the brake rods and front drive shaft.
(4) Install the hydraulic piping.
(5) Install two rear rubber mounts.
(6) Install exterior parts.
(7) Fill the transmission case with oil
3510/4110/T390(T400)/T430(T450):34(9 us gal)
6.SEPARATION OF THE REAR
TRANSMISSION AND REAR AXLE
HOUSING
Parts which can be inspected during This operation
- Diff Lock
- Brakes
-Final gears
1) Removal
As both sides can be disassembled in the same
way,only side with the diff-lock installed will be
explained here.
(1) Drain the transmission case of oil
(2) Lift up the rear transmission and remove the
rear wheel on the diff-lock side.
(3) Remove the diff-lock pedal
Diff-lock pedal
2-16

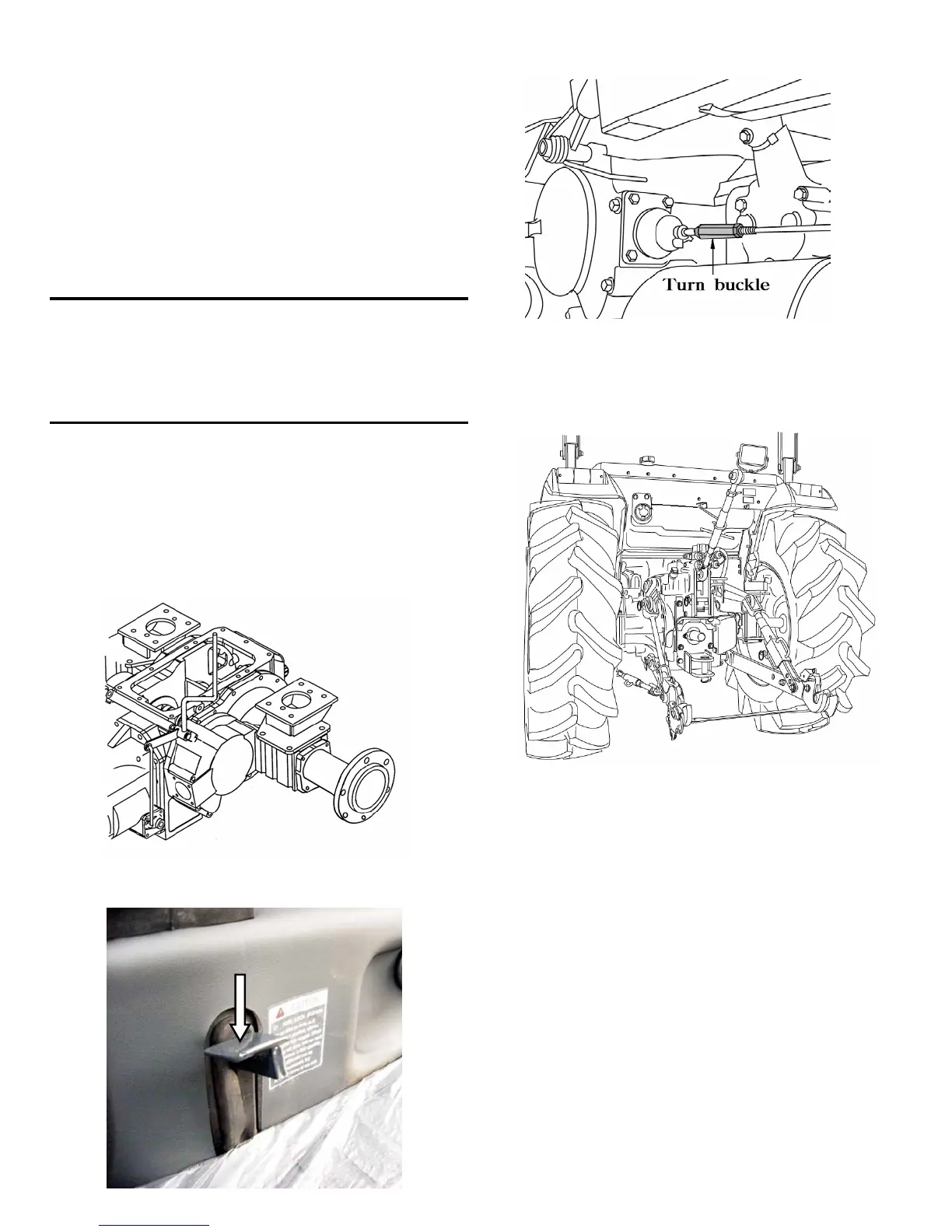

FIG.2-52 Diff-lock pedal
FIG.2-51 Rear wheel
(4) Remove the brake rods.
(5) Remove the 3-point linkage and related parts.
FIG.2-54 3-point linkage
FIG.2-53 Brake rod
