(6) Support the floor panel with a trestle or the
like.
(7) Remove the rubber mount along with the
bracket.
(8) Remove the rear axle housing tightening bolts.
(9)Detach the rear axle housing from the rear
transmission case

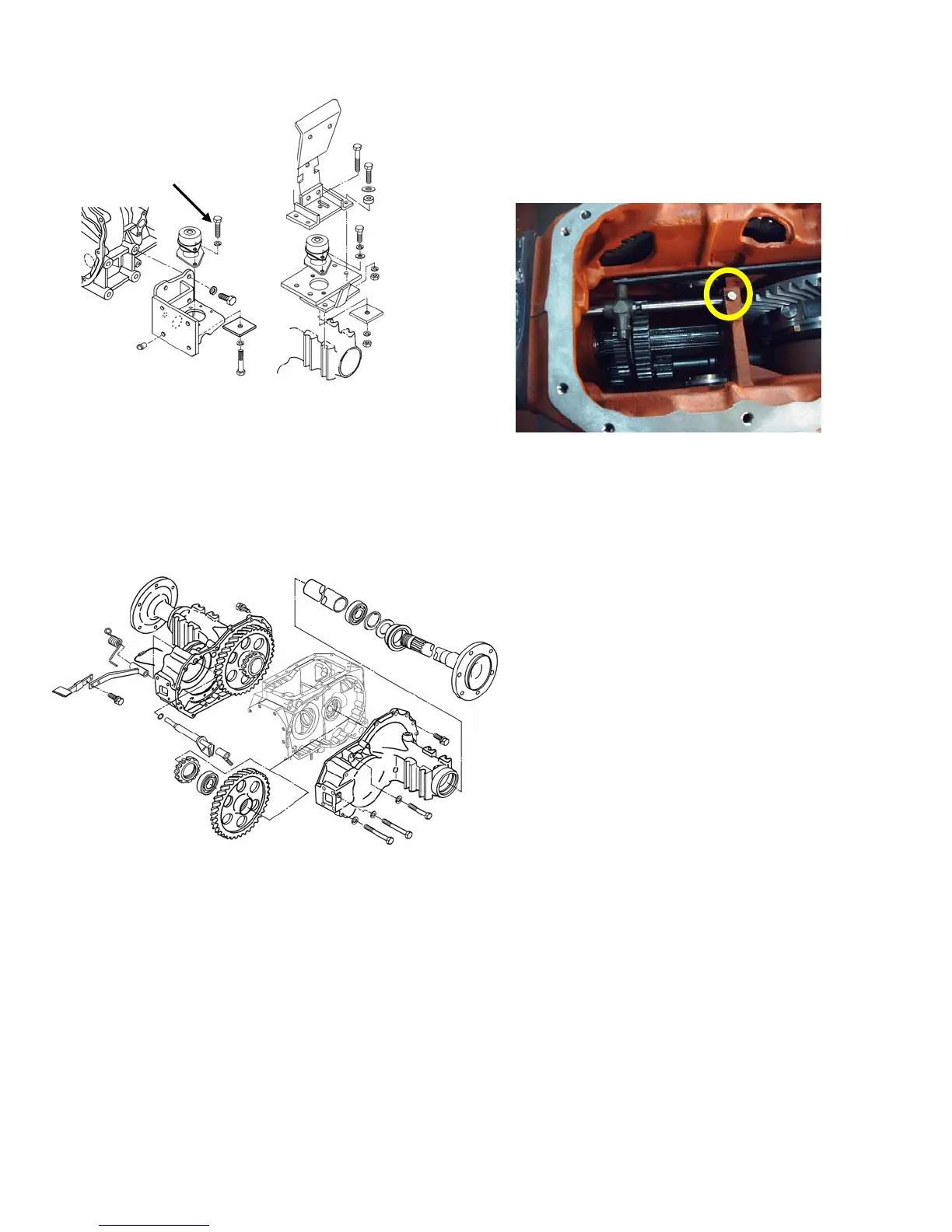

FIG.2-55 Frame rubber mounts.
FIG.2-56 Rear axle housing
2) Installation
Reassemble in reverse order of disassembly.
(1) join the rear axle and rear transmission
Note:
Make sure that the diff-lock shifter is fitted into
the groove in the dif-lock metal
2-17
Rubber mounting bolts
(2) Reinstall the other removed parts.
(3) Mount the rear wheel.
(4) Refill the transmission with oil up to the
specified level
-Level up to fill the oil can be sought from the
rear side of rear transmission case(Window)
FIG.2-57
