TYM T390 Service Manual

2. Radiator
The radiator consists of radiator cores, a tank
to Flow coolant,side plates to install the radiator,
and a fan guide.
Fin-tube type cores are used and the cores and
tank is made of anti corrosive copper and
Copper alloy.

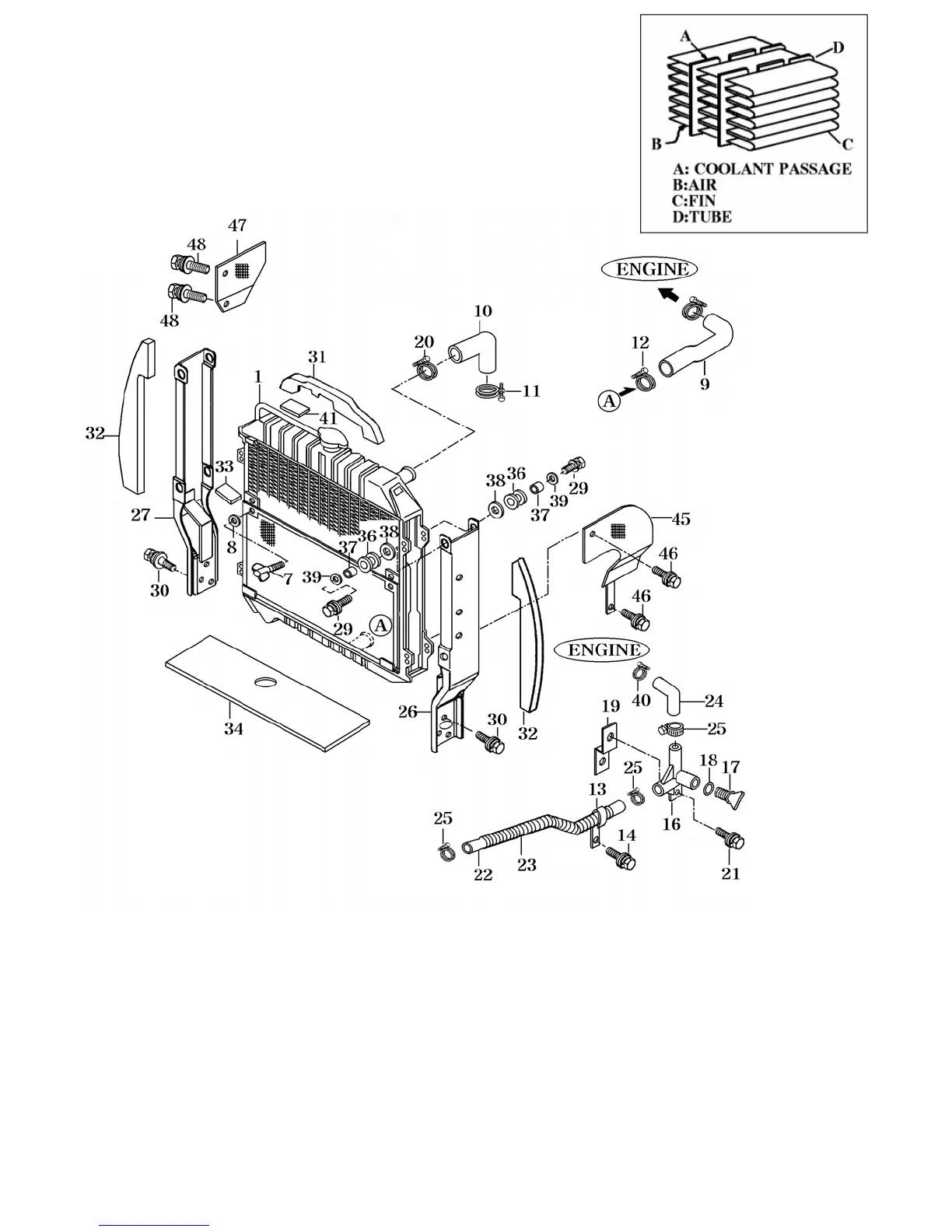

FIG.3-3
1.Radiator assy 5.Bolt 6.Net 7.Wing bolt 8.Washer plain 9.Hose(outlet)
10.Hose(Inlet) 11. Clip(42) 12.Clamp 13.Clip 14.Bolt(SP)
15.Clip 16.Connector 17.Plug 18.O-ring(P) 19.plate
20.Clip(42) 21.Bolt(SP) 22.Hose(380) 23.Corrugate 24. Hose
25.Hose band 26.Bracket 27.Bracket 28.Bolt(SP) 29.Bolt(S)
30.Bolt(SP) 31. 32. 33. 34.Insulator 36.Grommet 37.Collar(8X12X8)
38.Collar 39.Washer 40.Band 41.Insulator 45. Safety cover(LH)
46.Bolt(SP) 47.Safety cover(RH) 48.Bolt(SP)
3-2
