TYM T390 Service Manual

7.GEAR PUMP
7.1 GENERAL DESCRIPTION
Gear pump (Model: 4110.T390(T400).T430(T450).T431(T451)
9-38

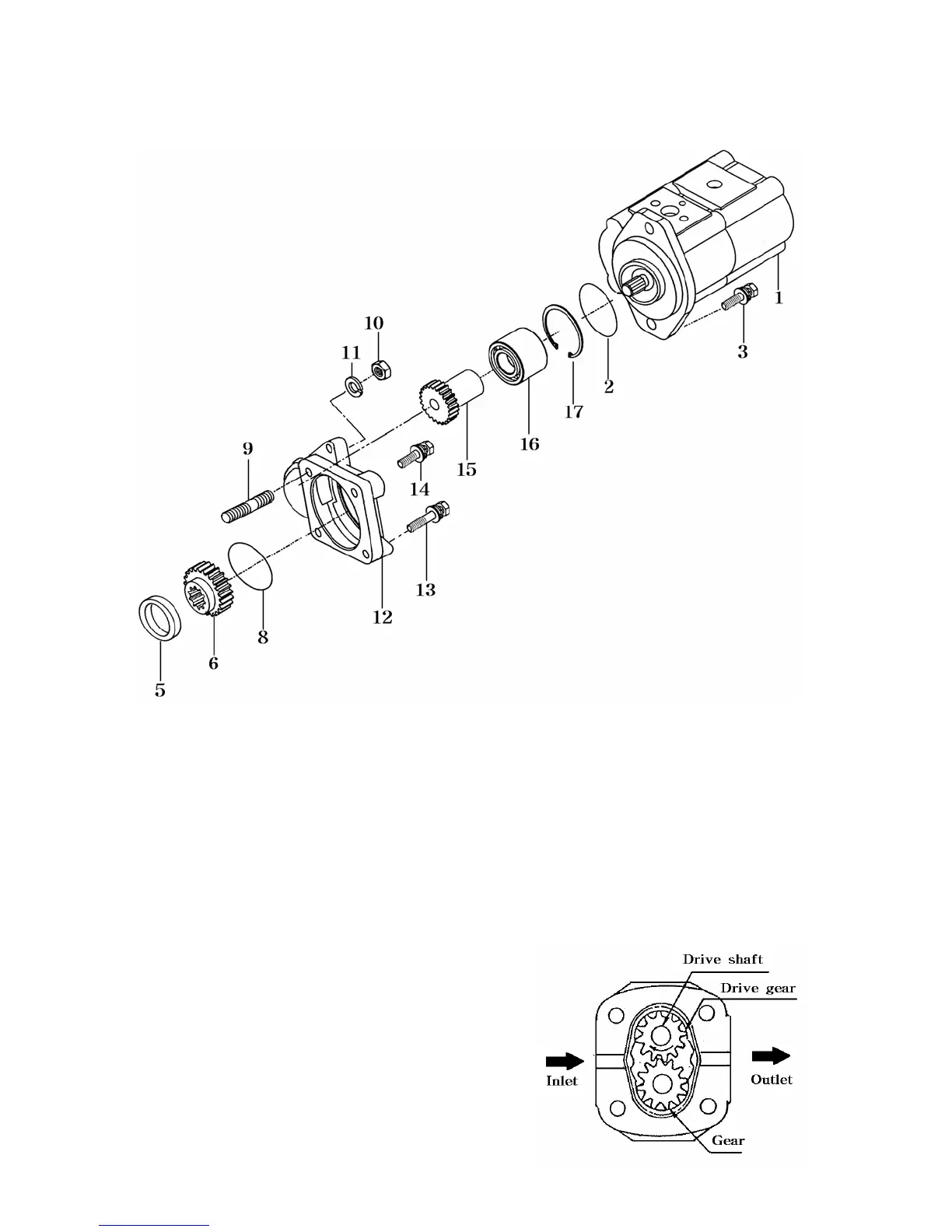

1.Flange 2.Housing 3.Drive gear 4.Gear 5.Bushing 6.Bushing seal
7.Bushing 8.0-ring 9.Cover 10.Cap ring 11.0-ring 12.Housing
13.Drive gear 14.Gear 15.Oil seal 16.Socket bolt 17.Washer 18.Key
19.Snap ring 20.Ball
7.2 OPERATIONS.
This pump induces fluid from one side
and delivers it from the other side,by
rotating two gears meshed with each
other. The actual delivery is as
mentioned below,Considering the
consequences of fluid Temperature and
volume efficiency in accordance with
revolution speed.
Fig. 9-58 Gear pump
Fig. 9-57 Gear pump
