TYM T390 Service Manual

SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY

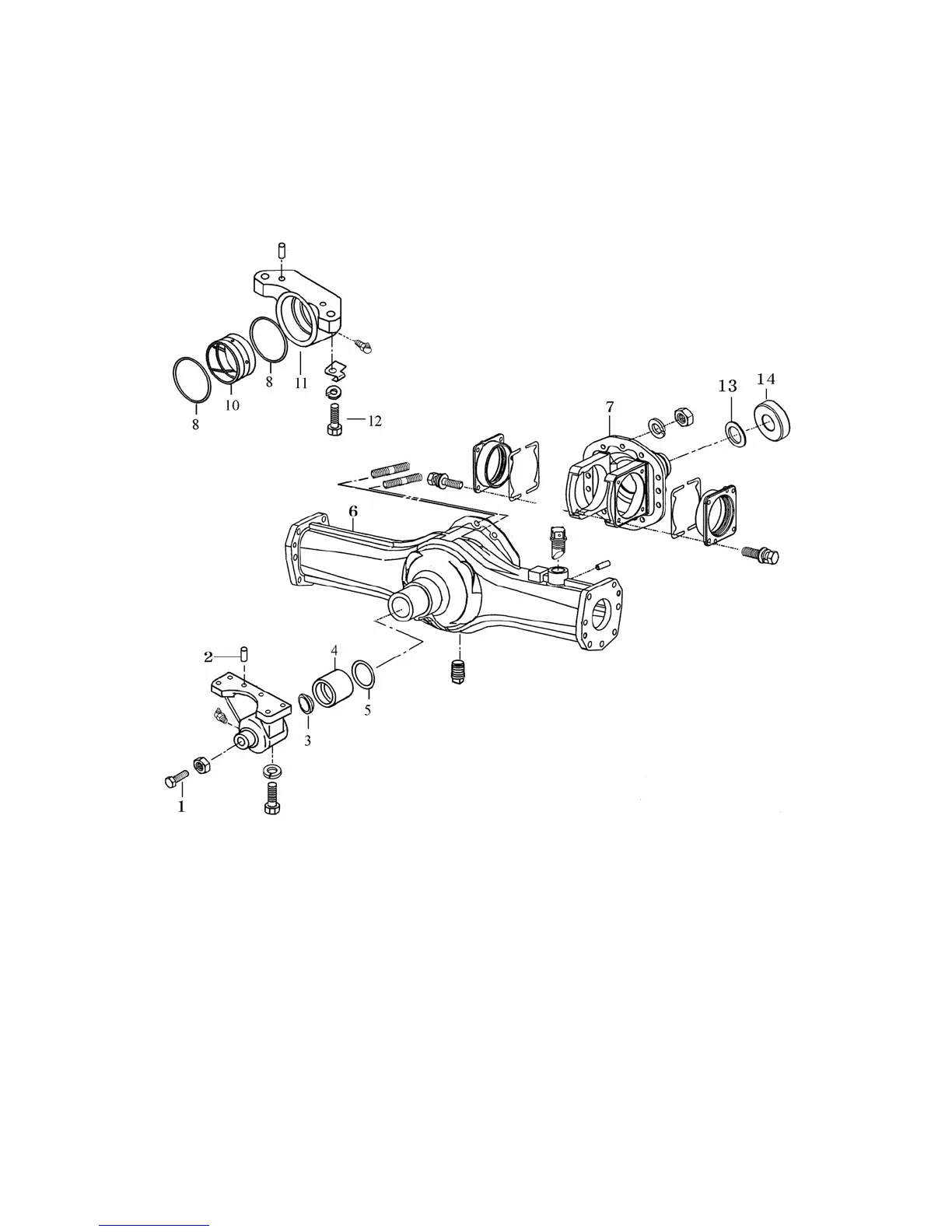

1.CENTER PIVOT
T390,T430,T431
6-3
1.Lock bolt
2.Pivot metal (support)
3.Spacer
4.connector
5.Bush(55X60X50)
6.Axle housing
7.Bevel gear case
8.X-ring
9.Thrust collar
10.Bush(65X70X44)
11.Rear pivot metal Support)
12.Bolt(M18X1.5X55:7T)
13.Oil seal
14.Cover
Fig.6-3
