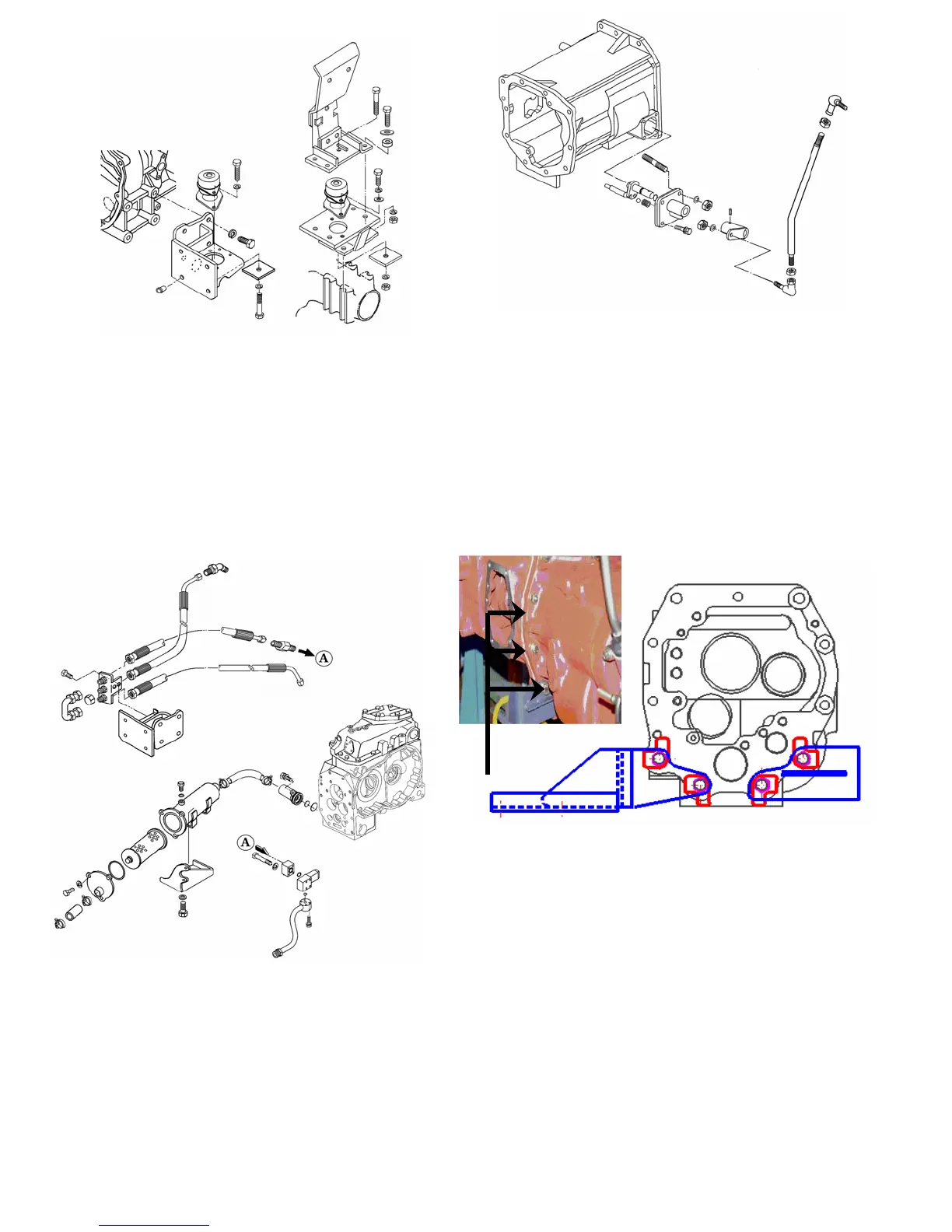

(19) Remove two rubber mounts.
FIG.2-44 Frame rubber mounts.
(20) Lift up the rear end of the floor/fender
assembly by about 100 mm,and place wood
between the spacer transmission case and floor
panel
(21) Drain the transmission of oil
(23) Remove the assembly of the remote control
valve and piping.
(24) Remove the suction and delivery pipe
(25) Remove the front wheel drive shaft
(26) Remove the brake rods.
(27) Remove the main change metal and
sub change metal(Support)
(28) Remove the 4WD shift metal
FIG.2-46 sub change metal
2-15
FIG.2-45
(29) Remove all the spacer-rear transmission
case tightening bolts and nuts except the
bottom bolt.
(30) Install the rear wheels(LH and RH) and the
remained bolts.Then turn the rear wheels by
hand to move the rear transmission case away
from the spacer transmission case.
FIG.2-47 space transmission bolt
2) Installation
Reassemble in reverse order of disassembly.
Note:
•The 4WD drive shaft should be installed on the
rear transmission ahead of time.
(1) Join the rear and spacer transmission cases.
Note:
During the operation,be careful not to damage
needle bearings, the cut –away part in the gear
should be turned downward without fail so as to
clear the gear to be positioned underneath.
To Next Page
