4-4

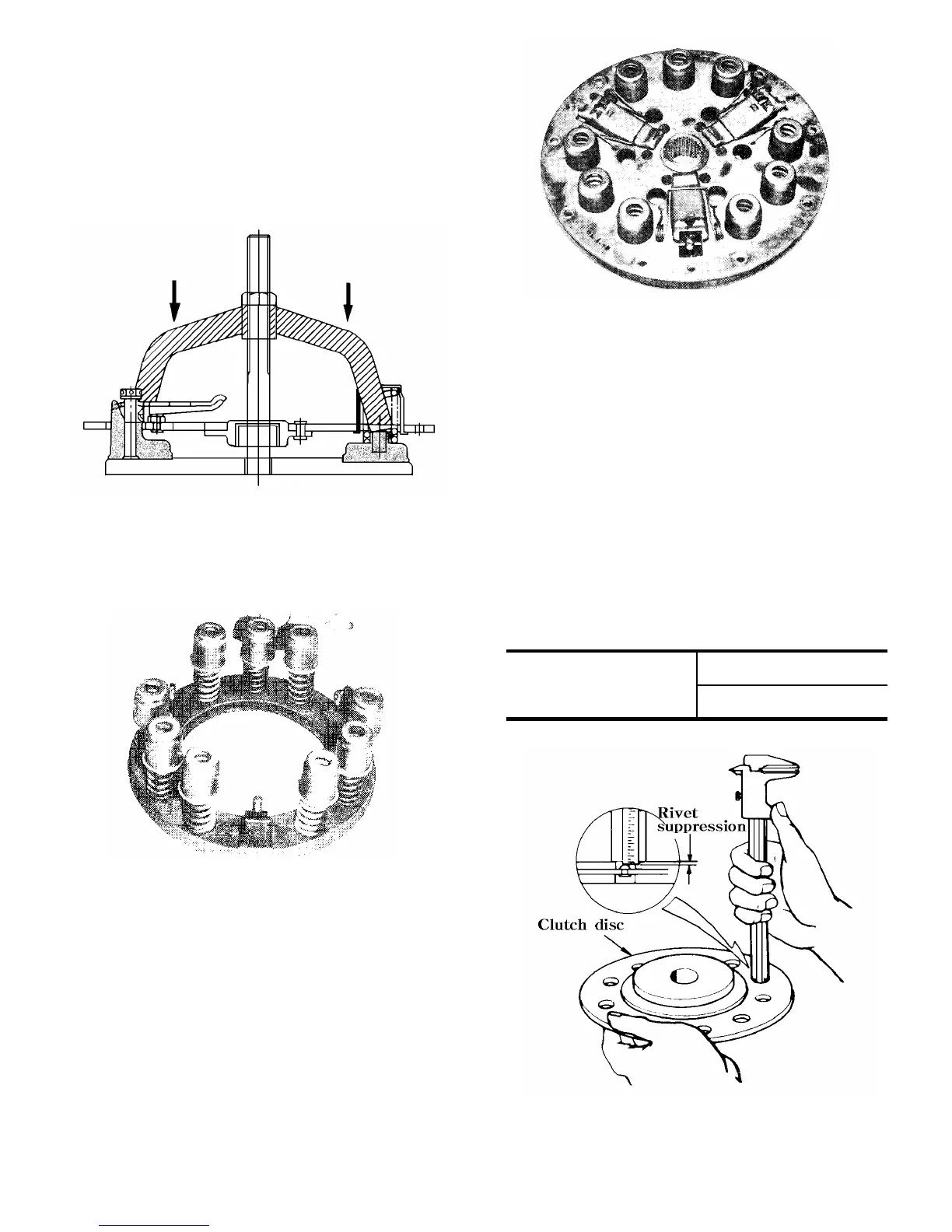

4)Install a special tool on the clutch cover

assembly and screw in the screw until the

release levers are freed.

Note:

Ensure that the claw positions are in contact

and tighten the center screw gradually.

Fig. 4-5

5) Remove the three lever nuts.

Note:

To maintain balance of the clutch,push alignment

marks on the clutch cover assembly and the

pressure plate before separating them.(Fig.4-7)

Fig. 4-6

Fig. 4-7

1.2. INSPECTION

(1) Inspection of the clutch disk

Check the clutch disk for wear or cracks on

the facing,loose rivets,broken torsion springs,

or wear of the hub splines.

1) Measure the suppression of the rivets, if the

suppression is 0.2 mm or less and cracks or

burnt damage are found on the surface,the disc

must be replaced.

0.2mm(0.008in)

Usable limitRivet suppression

Fig. 4-8
