1.1 DISASSEMBLY
(1)Removal of input shaft and related parts
separate the engine from the front transmission
referring to the paragraph 3.(1) of SECTION 4.
SEPARATION OF MAJOR COMPONENT in
Chapter 2.
a. Remove input metal as an assembly using
two push bolts(M8X2)
Note:
Be sure to screw in the bolts evenly
5-9

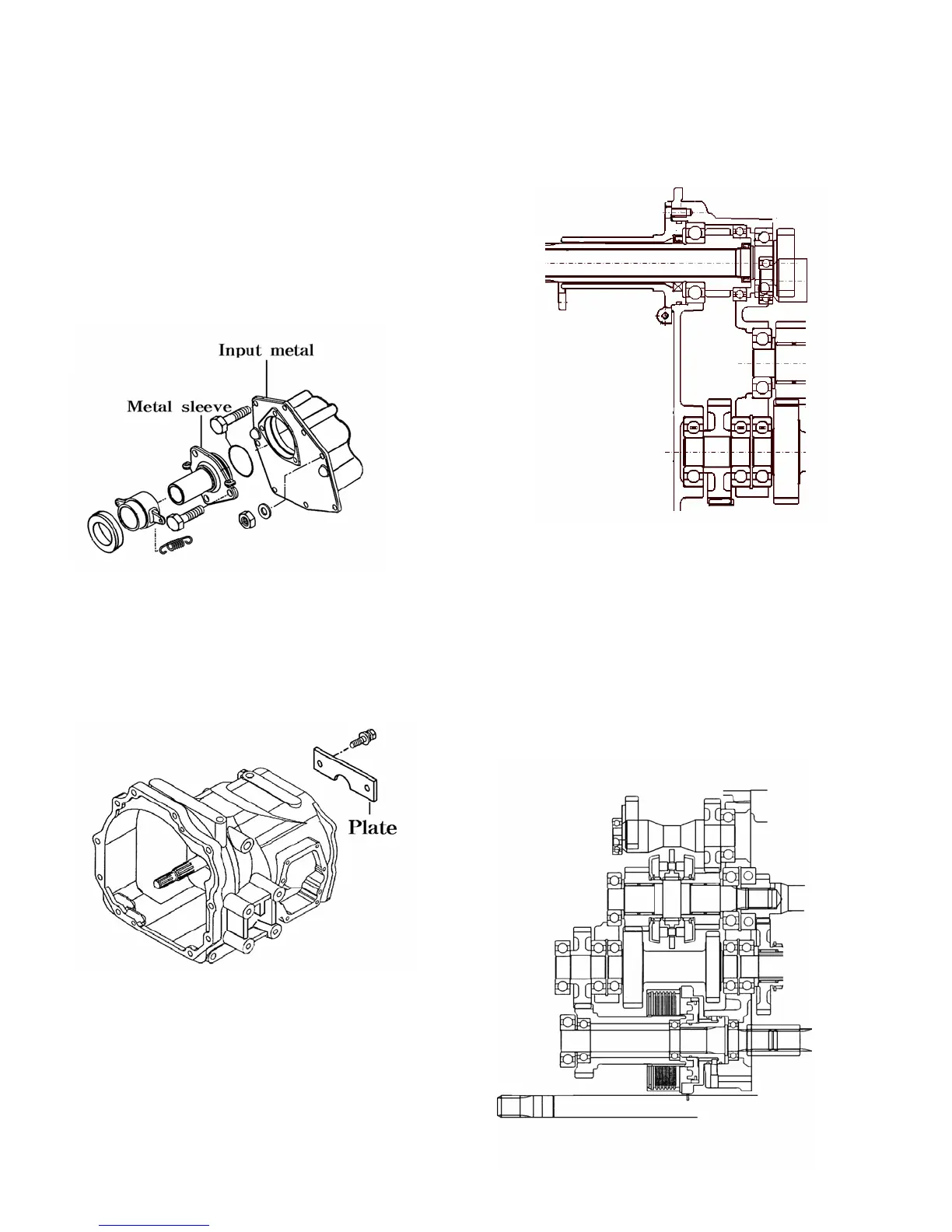

Fig.5-21 Input metal and related parts
Fig.5-22 Plate
b. Remove plate.(The tightening bolts are applied
with adhesive on their threads.)
c. Pull out Helical gear(21T) rearwards.
d. Remove the sleeve metal tightening bolts
and take off sleeve metal.
e. Draw Input gear forwards.
f. Remove snap ring C
g.Pull out idle shaft,using the tapped hole in it
Fig.5-23
(2) Removal of reverse change gears and PTO
clutch assembly
separate the engine from the front transmission
referring to the paragraph 4.(1) of SECTION 4.
SEPARATION OF MAJOR COMPONENT in
Chapter 2.
Fig.5-24
To Next Page
