SECTION 3. SEPARATION OF MAJOR COMPONENTS

1.SEPARATION OF THE FRONT

AXLE AND AXLE BRACKET

Parts which can be inspected during This

operation

-Center pivot

-Final case

-Differential gear

(1) Removal

1) Hold the front hitch or the front bracket

securely with a crane or stands.

2) Support the front axle with a jack

3) Remove both right-hand and left-hand

tie rods.

4) Remove the pivot metal bolts.

5) Remove the front axle assembly forward.

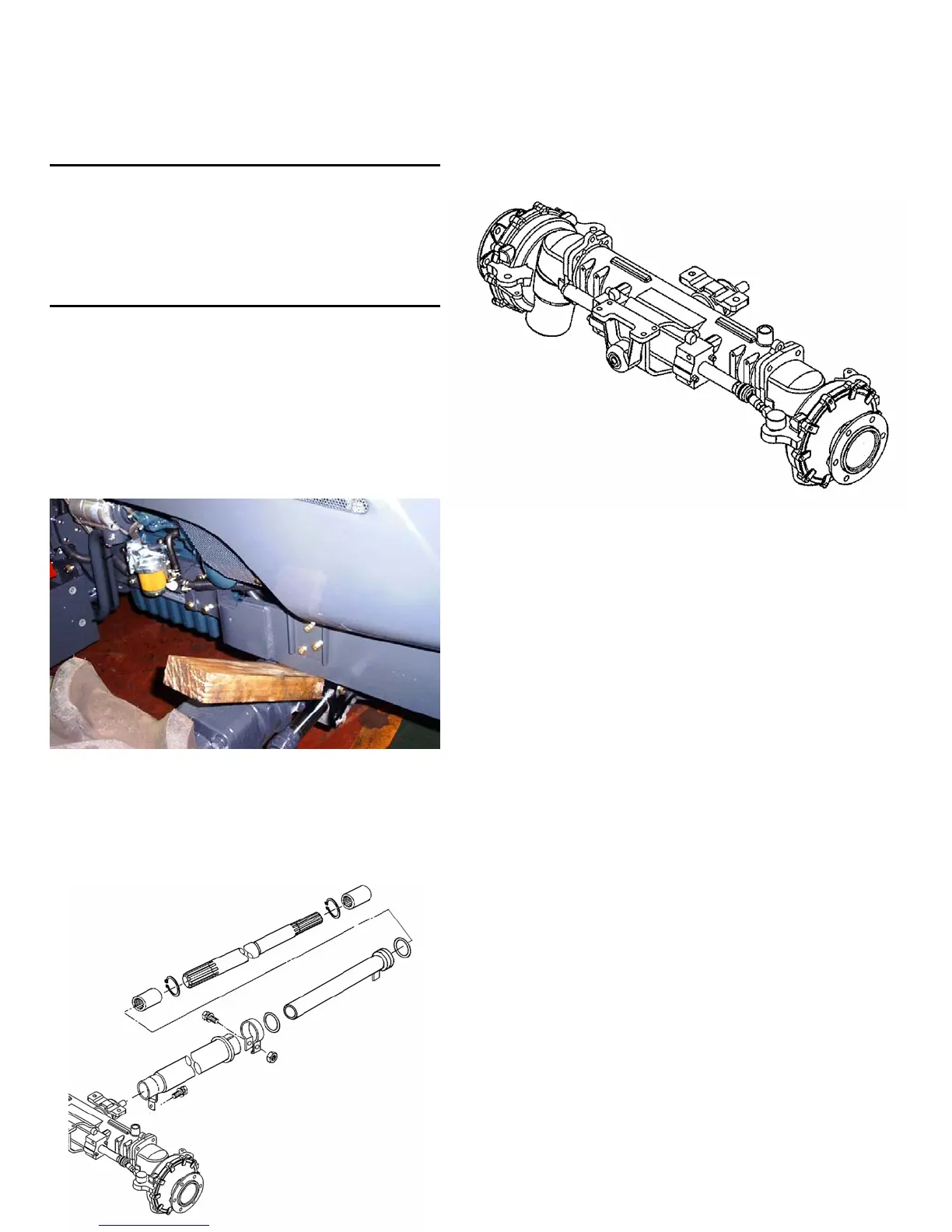

Fig.2-4 Front axle

Note:

When working on the 4WD version,the

drive shaft should be removed ahead of

time.

(2) Installation

1) Install the front axle assembly.

2) Install both pivot metals(supports)

Note:

Apply grease to the bushing and fill the oil seal with

grease ahead of time.Install the oil seal carefully not

to allow its lips to turn over.

3) install both of the right and left tie rod.

2-5

Fig.2-5 Drive shaft

FIG.2-6 Front axle
