i.As the drive pinion and the ring gear make a
pair,be sure not to mate them with other parts
from differential tractors.
ⅱAdjust the shimming to backlash of 0.1-0.2 mm
(0.004-0.008 in). The standard shimming is 0.4mm
(0.016 in) on both sides.
Note:
When reassembling the used pinion
and ring gear,reinstall the same
thickness of shims as was installed
before disassembly in each shimming
position.
h.Backlash adjustment between the
drive pinion and the ring pair(Fig5-
65)
5-34

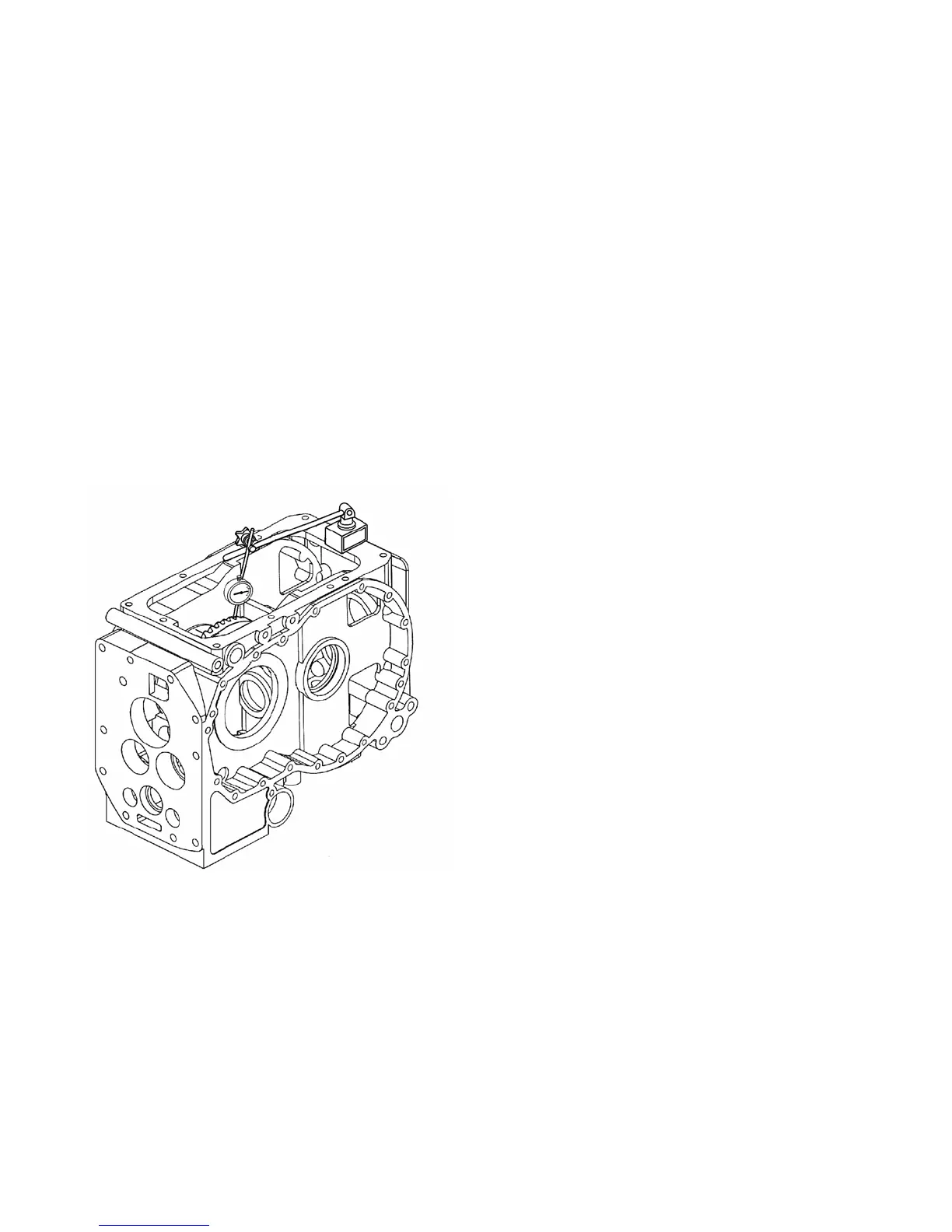

Fig.5-66
