(2) PTO shaft and related parts.
a.Pushing the PTO counter gear end into the bearing until the stop on the gear is securely seated
against the bearing.The seal should be coated with an adhesive (THREE BOND TB1215) on the
circumference before installing.
b.Install the oil seal on the PTO shaft,paying attention to its installed direction.
c.After installation,the slide coupling should smoothly slide and mesh with the designated gears.
5-36

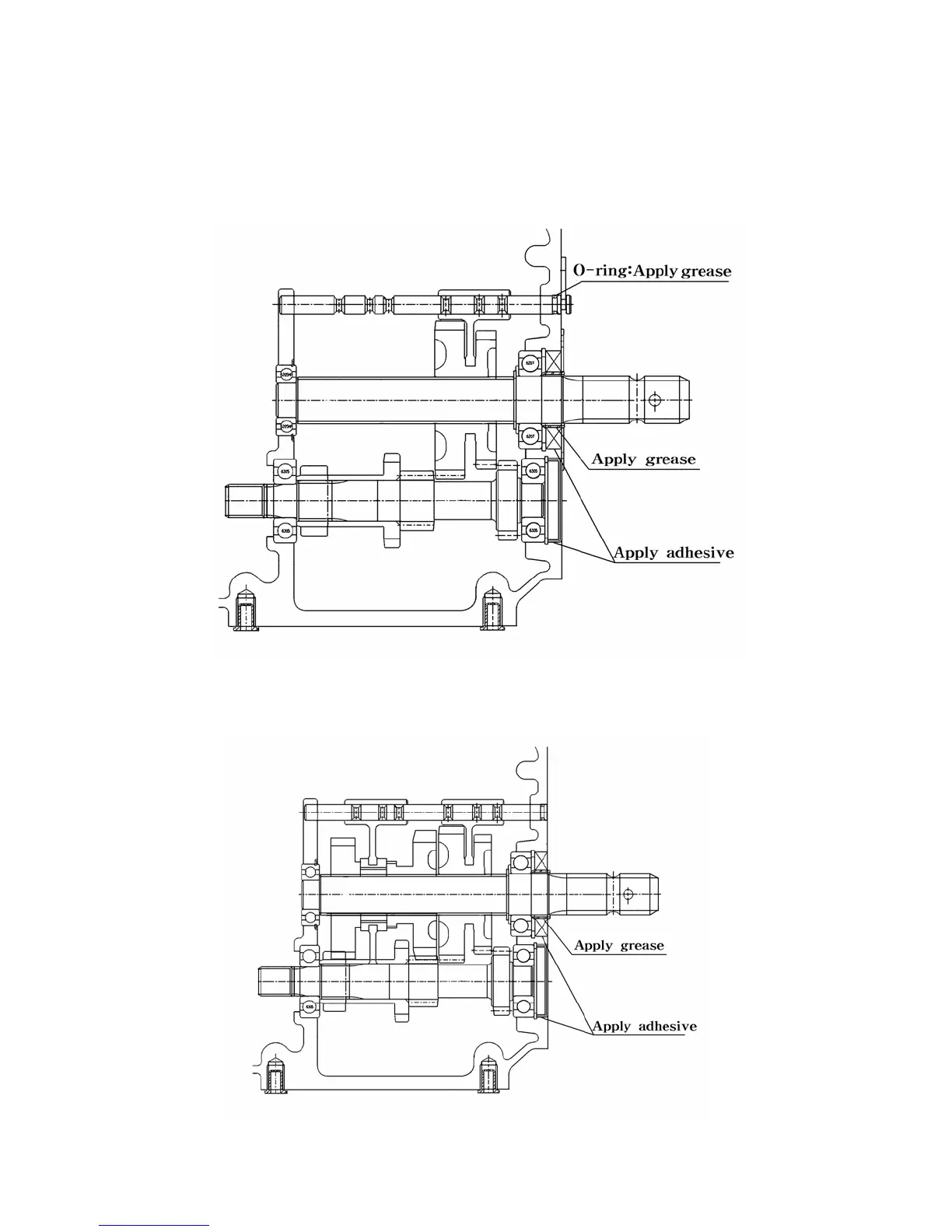

Fig.5-67 PTO 2 speed
Fig.5-68 PTO 4 speed
