2)Right Turn
When the steering control valve shaft is rotated to the right,the control valve moves off center.This
connects the inlet port (P) to one port of each metering pump section and also connects the other port of
each metering pump section to the cylinder.The amount that the spool moves off center depends on
how fast the steering wheel is rotated and also how much effort is required to turn the wheel.

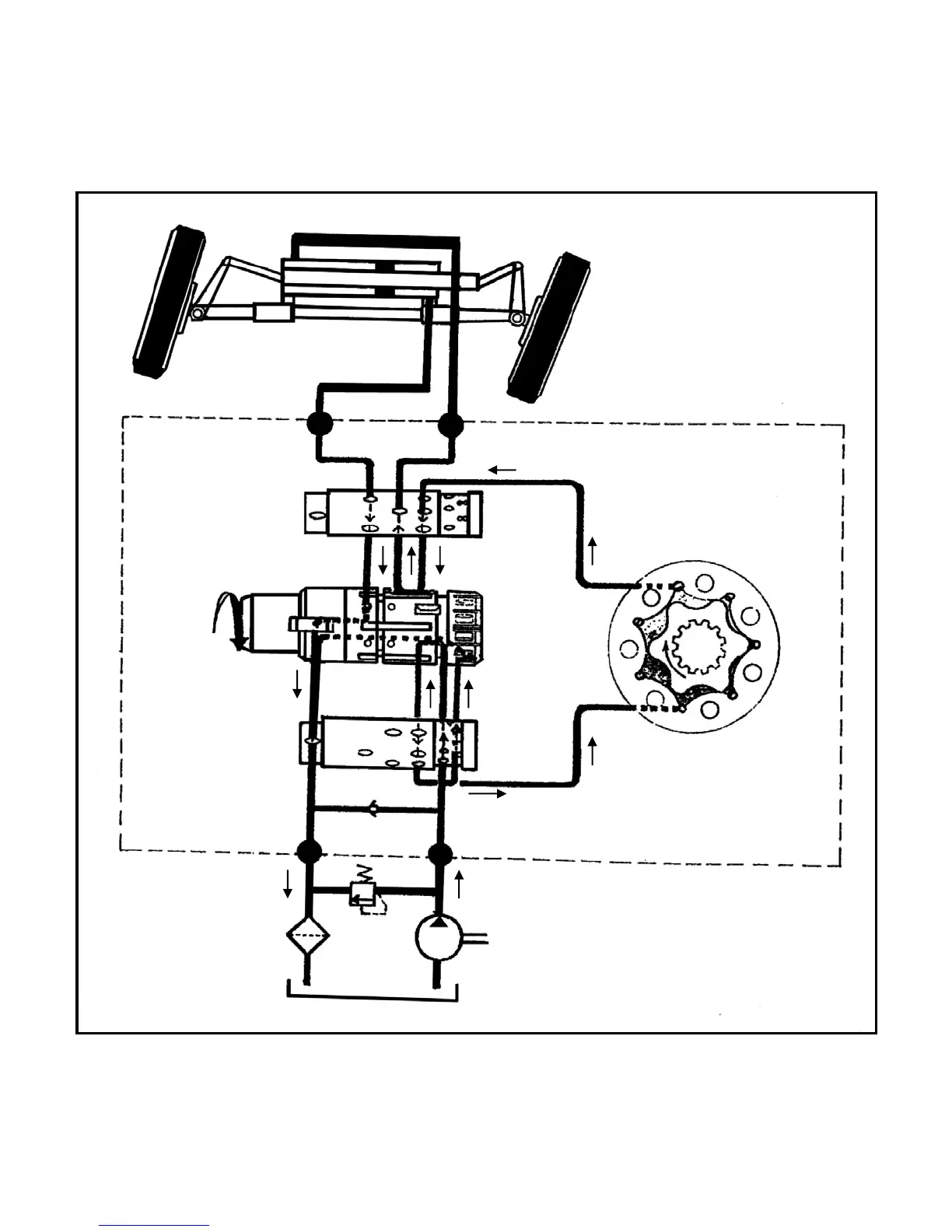

Fig.8-3 Right turn position
