TYM T390 Service Manual

9-9

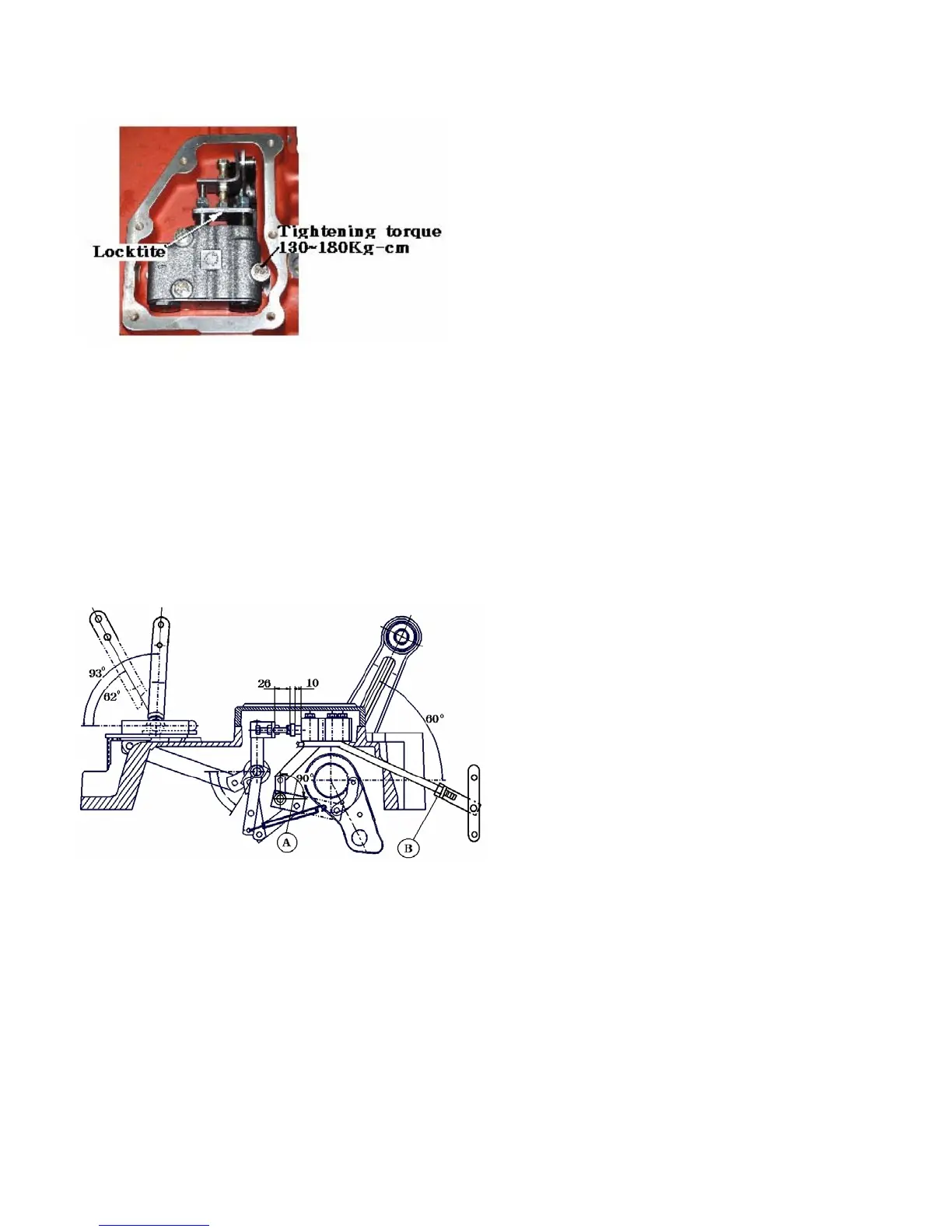

Point 3.Set the feed back link so that there is no
play by the adjusting nut.
Point 4. Apply an locktite to adjusting Nut.
Fig.9-28
Thus the adjustment of the position control
linkage is completed.
2) Adjustment of the draft-control link
mechanism
Point 1.Shift the draft-control lever to the top
position and the position-control lever to
the bottom position.
Point 2. With position (A) is 90° together in
accordance with Shifting the draft-control
lever to the top position and the position-
control lever to the bottom position.
Adjust by loosening the lock nut.
Thus the adjustment of the draft-control link
mechanism is completed.
Fig.9-30

TYM T390 Specifications

General

Brand	TYM
Model	T390
Category	Tractor
Language	English
