TYM T390 Service Manual

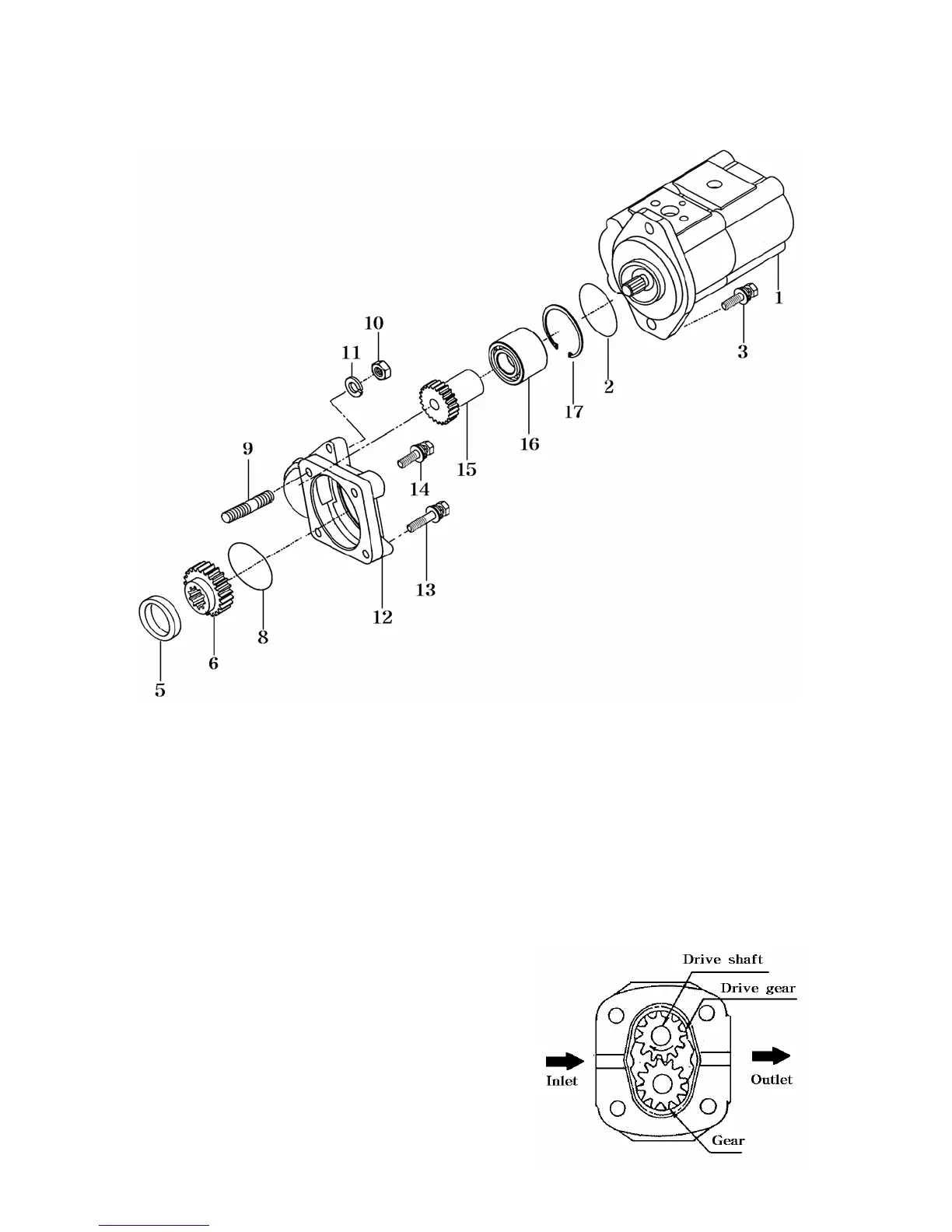

7.1.2 Gear pump (Model: 4110.T390(T400).T430(T450).T431(T451)
9-29
1.Gear pump 2.O-ring(S) 3.Bolt(S) 5.Collar 6.Drive pump(34T) 8.O-ring(S)
9.Stud 10.Nut 11.Washer spring 12.Holder pump 13.Bolt(S)
14.Bolt(S) 15.Drive pump(17T) gear 16.Angular ball bearing 17.Snap ring
7.2 OPERATIONS.
This pump induces fluid from one side
and delivers it from the other side,by
rotating two gears meshed with each
other. The actual delivery is as
mentioned Fig.9-51,Considering the
consequences of fluid Temperature and
volume efficiency in accordance with
revolution speed.
Fig. 9-51 Gear pump
Fig. 9-50 Gear pump
